Home  >  Exploded Diagrams  >  Exploded Diagrams  >  Filters  >  30-102-W019

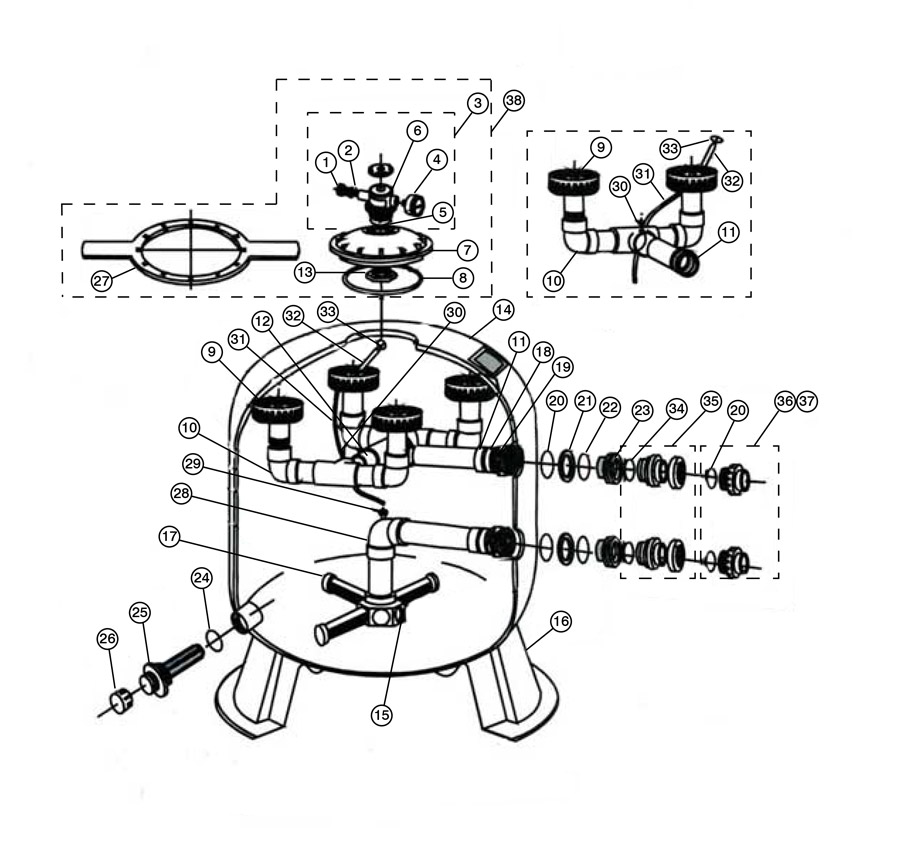

Sand Filter, Pent Triton C/HD TR100C/TR100HD/TR140C Rpl Part

Product Description  ·  Parts  ·  Complete Filter  ·  Valve Options
Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View

Parts

Key Horizon # Description Qty
Key 1 Horizon # 14-110-1732 Description Bleeder, Pentair PacFab, with O-Ring Price Qty RecItem View recommended items
Key 2 Horizon # 90-423-7109 Description O-Ring, 5/16" ID, 3/32" Cross Section, Generic Price Qty RecItem View recommended items
Key 3 Horizon # 31-102-1560 Description Air Relief Assembly, Pentair, TR100C/TR140C/Triton C-3, CLR Price Qty RecItem
Key 3 Horizon # Discontinued Description Air Relief Assembly, Pentair, TR100C/TR140C/Triton C-3 Price Qty RecItem View recommended items
Key 4 Horizon # 14-102-1586 Description Pressure Gauge, Pentair, 1/4"mpt, 0-60psi, Back Mount Price Qty RecItem View recommended items
Key 4 Horizon # 14-110-1002 Description Pressure Gauge, Pentair, 1/4"mpt, 0-60psi, Back Mount Price Qty RecItem View recommended items
Key 4 Horizon # 17-555-1018 Description Pressure Gauge, 1/4"mpt, 0-60psi, Back Mount, Generic Price Qty RecItem View recommended items
Key 5 Horizon # 31-102-1088 Description O-Ring, Pentair TR100C/TR140C, Valve Body to Lid Price Qty RecItem View recommended items
Key 7 Horizon # 31-102-1208 Description Tank Lid, Pentair, TR100C/TR140C/Triton C3,8-1/2", Btr Thd Price Qty RecItem View recommended items
Key 8 Horizon # 35-102-3070 Description O-Ring, PacFab/Pentair Challenger/Waterfall,Trap Lid,Square Price Qty RecItem View recommended items
Key 8 Horizon # Discontinued Description O-Ring, PacFab/Pentair Challenger/Waterfall,Trap Lid,Square Price Qty RecItem View recommended items
Key 8 Horizon # 90-423-2008 Description Square Ring, 8-3/4" ID, 1/4" Cross Section, O-505, Generic Price Qty RecItem View recommended items
Key 9 Horizon # 31-110-1444 Description Diffuser Assembly, Pentair PacFab TR60 Price Qty RecItem View recommended items
Key 10 Horizon # _156355 Description Tee Diff Asy Tr100/140C Price Qty RecItem
Key 11 Horizon # _156344 Description Assembly-Tr100C Inlet Upper Piping Price Qty RecItem
Key 12 Horizon # _156354 Description Pipe Conn Tee Asy Tr140C Price Qty RecItem
Key 13 Horizon # 14-102-2402 Description Internal Locknut, Pentair, 2" Price Qty RecItem View recommended items
Key 13 Horizon # 14-110-1156 Description Internal Locknut, Pentair Purex PacFab, 2" Price Qty RecItem View recommended items
Key 14 Horizon # 31-102-1400 Description Filter Tank, Pentair TR100C, w/Foot Assy, Black Price Qty RecItem View recommended items
Key 14 Horizon # 31-102-1420 Description Filter Tank, Pentair TR140C, w/Foot Assy, Black Price Qty RecItem View recommended items
Key 15 Horizon # 31-110-1510 Description Hub, Pentair PacFab TR100/TR140 Price Qty RecItem View recommended items
Key 16 Horizon # 31-110-1394 Description Tank Base, Pentair PacFab TR100/TAir Connection 100 Price Qty RecItem View recommended items
Key 17 Horizon # 31-102-1550 Description Lateral, Pentair PacFab TA100/TR100, 8 Required Price Qty RecItem
Key 17 Horizon # 31-102-1552 Description Lateral, Pentair PacFab TR140, 8 required Price Qty RecItem View recommended items
Key 17 Horizon # Discontinued Description Lateral, Pentair PacFab TA100/TR100, 8 Required Price Qty RecItem View recommended items
Key 17 Horizon # Discontinued Description Lateral, Pentair PacFab TR140, 8 required Price Qty RecItem View recommended items
Key 19 Horizon # 31-110-1528 Description Spacer, Pentair PacFab Triton II, 2", Internal Price Qty RecItem View recommended items
Key 20 Horizon # 14-110-1590 Description O-Ring, Pentair PacFab Triton II, Bulkhead, O-179, blk Price Qty RecItem View recommended items
Key 20 Horizon # 90-423-5334 Description O-Ring, 2-5/8" ID, 3/16" Cross Section, Generic Price Qty RecItem View recommended items
Key 21 Horizon # Discontinued Description Spacer, Pentair PacFab Triton II, 2", External Price Qty RecItem View recommended items
Key 22 Horizon # 17-110-1514 Description Gasket, Pentair Mytilus/Mitra, Bulkhead, 2-3/8"ID,3"OD Price Qty RecItem View recommended items
Key 22 Horizon # 90-423-2072 Description Gasket, Triton, 2" Bulkhead, Generic Price Qty RecItem View recommended items
Key 23 Horizon # Discontinued Description Bulkhead, Pentair PacFab Triton II, 2" Price Qty RecItem View recommended items
Key 24 Horizon # 14-110-1686 Description O-Ring, Pent PacFab Mitra/Mytilus/Sea Horse, Valve Adpt,O-83 Price Qty RecItem View recommended items
Key 24 Horizon # 90-423-5332 Description O-Ring, 2-3/8" ID, 3/16" Cross Section, Generic Price Qty RecItem View recommended items
Key 25 Horizon # 31-110-1516 Description Sand Drain, Pentair PacFab Triton II, 2" Price Qty RecItem View recommended items
Key 26 Horizon # 31-110-1519 Description Drain Cap, Pentair PacFab Triton II, 1-1/2" Price Qty RecItem View recommended items
Key 26 Horizon # 89-575-2604 Description Cap, Lasco, 1-1/2" Female Pipe Thread Price Qty RecItem View recommended items
Key 27 Horizon # 35-110-1744 Description Wrench, Pentair PacFab, Challenger/Waterfall,Trap Lid,8-1/2" Price Qty RecItem View recommended items
Key 28 Horizon # 31-110-1480 Description Pipe Assembly, Pentair PacFab TR100, Lower Price Qty RecItem View recommended items
Key 28 Horizon # 31-110-1484 Description Pipe Assembly, Pentair PacFab TR140, Lower Price Qty RecItem View recommended items
Key 29 Horizon # 31-110-1470 Description Retainer Vent Tube, Pentair PacFab Triton II, 3/8" Price Qty RecItem View recommended items
Key 30 Horizon # 27-110-1540 Description Screw, Pentair PacFab 2" PVC Slide Valve, 18-8 Price Qty RecItem View recommended items
Key 31 Horizon # 31-110-1432 Description Air Relief Tube, Pentair PacFab TR100, pre 11/99 Price Qty RecItem View recommended items
Key 31 Horizon # 31-110-1434 Description Air Relief Tube, Pentair PacFab TR100, After 11/99 Price Qty RecItem View recommended items
Key 31 Horizon # 31-110-1438 Description Air Relief Tube, Pentair PacFab TR140, pre 11/99 Price Qty RecItem View recommended items
Key 31 Horizon # 31-110-1440 Description Air Relief Tube, Pentair PacFab TR140, After 11/99 Price Qty RecItem View recommended items
Key 32 Horizon # _154507 Description Spcr Tr100C Arlf 6.75 Price Qty RecItem
Key 32 Horizon # _154508 Description Spcr Tr140C Arlf10 5/16 In Price Qty RecItem
Key 33 Horizon # 31-110-1418 Description Strainer, Pentair PacFab TR40, Air Tube, pre 11/99 Price Qty RecItem View recommended items
Key 33 Horizon # 31-110-1420 Description Strainer,PentairTriton II/C-3/TR100C/140C/40,Air Tube,11/99+ Price Qty RecItem View recommended items
Key 34 Horizon # 14-110-1686 Description O-Ring, Pent PacFab Mitra/Mytilus/Sea Horse, Valve Adpt,O-83 Price Qty RecItem View recommended items
Key 34 Horizon # 90-423-5332 Description O-Ring, 2-3/8" ID, 3/16" Cross Section, Generic Price Qty RecItem View recommended items
Key 35 Horizon # 14-110-1542 Description Bulkhead Fitting, Pentair American Products PacFab Price Qty RecItem View recommended items
Key 36 Horizon # 31-110-1536 Description Bulkhead Adapter, Pentair PacFab Triton II, 2", Quantity 2 Price Qty RecItem View recommended items
Key 37 Horizon # 31-110-1538 Description Bulkhead Adapter, Pentair PacFab Triton II, 1-1/2", Qty 2 Price Qty RecItem View recommended items
Key 38 Horizon # 31-110-1574 Description Tank Lid Kit, Pent Triton TR100C/TR140C,8-1/2",Blk,Btr Thd Price Qty RecItem View recommended items

Complete Filter

Key Horizon # Description Qty
Key Horizon # 30-102-1044 Description Sand Filter, Pentair Triton C TR100C, Almond, w/o Valve Price Qty RecItem View recommended items
Key Horizon # 30-102-1046 Description Sand Filter, Pentair Triton C TR140C, Almond, w/o Valve Price Qty RecItem View recommended items
Key Horizon # 30-102-1048 Description Sand Filter, Pentair Triton HD TR100 HD, Black, w/o Valve Price Qty RecItem View recommended items

Valve Options

Key Horizon # Description Qty
Key Horizon # _27505-200-000 Description Multi-Port 2In Fpt Valve White S/M Sand Price Qty RecItem
Key Horizon # _27508-150-000 Description Multi-Port 1.5In Fpt Valve White S/M Sand Price Qty RecItem
Key Horizon # 26-102-1502 Description Multiport Valve, Pacfab/Pentair DE Filter, 2" Price Qty RecItem View recommended items
Key Horizon # 26-102-1504 Description MPV,Pacfab/Pentair Hi-Flow Sand Filter,2" w/Unions,Side Mnt Price Qty RecItem View recommended items
Key Horizon # 26-102-1510 Description MPV, Pacfab/Pentair Sand Filter, 1-1/2" PVC, 6 Position Price Qty RecItem View recommended items
Key Horizon # 26-102-1518 Description Multiport Valve, American Products/Pentair, 2" Thd, 6 Pos Price Qty RecItem View recommended items
Key Horizon # 26-110-1250 Description Backwash Valve, Pentair FullFloXF, w/2" Unions Price Qty RecItem View recommended items
Key Horizon # 26-110-1500 Description Push Pull Valve, Pentair PacFab, 2" Slip, PVC Price Qty RecItem View recommended items
Key Horizon # 26-253-1120 Description Multiport Valve, Praher SM1-PP3, 1-1/2", w/PacFab Plumbing Price Qty RecItem View recommended items
Key Horizon # 26-253-1125 Description Multiport Valve, Praher SM2-PP3, 2", with PacFab Plumbing Price Qty RecItem View recommended items
Key Horizon # 26-253-1220 Description Multiport Valve, Praher SM-20-3, 2" FPT, Sand Price Qty RecItem View recommended items
Key Horizon # 26-605-1210 Description Push Pull Valve, PacFab, 2" Slip, PVC, Generic Price Qty RecItem View recommended items
