Home  >  Exploded Diagrams  >  Exploded Diagrams  >  Valves  >  26-110-W031

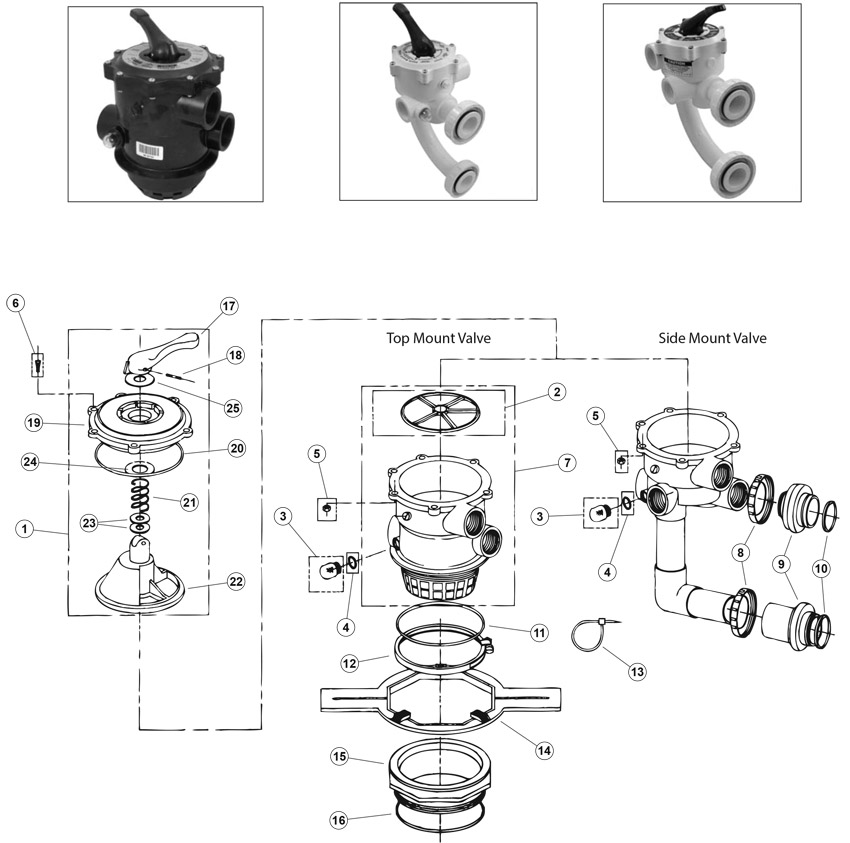

Pentair PacFab Top Mount/ Side Mount 1-1/2" Multiport Valve

Product Description  ·  Parts  ·  Complete Valves  ·  Not Pictured
Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View

Parts

Key Horizon # Description Qty
Key 1 Horizon # 27-110-1470 Description Lid Assembly, Pentair PacFab 1-1/2" Top/Side Mount Valve Price Qty RecItem View recommended items
Key 2 Horizon # 27-110-1354 Description Gasket, Pentair Valve, 5-1/4"OD, 5 Spokes Price Qty RecItem View recommended items
Key 3 Horizon # 27-110-1460 Description Sight Glass, Pentair PacFab 1-1/2"and 2" Multiport Valves Price Qty RecItem View recommended items
Key 4 Horizon # 27-110-1272 Description Gasket, Pentair Multiport Valves, Sight Glass, 5/8"ID, 1"OD Price Qty RecItem View recommended items
Key 5 Horizon # 27-110-1474 Description Nut, Pentair PacFab 1-1/2" and 2" Top/Side Mount Valve Price Qty RecItem View recommended items
Key 6 Horizon # Discontinued Description Bolt, Pentair PacFab 1-1/2" and 2" Top/Side Mount Valve Price Qty RecItem View recommended items
Key 7 Horizon # Discontinued Description Body, Pentair PacFab 1-1/2" Top/Side Mount Valve Price Qty RecItem View recommended items
Key 8 Horizon # 17-110-1529 Description Adapter Nut, Pentair PacFab, 3-1/2" Price Qty RecItem View recommended items
Key 9 Horizon # 17-110-1525 Description Adapter, Pentair PacFab, 2" Price Qty RecItem View recommended items
Key 9 Horizon # 27-110-1480 Description Adapter, Pentair PacFab 1-1/2" Top/Side Mount Valve Price Qty RecItem View recommended items
Key 10 Horizon # 90-423-5332 Description O-Ring, 2-3/8" ID, 3/16" Cross Section, Generic Price Qty RecItem View recommended items
Key 11 Horizon # 90-423-5351 Description O-Ring, 4-3/4" ID, 3/16" Cross Section,Generic O-467 Price Qty RecItem View recommended items
Key 12 Horizon # 31-110-1318 Description Clamp Ring Assembly, Pentair PacFab/Sta-Rite, Plastic Price Qty RecItem View recommended items
Key 14 Horizon # 31-102-2402 Description Adapter Wrench, Pentair TA/TR40, 50, 60, 6" Price Qty RecItem
Key 14 Horizon # 31-110-1398 Description Adapter Wrench, Pentair PacFab TA/TR40, 50, 60 Price Qty RecItem View recommended items
Key 15 Horizon # Discontinued Description Valve Adapter, Pentair PacFab Tagelus/Multiport Valve, 6"thd Price Qty RecItem View recommended items
Key 15 Horizon # 31-110-1330 Description Valve Adapter, Pentair PacFab Tagelus, Clamp Style Price Qty RecItem View recommended items
Key 16 Horizon # 90-423-5256 Description O-Ring, 5-3/4" ID, 1/8" Cross Section, Generic,O-108 Price Qty RecItem View recommended items
Key 17 Horizon # 27-110-1250 Description Handle, Pentair American Products PacFab Multiport Valves Price Qty RecItem View recommended items
Key 18 Horizon # 27-110-1488 Description Handle Pin, Pentair PacFab 1-1/2" & 2" Top/Side Mount Valve Price Qty RecItem View recommended items
Key 19 Horizon # 27-110-1490 Description Cover, Pentair PacFab 1-1/2" Top/Side Mount Valve, White Price Qty RecItem View recommended items
Key 19 Horizon # Discontinued Description Cover, Pentair PacFab 1-1/2" Top/Side Mount Valve, Black Price Qty RecItem View recommended items
Key 20 Horizon # 90-423-5252 Description O-Ring, 5-1/4" ID, 1/8" Cross Section, Generic Price Qty RecItem View recommended items
Key 21 Horizon # 27-110-1498 Description Spring, Pentair PacFab 1-1/2" and 2" Top/Side Mount Valve Price Qty RecItem View recommended items
Key 22 Horizon # 27-110-1500 Description Diverter, Pentair PacFab 1-1/2" Top/Side Mount Valve Price Qty RecItem View recommended items
Key 23 Horizon # 90-423-7212 Description O-Ring, 7/8" ID, 1/8" Cross Section, Generic Price Qty RecItem View recommended items
Key 24 Horizon # 27-110-1220 Description Spring Washer, Pent Am Prod PacFab Multiport Valves Price Qty RecItem View recommended items
Key 25 Horizon # 27-110-1214 Description Washer, Pentair American Products PacFab Multiport Valves Price Qty RecItem View recommended items

Complete Valves

Key Horizon # Description Qty
Key Horizon # 26-102-1510 Description MPV, Pacfab/Pentair Sand Filter, 1-1/2" PVC, 6 Position Price Qty RecItem View recommended items
Key Horizon # 26-253-1170 Description Multiport Valve, Praher SM1-PP2, 1-1/2", w/PacFab Plumbing Price Qty RecItem View recommended items
Key Horizon # 26-253-1120 Description Multiport Valve, Praher SM1-PP3, 1-1/2", w/PacFab Plumbing Price Qty RecItem View recommended items
Key Horizon # 26-102-1005 Description Multiport Valve, Pent DE, Side Mount, 1-1/2", w/Plumb, 6 Pos Price Qty RecItem View recommended items

Not Pictured

Key Horizon # Description Qty
Key Horizon # 27-110-1484 Description Clamp Ring, Pentair PacFab 1-1/2" Top/Side Mount Valve Price Qty RecItem View recommended items
Key Horizon # 89-423-1007 Description Stainless Clamp, 1-3/4" to 2-3/4" Price Qty RecItem View recommended items
