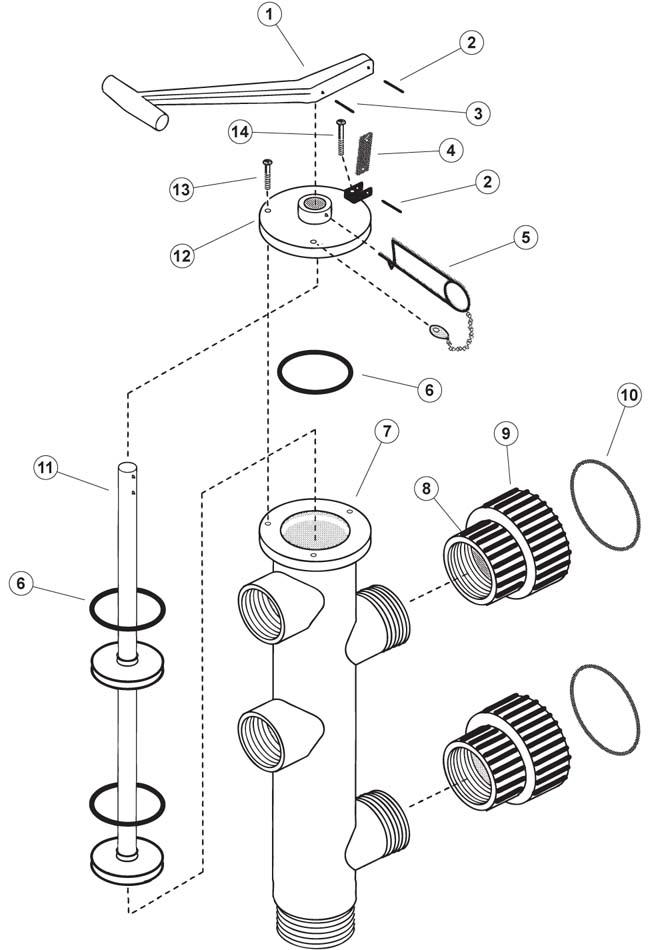

Sta-Rite 1-1/2" & 2" Bronze Push Pull Valve WC212-135D/136D

Product Description  ·  Parts  ·  Not Pictured
Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View

Product Description

Note:

-Part #27-102-1370 includes key #1, 2, 4, 6, 12, 13, 14 and 15

Parts

Key Horizon # Description Qty
Key 1 Horizon # 27-102-1360 Description Lever Handle, Pentair Sta-Rite WC212-135D/14821 Price Qty RecItem View recommended items
Key 2 Horizon # 27-102-1348 Description Spring Pin,Pent StaRite WC212-135D/14821/14936, 1/8" x 9/16" Price Qty RecItem View recommended items
Key 3 Horizon # Discontinued Description Spring Pin,Pentair Sta-Rite WC212-135D/14821/14936,1/8"x7/8" Price Qty RecItem
Key 4 Horizon # 27-102-1366 Description Linkage, Pentair Sta-Rite WC212-135D/14821 Price Qty RecItem View recommended items
Key 5 Horizon # 27-102-1310 Description Safety Pin, Pentair Sta-Rite WC212-134P Valve Price Qty RecItem View recommended items
Key 6 Horizon # 90-423-5322 Description O-Ring, 1-1/4" ID, 3/16" Cross Section, Generic Price Qty RecItem View recommended items
Key 6 Horizon # 90-423-5326 Description O-Ring, 1-5/8" ID, 3/16" Cross Section, Generic Price Qty RecItem View recommended items
Key 8 Horizon # 89-102-1014 Description Union Adapter, 2" Female Buttress Thread Price Qty RecItem View recommended items
Key 8 Horizon # Discontinued Description Union Adapter, 1-1/2" Female Pipe Thread Price Qty RecItem View recommended items
Key 9 Horizon # 89-102-1015 Description Union, Sta-Rite/Pentair, Nut, 2" Female Buttress Thread Price Qty RecItem View recommended items
Key 9 Horizon # 89-102-1059 Description Union, Sta-Rite/Pentair, Nut, 2" Female Buttress Thread Price Qty RecItem View recommended items
Key 10 Horizon # 90-423-5231 Description O-Ring, 2-5/8" ID, 1/8" Cross Section, Generic Price Qty RecItem View recommended items
Key 11 Horizon # 27-102-1344 Description Piston Assy,Pentair StaRite 14821/WC212-135D,w/O-Ring,1-1/2" Price Qty RecItem View recommended items
Key 12 Horizon # Discontinued Description Index Plate, Pentair Sta-Rite WC212-135D/14821, 1-1/2" Valve Price Qty RecItem
Key 12 Horizon # Discontinued Description Index Plate, Pentair Sta-Rite WC212-135D/14821, 2" Valve Price Qty RecItem
Key 13 Horizon # 27-102-1350 Description Screw, Pentair Sta-Rite 14821/WC212-135D, 10-32 x 3/8" Price Qty RecItem View recommended items
Key 14 Horizon # 27-102-1358 Description Screw, Pentair Sta-Rite 14821/WC212-135D, 10-32 Price Qty RecItem
Key Horizon # Discontinued Description Handle Kit, Pentair Sta-Rite WC212-135D/14821 Valve, 1-1/2" Price Qty RecItem

Not Pictured

Key Horizon # Description Qty
Key Horizon # 90-423-7014 Description O-Ring, 1/2" ID, 1/16" Cross Section, Generic Price Qty RecItem View recommended items
