Home  >  Exploded Diagrams  >  Exploded Diagrams  >  Filters  >  16-110-W059

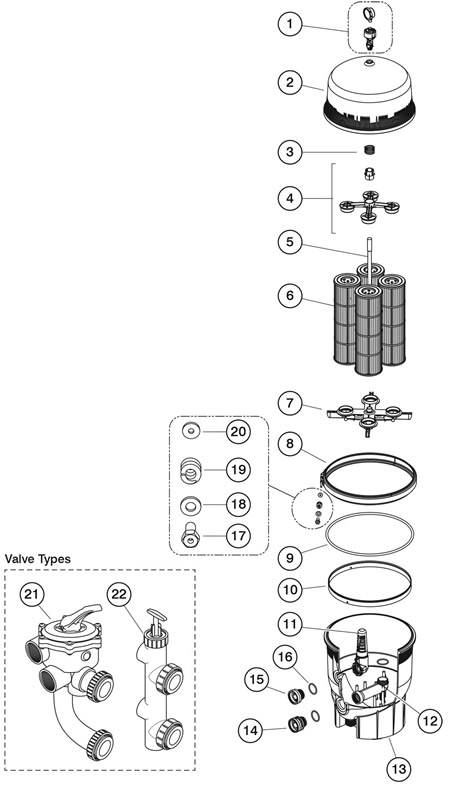

DE Filter, Pentair, Quad 60, 80 & 100

Product Description  ·  Parts  ·  Complete Valves  ·  Not Pictured  ·  Tools  ·  Complete Filter
Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View

Parts

Key Horizon # Description Qty
Key 1 Horizon # 14-102-2232 Description Air Relief Valve, Pentair American Product, Manual Price Qty RecItem
Key 1 Horizon # Discontinued Description Air Relief Valve, Pentair American Products Price Qty RecItem View recommended items
Key 1 Horizon # 17-110-1025 Description Air Relief, Pent Am Prod/Purex/PacFab, Manual, w/Gauge Price Qty RecItem View recommended items
Key 2 Horizon # 17-110-1313 Description Tank Lid, Pentair American Products CLN/CLR, 320 sqft Price Qty RecItem View recommended items
Key 2 Horizon # 17-110-1321 Description Tank Lid, Pentair American Products CLN/CLR, 420 sqft, White Price Qty RecItem View recommended items
Key 2 Horizon # 17-110-1326 Description Tank Lid, Pentair American Products CLN/CLR, 520 sqft Price Qty RecItem View recommended items
Key 3 Horizon # 17-110-1236 Description Compression Spring, Pentair American Products CLN/CLR/DE Price Qty RecItem View recommended items
Key 4 Horizon # 17-110-1242 Description Manifold, Pent Am Prod CLN/CLR/DE, 240 sqft, Top Price Qty RecItem View recommended items
Key 4 Horizon # 17-110-1245 Description Manifold, Pent Am Prod CLN/CLR, 320-520 sqft, Top Price Qty RecItem View recommended items
Key 5 Horizon # 17-110-1254 Description Air Bleed Assy, Pent Am Prod CLN/CLR, 320 sqft Price Qty RecItem View recommended items
Key 5 Horizon # 17-110-1256 Description Air Bleed Assy, Pent Am Prod CLN/CLR, 420 sqft, after 1998 Price Qty RecItem View recommended items
Key 5 Horizon # 17-110-1263 Description Air Bleed Assy, Pent Am Prod CLN/CLR, 520 sqft Price Qty RecItem View recommended items
Key 6 Horizon # 14-102-1336 Description Grid Element, Single, Pentair Quad DE 80, 4 Required Price Qty RecItem View recommended items
Key 6 Horizon # 14-102-1337 Description Grid Element, Single, Pentair Quad DE 60, 4 Required Price Qty RecItem View recommended items
Key 6 Horizon # 14-102-1400 Description DE Grid Element, Pentair Quad DE 100, 4 Required Price Qty RecItem View recommended items
Key 6 Horizon # Discontinued Description Grid Element, Pentair, Quad DE 100, 4 required Price Qty RecItem View recommended items
Key 6 Horizon # Discontinued Description Grid Element, Pentair, Quad DE 80, 4 required Price Qty RecItem View recommended items
Key 6 Horizon # 14-110-1237 Description Grid Element, Pentair, Quad DE 60, 4 required Price Qty RecItem View recommended items
Key 6 Horizon # 17-175-2400 Description Cartridge, 15sqft,3" ot,3" ob,6-1/4",20-3/4",MeshDE Price Qty RecItem View recommended items
Key 6 Horizon # 17-175-2405 Description Cartridge, 20sqft,3" ot,3" ob,6-1/4",26-3/4",MeshDE Price Qty RecItem View recommended items
Key 6 Horizon # 17-175-2410 Description Cartridge, 25sqft,3" ot,3" ob,6-1/4",32-3/4",MeshDE Price Qty RecItem View recommended items
Key 7 Horizon # 14-110-1239 Description Manifold, Pentair Quad, Bottom Price Qty RecItem View recommended items
Key 8 Horizon # 14-110-1636 Description Clamp Ring, Pentair PacFab FNS/FSH, Tank Body Price Qty RecItem View recommended items
Key 9 Horizon # 14-110-1250 Description O-Ring, Pentair Quad, Tank Body Price Qty RecItem View recommended items
Key 9 Horizon # 90-423-6106 Description O-Ring, Tank Body, Quad DE Replacement, Generic Price Qty RecItem View recommended items
Key 10 Horizon # 14-110-1580 Description Back Up Ring, Pent Am Prod PacFab FNS/Quad DE/CC Price Qty RecItem View recommended items
Key 11 Horizon # 17-110-1285 Description Baffle/Bulkhead Assy, Pent Am Prod CLN/CLR/DE Price Qty RecItem View recommended items
Key 12 Horizon # 14-110-1252 Description Outlet Pipe Assembly, Pentair Quad Price Qty RecItem View recommended items
Key 13 Horizon # _195999 Description Btm Asy Quad De Rplcmnt Price Qty RecItem
Key 14 Horizon # Discontinued Description Bulkhead Fitting, Pentair Quad, Bottom Price Qty RecItem View recommended items
Key 15 Horizon # 14-102-2414 Description Bulkhead, Pentair FNS, 2-3/8", After 11/98 Price Qty RecItem
Key 15 Horizon # 14-110-1800 Description Bulkhead, Pentair Am Products PacFab, 2-3/8", After 11/98 Price Qty RecItem View recommended items
Key 16 Horizon # 14-110-1540 Description O-Ring, Pentair PacFab FNS Plus, Bulkhead, After 10/04 Price Qty RecItem View recommended items
Key 16 Horizon # 90-423-5331 Description O-Ring, 2-1/4" ID, 3/16" Cross Section, Generic Price Qty RecItem View recommended items
Key 17 Horizon # Discontinued Description Nut, Pentair PacFab FSH/FNS/Quad Price Qty RecItem View recommended items
Key 18 Horizon # 14-110-1714 Description Washer, Pentair PacFab FSH/FNS/Quad, Large ID Price Qty RecItem View recommended items
Key 19 Horizon # 14-110-1712 Description Spring, Pentair PacFab FSH/FNS/Quad Price Qty RecItem View recommended items
Key 20 Horizon # 14-102-2400 Description Washer, Pentair CNCP/FNSP/Quad DE/FullFloXF,Sm ID,For Clamp Price Qty RecItem View recommended items
Key 20 Horizon # 14-110-1710 Description Washer, Pentair PacFab FSH/FNS/Quad, Small ID Price Qty RecItem View recommended items
Key Horizon # 17-110-1265 Description Repl Screen Cap, Pentair Quad/EasyClean/CNC Plus, Air Bleed Price Qty RecItem View recommended items

Complete Valves

Key Horizon # Description Qty
Key 21 Horizon # 26-102-1504 Description MPV,Pacfab/Pentair Hi-Flow Sand Filter,2" w/Unions,Side Mnt Price Qty RecItem View recommended items
Key 21 Horizon # 26-102-1510 Description MPV, Pacfab/Pentair Sand Filter, 1-1/2" PVC, 6 Position Price Qty RecItem View recommended items
Key 21 Horizon # 26-102-1518 Description Multiport Valve, American Products/Pentair, 2" Thd, 6 Pos Price Qty RecItem View recommended items
Key 21 Horizon # 26-253-1120 Description Multiport Valve, Praher SM1-PP3, 1-1/2", w/PacFab Plumbing Price Qty RecItem View recommended items
Key 21 Horizon # 26-253-1125 Description Multiport Valve, Praher SM2-PP3, 2", with PacFab Plumbing Price Qty RecItem View recommended items
Key 22 Horizon # 26-110-1250 Description Backwash Valve, Pentair FullFloXF, w/2" Unions Price Qty RecItem View recommended items
Key 22 Horizon # 26-110-1500 Description Push Pull Valve, Pentair PacFab, 2" Slip, PVC Price Qty RecItem View recommended items

Not Pictured

Key Horizon # Description Qty
Key Horizon # Discontinued Description Drain Plug, Pentair American Products Clean and Clear/Quad Price Qty RecItem View recommended items
Key Horizon # 14-110-1254 Description Adapter Kit, Pentair Quad, 2" x 2-1/2" Price Qty RecItem View recommended items
Key Horizon # 14-110-1256 Description Diverter Kit, Pentair Quad Price Qty RecItem View recommended items
Key Horizon # 14-102-1588 Description Drain Plug, Pentair American Products Clean and Clear/Quad Price Qty RecItem View recommended items

Tools

Key Horizon # Description Qty
Key Horizon # 99-615-1020 Description Tool, Socket, Double-Hex, 9/16 and 7/8, with 1.48well Price Qty RecItem View recommended items

Complete Filter

Key Horizon # Description Qty
Key Horizon # 13-102-1020 Description DE Filter, Pentair Quad DE 60, 120 GPM, 60 sqft Price Qty RecItem View recommended items
Key Horizon # 13-102-1025 Description DE Filter, Pentair Quad DE 80, 160 GPM, 80 sqft Price Qty RecItem View recommended items
Key Horizon # 13-102-1030 Description DE Filter, Pentair Quad DE 100, 160 GPM, 100 sqft Price Qty RecItem View recommended items
