Home  >  Exploded Diagrams  >  Exploded Diagrams  >  Filters  >  16-110-W051

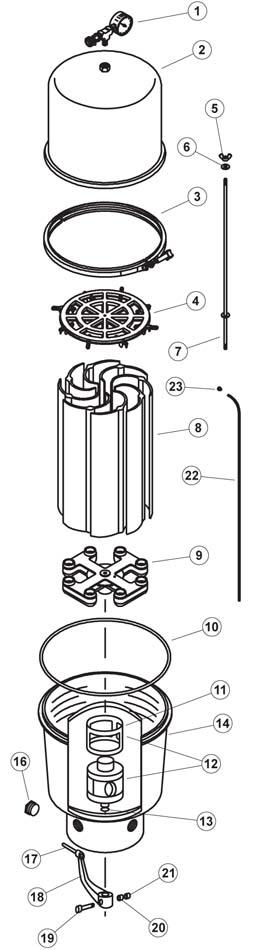

DE Filter, Pentair/Purex, SM/SMBW 4000, 4024-4060

Product Description  ·  Parts  ·  Tools
Click to ViewClick to ViewClick to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View

Product Description

Note:

-Part #14-110-1092 - used on filters manufactured before 1998



-Part #14-110-1092 - used on filters manufactured after 1998

Parts

Key Horizon # Description Qty
Key 1 Horizon # 14-102-1586 Description Pressure Gauge, Pentair, 1/4"mpt, 0-60psi, Back Mount Price Qty RecItem View recommended items
Key 1 Horizon # 14-102-2154 Description Manual Air Relief Valve, Pentair, Without Clamp Price Qty RecItem View recommended items
Key 1 Horizon # 14-102-2402 Description Internal Locknut, Pentair, 2" Price Qty RecItem View recommended items
Key 1 Horizon # 14-110-1002 Description Pressure Gauge, Pentair, 1/4"mpt, 0-60psi, Back Mount Price Qty RecItem View recommended items
Key 1 Horizon # 14-110-1004 Description Tee, Pentair Purex CFM/CF with SMBW, Brass, 1/4" Price Qty RecItem View recommended items
Key 1 Horizon # 14-110-1010 Description Air Relief Valve, Pentair Purex CFM/CF with SMBW Price Qty RecItem View recommended items
Key 1 Horizon # 14-110-1028 Description Air Relief Valve Kit, Pentair Purex CFM/CFW/SMBW Price Qty RecItem View recommended items
Key 1 Horizon # 14-110-1150 Description Pressure Gauge Assy,Pentair SMBW,1/4"mpt,0-60psi,Bttm Mount Price Qty RecItem View recommended items
Key 1 Horizon # 14-110-1152 Description Nipple, Pentair Purex CFM/SMBW, 1/4" Price Qty RecItem View recommended items
Key 1 Horizon # 14-110-1154 Description Manual Air Relief Valve, Pentair Purex PacFab, w/o Clamp Price Qty RecItem View recommended items
Key 1 Horizon # 14-110-1156 Description Internal Locknut, Pentair Purex PacFab, 2" Price Qty RecItem View recommended items
Key 1 Horizon # 14-110-1600 Description Manual Air Relief Valve, Pentair PacFab Purex, with Clamp Price Qty RecItem View recommended items
Key 1 Horizon # 17-555-1018 Description Pressure Gauge, 1/4"mpt, 0-60psi, Back Mount, Generic Price Qty RecItem View recommended items
Key 2 Horizon # Discontinued Description Tank Lid, Pentair Purex CFM/SMBW-4024 Price Qty RecItem View recommended items
Key 2 Horizon # Discontinued Description Tank Lid, Pentair Purex CFM/SMBW-4036 Price Qty RecItem View recommended items
Key 2 Horizon # Discontinued Description Tank Lid, Pentair Purex CFM/SMBW-4048 Price Qty RecItem View recommended items
Key 2 Horizon # Discontinued Description Tank Lid, Pentair Purex CFM/SMBW-4060 Price Qty RecItem View recommended items
Key 3 Horizon # 14-110-1092 Description Filter/Pump Knob, Pentair Purex PacFab, Clamp Ring, Pre '98 Price Qty RecItem View recommended items
Key 3 Horizon # Discontinued Description Clamp Ring Knob, Pentair Purex CFM/CF w/ 800/SMBW, After '98 Price Qty RecItem View recommended items
Key 3 Horizon # 14-110-1166 Description Clamp Ring, Pentair Purex SMBW, with Knob Price Qty RecItem View recommended items
Key 4 Horizon # 14-110-1024 Description Holding Wheel, Pentair Purex SMB with AP Separation Tank Price Qty RecItem View recommended items
Key 4 Horizon # 14-110-1168 Description Holding Wheel, Pentair Purex SMBW-4060 Price Qty RecItem View recommended items
Key 5 Horizon # 14-110-1090 Description Wing Nut, Pentair Purex CFM/CF with 800/SMBW, 1/4-20 Price Qty RecItem View recommended items
Key 6 Horizon # 35-110-1658 Description Washer, Pentair PacFab, Pump/Filter, 5/16" Price Qty RecItem View recommended items
Key 7 Horizon # 14-110-1070 Description Center Rod, Pentair Purex SMBW-2036/4036, 27", Staked Price Qty RecItem View recommended items
Key 7 Horizon # 14-110-1074 Description Center Rod, Pentair Purex SMBW-4060, 39", Staked Price Qty RecItem View recommended items
Key 7 Horizon # 14-110-1170 Description Center Rod, Pentair Purex SMBW-2024/4024, 21", Staked Price Qty RecItem View recommended items
Key 7 Horizon # 14-110-1174 Description Center Rod, Pentair Purex SMBW-2048/4048, 33", Staked, Price Qty RecItem View recommended items
Key 8 Horizon # 14-102-1330 Description DE grid, Pentair Purex SMBW, 24" Price Qty RecItem View recommended items
Key 8 Horizon # 14-176-1050 Description Diatomaceous Earth Grid, Purex, Full, 12" for 24 sqft Price Qty RecItem View recommended items
Key 8 Horizon # 14-176-1055 Description Diatomaceous Earth Grid, Purex, Full, 18" for 36 sqft Price Qty RecItem View recommended items
Key 8 Horizon # 14-176-1060 Description Diatomaceous Earth Grid, Purex, Full, 24" for 48 sqft Price Qty RecItem View recommended items
Key 8 Horizon # 14-176-1065 Description Diatomaceous Earth Grid, Purex Full, 30" for 60 sqft Price Qty RecItem View recommended items
Key 8 Horizon # 14-775-1050 Description Grid DE, Pleatco, 10-3/4" x 13-5/16" for 24 sqft, Purex Price Qty RecItem View recommended items
Key 8 Horizon # 14-775-1055 Description Grid DE, Pleatco, 10-3/4" x 19-3/8" for 36 sqft, Purex Price Qty RecItem View recommended items
Key 8 Horizon # Discontinued Description Grid DE, Pleatco, 10-3/4" x 25-3/8" for 48 sqft, Purex Price Qty RecItem View recommended items
Key 8 Horizon # Discontinued Description Grid DE, Pleatco, 10-3/4" x 31-5/16" for 60 sqft, Purex Price Qty RecItem View recommended items
Key 9 Horizon # 14-110-1030 Description Manifold, Pentair Purex SMBW 2000 Price Qty RecItem View recommended items
Key 10 Horizon # 14-110-1178 Description O-Ring, Pentair Purex/PacFab CFM/FNS/SM4000, Tank Body,O-333 Price Qty RecItem View recommended items
Key 11 Horizon # 14-110-1180 Description Rotor Valve Seal, Pentair Purex SMBW Price Qty RecItem View recommended items
Key 12 Horizon # 14-110-1182 Description Rotor Valve, Pentair Purex SMBW Price Qty RecItem View recommended items
Key 13 Horizon # 90-423-7113 Description O-Ring, 9/16" ID, 3/32" Cross Section, Generic Price Qty RecItem View recommended items
Key 14 Horizon # 14-110-1186 Description Tank Body, Pentair Purex SMBW Price Qty RecItem View recommended items
Key 14 Horizon # Discontinued Description Tank Body, Pentair Purex SMBW Price Qty RecItem View recommended items
Key 16 Horizon # 14-110-1190 Description PVC Plug, Pentair Purex CFM/SMBW Price Qty RecItem View recommended items
Key 17 Horizon # Discontinued Description Handle, Pentair Purex SMBW Price Qty RecItem View recommended items
Key 18 Horizon # 14-110-1194 Description Extension Handle, Pentair Purex SMBW Price Qty RecItem View recommended items
Key 19 Horizon # Discontinued Description Bolt, Pentair American Products Bronze, Volute, 20 x 1-3/4" Price Qty RecItem View recommended items
Key 20 Horizon # 14-110-1198 Description Washer, Pent Purex PacFab/EQ Series, Split Lock, 1/4" Price Qty RecItem View recommended items
Key 21 Horizon # 35-110-2098 Description Nut,Pentair Purex Whisperflo/IntelliFlo,Var. Filters, 1/4-20 Price Qty RecItem
Key 22 Horizon # 14-110-1096 Description Tubing Vent, Pentair Purex CFM/CF with 800/SMBW Price Qty RecItem View recommended items
Key 23 Horizon # 14-110-1098 Description Tubing Vent Screen, Pentair Purex CFM/CF with 800/SMBW Price Qty RecItem View recommended items

Tools

Key Horizon # Description Qty
Key Horizon # 99-615-1006 Description Tool, Clamp Knob Socket, 4-Lobe, w/1/4" Socket Bit Adapter Price Qty RecItem View recommended items
Key Horizon # 99-615-1022 Description Tool, Socket, Quad-Side A/Solar Side B Price Qty RecItem View recommended items
