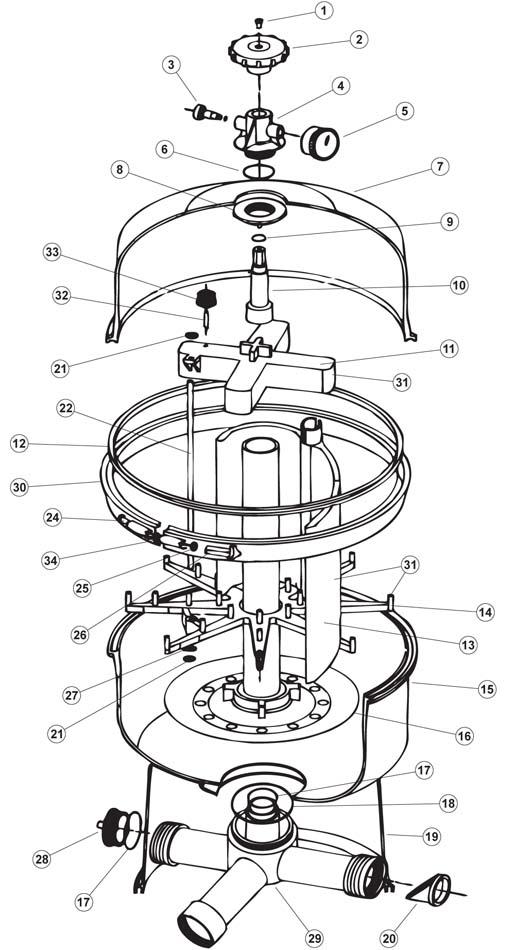

DE Filter, Pentair/PacFab, Star Polymeric ST35,40,50,80

Product Description  ·  Parts
Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View

Product Description

Note:

-Part #14-110-2032 and 14-110-2035 - grid assembly/complete consists of key #11, 13, 14, and 21



-Part #14-110-2030 - P/N 194880 band assembly/complete consists of key #23, 24, 25, 26, and 34

Parts

Key Horizon # Description Qty
Key 1 Horizon # Discontinued Description Screw, Pentair PacFab ST, 12-1" Price Qty RecItem
Key 2 Horizon # Discontinued Description Engagement Shaft Knob, Pentair PacFab ST Price Qty RecItem View recommended items
Key 3 Horizon # 14-110-1926 Description Air Bleed Screw, Pentair PacFab ST, Plastic Price Qty RecItem View recommended items
Key 4 Horizon # Discontinued Description Adapter, Pentair PacFab ST, Tank Lid Price Qty RecItem View recommended items
Key 5 Horizon # 14-102-1586 Description Pressure Gauge, Pentair, 1/4"mpt, 0-60psi, Back Mount Price Qty RecItem View recommended items
Key 5 Horizon # 14-110-1002 Description Pressure Gauge, Pentair, 1/4"mpt, 0-60psi, Back Mount Price Qty RecItem View recommended items
Key 6 Horizon # Discontinued Description O-Ring, Pent PacFab Star, Pressure Gauge, O-26 Price Qty RecItem View recommended items
Key 6 Horizon # 90-423-5328 Description O-Ring, 1-7/8" ID, 3/16" Cross Section, Generic Price Qty RecItem View recommended items
Key 7 Horizon # Discontinued Description Tank Lid, Pentair PacFab ST35, Tan Price Qty RecItem View recommended items
Key 7 Horizon # Discontinued Description Tank Lid, Pentair PacFab ST40/50, Tan Price Qty RecItem View recommended items
Key 7 Horizon # Discontinued Description Tank Lid, Pentair PacFab ST35, Black Price Qty RecItem View recommended items
Key 7 Horizon # Discontinued Description Tank Lid, Pentair PacFab ST40/50, Black Price Qty RecItem View recommended items
Key 7 Horizon # Discontinued Description Tank Lid, Pentair PacFab ST80, Black Price Qty RecItem View recommended items
Key 8 Horizon # 14-110-1952 Description Nut, Pentair PacFab ST, 1-7/8" Price Qty RecItem View recommended items
Key 9 Horizon # 90-423-7212 Description O-Ring, 7/8" ID, 1/8" Cross Section, Generic Price Qty RecItem View recommended items
Key 10 Horizon # Discontinued Description Engagement Shaft, Pentair PacFab ST35 Price Qty RecItem View recommended items
Key 10 Horizon # Discontinued Description Engagement Shaft, Pentair PacFab ST40/50 Price Qty RecItem View recommended items
Key 11 Horizon # Discontinued Description Manifold, Pentair PacFab ST35/40/50 Price Qty RecItem View recommended items
Key 12 Horizon # 14-110-1969 Description O-Ring, PentairPacFab Mytilus/Star, 12" Tank Body, O-99P Price Qty RecItem View recommended items
Key 13 Horizon # 14-110-3290 Description DE Grid, Pentair/PacFab, ST35, 13-1/8" x 6-1/2", 4 req Price Qty RecItem View recommended items
Key 13 Horizon # 14-110-3293 Description DE Grid, Pentair/PacFab, ST40/50, 19-3/4" x 6-1/2", 4 req Price Qty RecItem View recommended items
Key 13 Horizon # 14-110-3296 Description DE Grid, Pentair/PacFab, ST80, 26-1/4" x 6-1/2", 4 req Price Qty RecItem View recommended items
Key 14 Horizon # 14-110-1972 Description Retainer, Pentair PacFab ST Price Qty RecItem
Key 15 Horizon # Discontinued Description Tank Body, Pentair PacFab Mytilus/ST40/50, Tan Price Qty RecItem View recommended items
Key 15 Horizon # Discontinued Description Tank Body, Pentair PacFab ST35, Tan Price Qty RecItem View recommended items
Key 15 Horizon # Discontinued Description Tank Body, Pentair PacFab ST35, Black Price Qty RecItem View recommended items
Key 15 Horizon # Discontinued Description Tank Body, Pentair PacFab Mytilus/ST40/50, Black Price Qty RecItem View recommended items
Key 15 Horizon # Discontinued Description Tank Body, Pentair PacFab Mytilus/ST80, Black Price Qty RecItem View recommended items
Key 16 Horizon # Discontinued Description Center Pipe, Pentair PacFab ST35, w/Diffuser, O-Ring Price Qty RecItem View recommended items
Key 16 Horizon # Discontinued Description Center Pipe, Pentair PacFab ST40/50, with Diffuser, O-Ring Price Qty RecItem View recommended items
Key 16 Horizon # Discontinued Description Center Pipe, Pentair PacFab ST80, w/Diffuser, O-Ring Price Qty RecItem View recommended items
Key 17 Horizon # 90-423-5224 Description O-Ring, 1-3/4" ID, 1/8" Cross Section, Generic Price Qty RecItem View recommended items
Key 18 Horizon # 90-423-5341 Description O-Ring, 3-1/2" ID, 3/16" Cross Section, Generic Price Qty RecItem View recommended items
Key 19 Horizon # Discontinued Description Tank Base, Pentair PacFab Mytilus/ST Price Qty RecItem View recommended items
Key 20 Horizon # Discontinued Description Check Valve, Pentair PacFab ST Price Qty RecItem View recommended items
Key 22 Horizon # Discontinued Description Center Rod, Pentair PacFab ST35, 1/4" x 15", 2 required Price Qty RecItem View recommended items
Key 22 Horizon # Discontinued Description Center Rod, Pentair PacFab ST40/50, 1/4" x 21-1/2", 2 req. Price Qty RecItem View recommended items
Key 22 Horizon # Discontinued Description Center Rod, Pentair PacFab ST80, 1/4" x 28" Price Qty RecItem View recommended items
Key 24 Horizon # 35-110-1656 Description Bolt, Pentair PacFab, Pump/Filter, 5/16-18 x 4-1/4" Price Qty RecItem View recommended items
Key 25 Horizon # 35-110-1658 Description Washer, Pentair PacFab, Pump/Filter, 5/16" Price Qty RecItem View recommended items
Key 26 Horizon # 35-110-1660 Description Clamp Knob, Pentair PacFab, Pump/Filter, 5/16-18 Price Qty RecItem View recommended items
Key 27 Horizon # 14-110-1198 Description Washer, Pent Purex PacFab/EQ Series, Split Lock, 1/4" Price Qty RecItem View recommended items
Key 28 Horizon # 14-110-2026 Description Drain Plug, Pentair PacFab Mytilus/ST, with O-Ring Price Qty RecItem View recommended items
Key 28 Horizon # 17-605-1000 Description Drain Plug, For Hayward with O-Ring, Generic Price Qty RecItem View recommended items
Key 29 Horizon # Discontinued Description Outlet Pipe Assembly, Pentair PacFab ST, with Check Valve Price Qty RecItem View recommended items
Key 30 Horizon # Discontinued Description Clamp Ring, Pentair PacFab Mytilus/ST Price Qty RecItem View recommended items
Key 31 Horizon # Discontinued Description Grid Assembly, Pentair PacFab ST35 Price Qty RecItem View recommended items
Key 31 Horizon # Discontinued Description Grid Assembly, Pentair PacFab ST40/50 Price Qty RecItem View recommended items
Key 31 Horizon # Discontinued Description Grid Assembly, Pentair PacFab ST80 Price Qty RecItem View recommended items
Key 32 Horizon # 14-110-2040 Description Tubing, Pentair PacFab ST, Air Relief, 1/4" Price Qty RecItem View recommended items
Key 33 Horizon # 14-110-2044 Description Air Relief Strainer, Pentair PacFab ST Price Qty RecItem View recommended items
Key 34 Horizon # Discontinued Description Retaining Ring, Pentair PacFab ST Price Qty RecItem View recommended items
Key 35 Horizon # Discontinued Description Pipe Wrench, Pentair PacFab ST Price Qty RecItem
Key 21 Horizon # 14-110-1518 Description Nut, Pentair American Products/PacFab, 1/4-20 Price Qty RecItem View recommended items
