DE Filter, Pentair/PacFab, Nautilus Plus NS24,36,48,60,72

Product Description  ·  Parts  ·  Complete Valves  ·  Not Pictured  ·  Complete Grid  ·  Tools
Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View

Product Description

Note:

Part #14-110-1092 and 14-110-1022 - used on filters manufactured before 01/99

Part #14-110-1094 - used on filters manufactured after 01/99

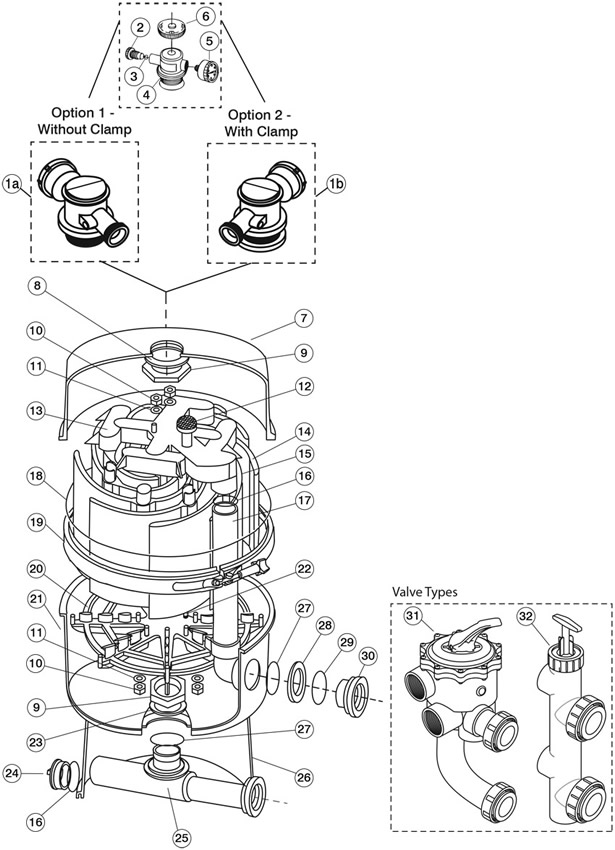

Parts

Key Horizon # Description Qty
Key 1a Horizon # 14-102-2154 Description Manual Air Relief Valve, Pentair, Without Clamp Price Qty RecItem View recommended items
Key 1a Horizon # 14-110-1154 Description Manual Air Relief Valve, Pentair Purex PacFab, w/o Clamp Price Qty RecItem View recommended items
Key 1a Horizon # 14-110-1600 Description Manual Air Relief Valve, Pentair PacFab Purex, with Clamp Price Qty RecItem View recommended items
Key 1b Horizon # 14-110-1600 Description Manual Air Relief Valve, Pentair PacFab Purex, with Clamp Price Qty RecItem View recommended items
Key 2 Horizon # 14-110-1732 Description Bleeder, Pentair PacFab, with O-Ring Price Qty RecItem View recommended items
Key 3 Horizon # 90-423-7109 Description O-Ring, 5/16" ID, 3/32" Cross Section, Generic Price Qty RecItem View recommended items
Key 4 Horizon # 14-110-1686 Description O-Ring, Pent PacFab Mitra/Mytilus/Sea Horse, Valve Adpt,O-83 Price Qty RecItem View recommended items
Key 4 Horizon # 90-423-5332 Description O-Ring, 2-3/8" ID, 3/16" Cross Section, Generic Price Qty RecItem View recommended items
Key 5 Horizon # 14-102-1586 Description Pressure Gauge, Pentair, 1/4"mpt, 0-60psi, Back Mount Price Qty RecItem View recommended items
Key 5 Horizon # 14-110-1002 Description Pressure Gauge, Pentair, 1/4"mpt, 0-60psi, Back Mount Price Qty RecItem View recommended items
Key 5 Horizon # 17-555-1018 Description Pressure Gauge, 1/4"mpt, 0-60psi, Back Mount, Generic Price Qty RecItem View recommended items
Key 6 Horizon # Discontinued Description Air Relief Cap, Pentair PacFab FNS/NS Price Qty RecItem View recommended items
Key 7 Horizon # Discontinued Description Tank Lid, Pentair PacFab NSP24, Polished Price Qty RecItem View recommended items
Key 7 Horizon # Discontinued Description Tank Lid, Pentair PacFab NSP36/72, Polished Price Qty RecItem View recommended items
Key 8 Horizon # 14-110-1606 Description Spacer, Pentair PacFab NS/Sea Horse/FNS, blk Price Qty RecItem View recommended items
Key 9 Horizon # 14-102-2402 Description Internal Locknut, Pentair, 2" Price Qty RecItem View recommended items
Key 9 Horizon # 14-110-1156 Description Internal Locknut, Pentair Purex PacFab, 2" Price Qty RecItem View recommended items
Key 10 Horizon # 14-110-1702 Description Nut, Pentair PacFab FNS/NS, 5/16-18 Price Qty RecItem
Key 11 Horizon # 14-110-1704 Description Lock Washer, Pentair PacFab FNS/NS, 5/16" Price Qty RecItem View recommended items
Key 11 Horizon # 35-110-1658 Description Washer, Pentair PacFab, Pump/Filter, 5/16" Price Qty RecItem View recommended items
Key 12 Horizon # 14-110-1728 Description Air Relief Strainer, Pentair PacFab Price Qty RecItem View recommended items
Key 13 Horizon # 14-110-1758 Description Manifold, Pentair PacFab NS Price Qty RecItem View recommended items
Key 14 Horizon # Discontinued Description Grd Asy Part 60Sqft Cvrd Price Qty RecItem View recommended items
Key 14 Horizon # 14-102-2009 Description Grid Assemlby, Half, Pentair FNS Plus/Nautilus Plus, 60sqft Price Qty RecItem View recommended items
Key 14 Horizon # 14-176-1025 Description DE Grid, Pentair/Hayward, Partial, 12" x 9-3/4", for 24 sqft Price Qty RecItem View recommended items
Key 14 Horizon # 14-176-1030 Description DE Grid, Pentair/Hayward/WW, Partial, 18"x9-3/4",for 36 sqft Price Qty RecItem View recommended items
Key 14 Horizon # 14-176-1035 Description DE Grid, Pent/Hayward/WW/Zod Partial, 24"x9-3/4",for 48 sqft Price Qty RecItem View recommended items
Key 14 Horizon # 14-176-1040 Description DE Grid, Pent/Hayward/WW/Zod, Partial,30"x9-3/4",for 60 sqft Price Qty RecItem View recommended items
Key 14 Horizon # 14-176-1045 Description DE Grid, Pentair/Hayward, Partial, 36"x9-3/4",for 72 sqft Price Qty RecItem View recommended items
Key 14 Horizon # 14-775-1025 Description Grid DE, Pleatco,9-3/4" x 12" for 24 sqft, Half Price Qty RecItem View recommended items
Key 14 Horizon # Discontinued Description Grid DE, Pleatco, 9-3/4" x 18" for 36 sqft , Half Price Qty RecItem View recommended items
Key 14 Horizon # 14-775-1035 Description DE Grid, Pleatco, Partial, 24"x9-3/4",for 48 sqft Price Qty RecItem View recommended items
Key 14 Horizon # Discontinued Description Grid DE, Pleatco, 9-3/4" x 30" for 60 sqft , Half Price Qty RecItem View recommended items
Key 14 Horizon # 14-775-1045 Description Grid DE, Pleatco, 9-3/4" x 36" for 72 sqft , Half Price Qty RecItem View recommended items
Key 14 Horizon # 14-777-1025 Description Grid DE, Partial, Darlly, 9-3/4" x 12" for 24 sqft Price Qty RecItem View recommended items
Key 14 Horizon # 14-777-1030 Description Grid DE, Darlly, Partial, 9-3/4" x 18" for 36 sqft Price Qty RecItem View recommended items
Key 14 Horizon # 14-777-1035 Description DE Grid, Partial, Darlly, 24" x 9-3/4", for 48 sqft Price Qty RecItem View recommended items
Key 14 Horizon # 14-777-1040 Description Grid DE, Partial, Darlly, 9-3/4" x 30" for 60 sqft Price Qty RecItem View recommended items
Key 14 Horizon # 14-777-1045 Description Grid DE, Partial, Darlly, 9-3/4" x 36" for 72 sqft Price Qty RecItem View recommended items
Key 15 Horizon # _59003000 Description Grd Asy Full 60Sqft Cvrd Price Qty RecItem View recommended items
Key 15 Horizon # 14-176-1000 Description DE Grid, Pentair/Hayward, Full, 12" x 11", for 24 sqft Price Qty RecItem View recommended items
Key 15 Horizon # 14-176-1005 Description DE Grid, Pent/Hayward/Jacuzzi/Zod, Full, 18"x11",for 36 sqft Price Qty RecItem View recommended items
Key 15 Horizon # 14-176-1010 Description DE Grid, Pent/Hayward/Jacuzzi/Zod, Full, 24"x11",for 48 sqft Price Qty RecItem View recommended items
Key 15 Horizon # 14-176-1015 Description DE Grid, Pent/Hayward/Jacuzzi/Zod, Full, 30"x11",for 60 sqft Price Qty RecItem View recommended items
Key 15 Horizon # 14-176-1020 Description DE Grid, Pentair/Hayward/Jacuzzi, Full, 36"x11",for 72 sqft Price Qty RecItem View recommended items
Key 15 Horizon # 14-775-1000 Description Grid DE, Pleatco, 12" x 11" for 24 Sqft , Full Price Qty RecItem View recommended items
Key 15 Horizon # Discontinued Description Grid DE, Pleatco, 18" x 11" for 36 Sqft, Full Price Qty RecItem View recommended items
Key 15 Horizon # Discontinued Description Grid DE, Pleatco,24" x 11" for 48 sqft , Full Price Qty RecItem View recommended items
Key 15 Horizon # Discontinued Description Grid DE, Pleatco, 30" x 11" for 30 sqft , Full Price Qty RecItem View recommended items
Key 15 Horizon # 14-775-1020 Description Grid DE, Pleatco,36" x 11" for 72 sqft , Full Price Qty RecItem View recommended items
Key 15 Horizon # 14-777-1000 Description Grid DE, Full, Darlly, 12" x 11" for 24 Sqft Price Qty RecItem View recommended items
Key 15 Horizon # 14-777-1005 Description Grid DE, Full, Darlly, 18" x 11" for 36 Sqft Price Qty RecItem View recommended items
Key 15 Horizon # 14-777-1010 Description Grid DE, Full, Darlly, 24" x 11" for 48 sqft Price Qty RecItem View recommended items
Key 15 Horizon # 14-777-1015 Description Grid DE, Full, Darlly, 30" x 11" for 30 sqft Price Qty RecItem View recommended items
Key 15 Horizon # 14-777-1020 Description Grid DE, Full, Darlly, 36" x 11" for 72 sqft Price Qty RecItem View recommended items
Key 16 Horizon # 14-110-1604 Description O-Ring, Pent PacFab FNS/Nautilus/Plus, Drain Plug, O-24 Price Qty RecItem View recommended items
Key 16 Horizon # 90-423-5139 Description O-Ring, Buna-N, 2-3/16" ID, 3/32" CrossSection, Generic Price Qty RecItem View recommended items
Key 17 Horizon # Discontinued Description Outlet Pipe Assembly, Pentair PacFab NS24, Upper Price Qty RecItem View recommended items
Key 17 Horizon # Discontinued Description Outlet Pipe Assembly, Pentair PacFab NS36, Upper Price Qty RecItem View recommended items
Key 17 Horizon # Discontinued Description Outlet Pipe Assembly, Pentair PacFab NS48, Upper Price Qty RecItem View recommended items
Key 17 Horizon # Discontinued Description Outlet Pipe Assembly, Pentair PacFab NS60, Upper Price Qty RecItem View recommended items
Key 17 Horizon # Discontinued Description Outlet Pipe Assembly, Pentair PacFab NS72, Upper Price Qty RecItem View recommended items
Key 18 Horizon # 14-110-1034 Description O-Ring, Pentair Purex/PacFab CFW/NS/SM2000, Tank Body, O-86 Price Qty RecItem View recommended items
Key 18 Horizon # 90-423-1086 Description O-Ring, Purex CFW/2000, 17-3/4" x 0.5",Tank Body,Generic Price Qty RecItem View recommended items
Key 19 Horizon # 14-110-1917 Description Clamp Ring, Pentair PacFab NSP Price Qty RecItem View recommended items
Key 20 Horizon # 14-110-1708 Description Retainer, Pentair PacFab FNS Price Qty RecItem View recommended items
Key 21 Horizon # Discontinued Description Tank Body, Pentair PacFab NSP24 Price Qty RecItem View recommended items
Key 21 Horizon # Discontinued Description Tank Body, Pentair PacFab NSP36 Price Qty RecItem View recommended items
Key 21 Horizon # Discontinued Description Tank Body, Pentair PacFab NSP48 Price Qty RecItem View recommended items
Key 21 Horizon # Discontinued Description Tank Body, Pentair PacFab NSP60 Price Qty RecItem View recommended items
Key 21 Horizon # Discontinued Description Tank Body, Pentair PacFab NSP72 Price Qty RecItem View recommended items
Key 22 Horizon # 14-110-1644 Description Center Rod, Val-Pak, NS/FNS, 5/16" x 15-1/2" Price Qty RecItem View recommended items
Key 22 Horizon # Discontinued Description Center Rod, Pentair PacFab NS/FNS, 5/16" x 21-1/2" Price Qty RecItem View recommended items
Key 22 Horizon # 14-110-1648 Description Center Rod, Pentair PacFab NS/FNS, 5/16" x 28" Price Qty RecItem View recommended items
Key 22 Horizon # 14-110-1650 Description Center Rod, Pentair PacFab NS/FNS, 5/16" x 33-3/4" Price Qty RecItem View recommended items
Key 22 Horizon # Discontinued Description Center Rod, Pentair PacFab NS72 Price Qty RecItem View recommended items
Key 23 Horizon # Discontinued Description Spacer, 2.8" dia. x 194"pvc Price Qty RecItem View recommended items
Key 24 Horizon # 14-110-1690 Description Drain Plug, Pentair PacFab FSH/FNS/NS Price Qty RecItem View recommended items
Key 25 Horizon # 14-110-1806 Description Pipe Assembly, Pentair PacFab NS, Lower, with Drain Price Qty RecItem View recommended items
Key 26 Horizon # Discontinued Description Foot, Pentair PacFab FNS Price Qty RecItem View recommended items
Key 27 Horizon # 90-423-5334 Description O-Ring, 2-5/8" ID, 3/16" Cross Section, Generic Price Qty RecItem View recommended items
Key 28 Horizon # Discontinued Description External Spacer, Pentair PacFab NS/Sea Horse/FNS Price Qty RecItem View recommended items
Key 29 Horizon # 14-110-1682 Description O-Ring, Pent PacFab Sea Horse/FNS/Nautilus, Bulkhead, O-409 Price Qty RecItem View recommended items
Key 29 Horizon # 90-423-5331 Description O-Ring, 2-1/4" ID, 3/16" Cross Section, Generic Price Qty RecItem View recommended items
Key 30 Horizon # 14-102-2414 Description Bulkhead, Pentair FNS, 2-3/8", After 11/98 Price Qty RecItem
Key 30 Horizon # 14-110-1800 Description Bulkhead, Pentair Am Products PacFab, 2-3/8", After 11/98 Price Qty RecItem View recommended items

Complete Valves

Key Horizon # Description Qty
Key 31 Horizon # 26-102-1502 Description Multiport Valve, Pacfab/Pentair DE Filter, 2" Price Qty RecItem View recommended items
Key 31 Horizon # 26-102-1508 Description Multiport Valve, Pacfab/Pentair DE Filter, 2" Thd, 8 Pos Price Qty RecItem View recommended items
Key 31 Horizon # 26-253-1170 Description Multiport Valve, Praher SM1-PP2, 1-1/2", w/PacFab Plumbing Price Qty RecItem View recommended items
Key 31 Horizon # 26-253-1175 Description Multiport Valve, Praher SM2-PP2, 2", with PacFab Plumbing Price Qty RecItem View recommended items
Key 32 Horizon # 26-102-1500 Description Push Pull Valve, Pentair Pacfab De Filter, 2" PVC Price Qty RecItem View recommended items
Key 32 Horizon # 26-110-1500 Description Push Pull Valve, Pentair PacFab, 2" Slip, PVC Price Qty RecItem View recommended items

Not Pictured

Key Horizon # Description Qty
Key Horizon # 14-110-1022 Description T Bolt, Pentair Purex PacFab, Clamp Ring, 1/4-20 x 3-1/2" Price Qty RecItem View recommended items
Key Horizon # 14-110-1092 Description Filter/Pump Knob, Pentair Purex PacFab, Clamp Ring, Pre '98 Price Qty RecItem View recommended items
Key Horizon # Discontinued Description Clamp Ring Knob, Pentair Purex CFM/CF w/ 800/SMBW, After '98 Price Qty RecItem View recommended items
Key Horizon # Discontinued Description Warning Label, PacFab Pent Nautilus Plus/Triton C-3,Air Rlf Price Qty RecItem View recommended items
Key Horizon # 14-178-2000 Description DE Grid Set, Pentair/Hayward (7+1), 12" for 24 sqft Filters Price Qty RecItem View recommended items
Key Horizon # 14-178-2005 Description DE Grid Set, Pentair/Hayward, (7+1) 18" for 36 sqft Filters Price Qty RecItem View recommended items
Key Horizon # 14-178-2010 Description DE Grid Set, Pentair/Hayward, (7+1) 24" for 48 sqft Filters Price Qty RecItem View recommended items
Key Horizon # 14-178-2015 Description DE Grid Set, Pentair/Hayward, (7+1) 30" for 60 sqft Filters Price Qty RecItem View recommended items
Key Horizon # 14-178-2020 Description DE Grid Set, Pentair/Hayward, (7+1) 36" for 72 sqft Filters Price Qty RecItem View recommended items
Key Horizon # 14-775-2000 Description Grid DE SET,Pleatco, 11" x 12" for 24 sqft,(7 Full + 1 Half) Price Qty RecItem View recommended items
Key Horizon # 14-775-2005 Description Grid DE,SET, Pleatco, 11" x 18" for 36sqft,(7 Full + 1 Half) Price Qty RecItem View recommended items
Key Horizon # 14-775-2010 Description Grid DE,SET, Pleatco, 11" x 24" for 48sqft,(7 Full + 1 Half) Price Qty RecItem View recommended items
Key Horizon # 14-775-2015 Description Grid DE,SET, Pleatco, 11" x 30" for 60sqft,(7 Full + 1 Half) Price Qty RecItem View recommended items
Key Horizon # 14-775-2020 Description Grid DE, Pleatco, 11" x 36" for 72 sqft,(7 Full + 1 Half) Price Qty RecItem View recommended items
Key Horizon # 14-175-2010 Description DE Grid Set, Unicel, 48 sqft, 7 Full + 1 Half Price Qty RecItem View recommended items
Key Horizon # 14-777-2000 Description DE Grid Set, Darlly, 11" x 12" for 24 sqft,(7 Full + 1 Half) Price Qty RecItem View recommended items
Key Horizon # 14-777-2005 Description DE Grid Set, Darlly, 11" x 18" for 36sqft,(7 Full + 1 Half) Price Qty RecItem View recommended items
Key Horizon # 14-777-2010 Description DE Grid Set, Darlly, 11" x 24" for 48sqft,(7 Full + 1 Half) Price Qty RecItem View recommended items
Key Horizon # 14-777-2015 Description DE Grid Set, Darlly, 11" x 30" for 60sqft,(7 Full + 1 Half) Price Qty RecItem View recommended items
Key Horizon # 14-777-2020 Description DE Grid Set, Darlly, 11" x 36" for 72 sqft,(7 Full + 1 Half) Price Qty RecItem View recommended items

Complete Grid

Key Horizon # Description Qty
Key Horizon # Discontinued Description Grid Assembly, Pentair PacFab Nautilus/Nautilus Plus NS36 Price Qty RecItem View recommended items
Key Horizon # _195060 Description Grd Asy Ns72 Complt Price Qty RecItem View recommended items
Key Horizon # _192324 Description Grd Asy Ns24 Complt Price Qty RecItem View recommended items
Key Horizon # _192326 Description Grd Asy Ns48 Complt Price Qty RecItem View recommended items
Key Horizon # Discontinued Description Grd Asy Ns60 Complt Price Qty RecItem View recommended items

Tools

Key Horizon # Description Qty
Key Horizon # 99-615-1006 Description Tool, Clamp Knob Socket, 4-Lobe, w/1/4" Socket Bit Adapter Price Qty RecItem View recommended items
Key Horizon # 99-615-1002 Description Tool, Button-Hook, Drain Plug Wrench, Stainless Steel Price Qty RecItem View recommended items
Key Horizon # 99-615-1022 Description Tool, Socket, Quad-Side A/Solar Side B Price Qty RecItem View recommended items
