Home  >  Exploded Diagrams  >  Exploded Diagrams  >  Filters  >  16-110-W041

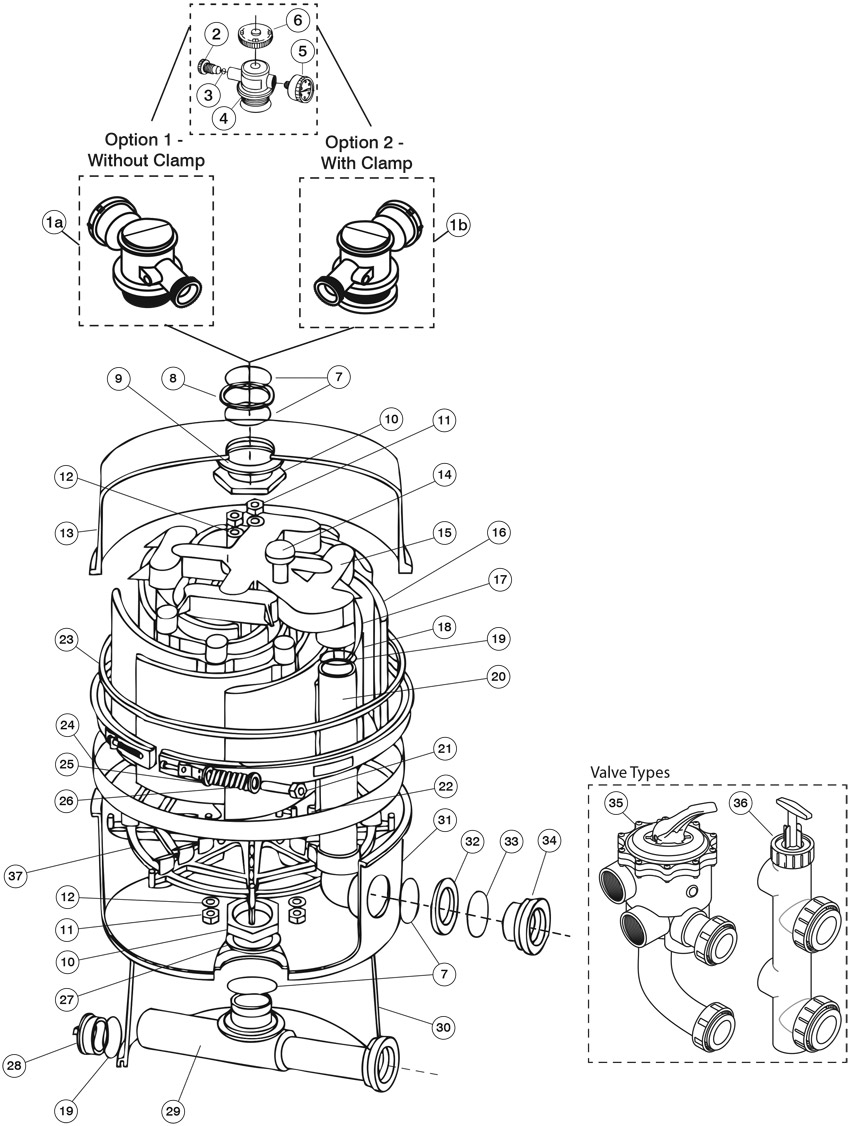

DE Filter, Pentair/PacFab, Nautilus NS24,36,48,60,72

Product Description  ·  Parts  ·  Complete Valves  ·  Complete Grid  ·  Not Pictured
Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View

Product Description

Note:

-Part #14-110-1728 is used on filters manufactured after 12/91



-The Grid Packs consist of the Full and Partial Grids and O-Ring - 90-423-5139



-Part #14-110-1822 - filters manufactured before 04/92 contain a different clamp band assembly. Replacement clamp band components are no longer available for these units. Replace old obsolete non-spring design clamp band with new spring design clamp band to upgrade your filter if any components are damaged. Spring design clamp bands do not require use of a torque wrench and simplify installation of the clamp. Do not attempt to interchange components between the different clamp band designs.

Parts

Key Horizon # Description Qty
Key 1A Horizon # 14-102-2154 Description Manual Air Relief Valve, Pentair, Without Clamp Price Qty RecItem View recommended items
Key 1A Horizon # 14-110-1154 Description Manual Air Relief Valve, Pentair Purex PacFab, w/o Clamp Price Qty RecItem View recommended items
Key 1A Horizon # 14-110-1600 Description Manual Air Relief Valve, Pentair PacFab Purex, with Clamp Price Qty RecItem View recommended items
Key 1B Horizon # 14-110-1600 Description Manual Air Relief Valve, Pentair PacFab Purex, with Clamp Price Qty RecItem View recommended items
Key 2 Horizon # 14-110-1732 Description Bleeder, Pentair PacFab, with O-Ring Price Qty RecItem View recommended items
Key 3 Horizon # 90-423-7109 Description O-Ring, 5/16" ID, 3/32" Cross Section, Generic Price Qty RecItem View recommended items
Key 4 Horizon # 14-110-1686 Description O-Ring, Pent PacFab Mitra/Mytilus/Sea Horse, Valve Adpt,O-83 Price Qty RecItem View recommended items
Key 4 Horizon # 90-423-5332 Description O-Ring, 2-3/8" ID, 3/16" Cross Section, Generic Price Qty RecItem View recommended items
Key 5 Horizon # 14-102-1586 Description Pressure Gauge, Pentair, 1/4"mpt, 0-60psi, Back Mount Price Qty RecItem View recommended items
Key 5 Horizon # 14-110-1002 Description Pressure Gauge, Pentair, 1/4"mpt, 0-60psi, Back Mount Price Qty RecItem View recommended items
Key 5 Horizon # 17-555-1018 Description Pressure Gauge, 1/4"mpt, 0-60psi, Back Mount, Generic Price Qty RecItem View recommended items
Key 6 Horizon # Discontinued Description Air Relief Cap, Pentair PacFab FNS/NS Price Qty RecItem View recommended items
Key 7 Horizon # 14-110-1686 Description O-Ring, Pent PacFab Mitra/Mytilus/Sea Horse, Valve Adpt,O-83 Price Qty RecItem View recommended items
Key 7 Horizon # 90-423-5332 Description O-Ring, 2-3/8" ID, 3/16" Cross Section, Generic Price Qty RecItem View recommended items
Key 8 Horizon # Discontinued Description Spacer, Pentair, Tank Lid, Black Price Qty RecItem View recommended items
Key 9 Horizon # 14-110-1606 Description Spacer, Pentair PacFab NS/Sea Horse/FNS, blk Price Qty RecItem View recommended items
Key 10 Horizon # 14-102-2402 Description Internal Locknut, Pentair, 2" Price Qty RecItem View recommended items
Key 10 Horizon # 14-110-1156 Description Internal Locknut, Pentair Purex PacFab, 2" Price Qty RecItem View recommended items
Key 11 Horizon # 14-110-1702 Description Nut, Pentair PacFab FNS/NS, 5/16-18 Price Qty RecItem
Key 12 Horizon # 35-110-1658 Description Washer, Pentair PacFab, Pump/Filter, 5/16" Price Qty RecItem View recommended items
Key 13 Horizon # Discontinued Description Tank Lid, Pentair PacFab NS24 Price Qty RecItem View recommended items
Key 13 Horizon # Discontinued Description Tank Lid, Pentair PacFab NS36/NS60 Price Qty RecItem View recommended items
Key 13 Horizon # Discontinued Description Tank Lid, Pentair PacFab NS48/NS72 Price Qty RecItem View recommended items
Key 13 Horizon # Discontinued Description Tank Lid, Pentair PacFab NS24, NSP Kit Price Qty RecItem View recommended items
Key 13 Horizon # Discontinued Description Tank Lid, Pentair PacFab NS36/NS60, NSP Kit Price Qty RecItem View recommended items
Key 14 Horizon # 14-110-1728 Description Air Relief Strainer, Pentair PacFab Price Qty RecItem View recommended items
Key 15 Horizon # 14-110-1758 Description Manifold, Pentair PacFab NS Price Qty RecItem View recommended items
Key 16 Horizon # 14-176-1025 Description DE Grid, Pentair/Hayward, Partial, 12" x 9-3/4", for 24 sqft Price Qty RecItem View recommended items
Key 16 Horizon # 14-176-1030 Description DE Grid, Pentair/Hayward/WW, Partial, 18"x9-3/4",for 36 sqft Price Qty RecItem View recommended items
Key 16 Horizon # 14-176-1035 Description DE Grid, Pent/Hayward/WW/Zod Partial, 24"x9-3/4",for 48 sqft Price Qty RecItem View recommended items
Key 16 Horizon # 14-176-1040 Description DE Grid, Pent/Hayward/WW/Zod, Partial,30"x9-3/4",for 60 sqft Price Qty RecItem View recommended items
Key 16 Horizon # 14-176-1045 Description DE Grid, Pentair/Hayward, Partial, 36"x9-3/4",for 72 sqft Price Qty RecItem View recommended items
Key 16 Horizon # 14-775-1025 Description Grid DE, Pleatco,9-3/4" x 12" for 24 sqft, Half Price Qty RecItem View recommended items
Key 16 Horizon # Discontinued Description Grid DE, Pleatco, 9-3/4" x 18" for 36 sqft , Half Price Qty RecItem View recommended items
Key 16 Horizon # 14-775-1035 Description DE Grid, Pleatco, Partial, 24"x9-3/4",for 48 sqft Price Qty RecItem View recommended items
Key 16 Horizon # Discontinued Description Grid DE, Pleatco, 9-3/4" x 30" for 60 sqft , Half Price Qty RecItem View recommended items
Key 16 Horizon # 14-775-1045 Description Grid DE, Pleatco, 9-3/4" x 36" for 72 sqft , Half Price Qty RecItem View recommended items
Key 16 Horizon # 14-777-1025 Description Grid DE, Partial, Darlly, 9-3/4" x 12" for 24 sqft Price Qty RecItem View recommended items
Key 16 Horizon # 14-777-1030 Description Grid DE, Darlly, Partial, 9-3/4" x 18" for 36 sqft Price Qty RecItem View recommended items
Key 16 Horizon # 14-777-1035 Description DE Grid, Partial, Darlly, 24" x 9-3/4", for 48 sqft Price Qty RecItem View recommended items
Key 16 Horizon # 14-777-1040 Description Grid DE, Partial, Darlly, 9-3/4" x 30" for 60 sqft Price Qty RecItem View recommended items
Key 16 Horizon # 14-777-1045 Description Grid DE, Partial, Darlly, 9-3/4" x 36" for 72 sqft Price Qty RecItem View recommended items
Key 17 Horizon # 14-176-1000 Description DE Grid, Pentair/Hayward, Full, 12" x 11", for 24 sqft Price Qty RecItem View recommended items
Key 17 Horizon # 14-176-1005 Description DE Grid, Pent/Hayward/Jacuzzi/Zod, Full, 18"x11",for 36 sqft Price Qty RecItem View recommended items
Key 17 Horizon # 14-176-1010 Description DE Grid, Pent/Hayward/Jacuzzi/Zod, Full, 24"x11",for 48 sqft Price Qty RecItem View recommended items
Key 17 Horizon # 14-176-1015 Description DE Grid, Pent/Hayward/Jacuzzi/Zod, Full, 30"x11",for 60 sqft Price Qty RecItem View recommended items
Key 17 Horizon # 14-176-1020 Description DE Grid, Pentair/Hayward/Jacuzzi, Full, 36"x11",for 72 sqft Price Qty RecItem View recommended items
Key 17 Horizon # 14-775-1000 Description Grid DE, Pleatco, 12" x 11" for 24 Sqft , Full Price Qty RecItem View recommended items
Key 17 Horizon # Discontinued Description Grid DE, Pleatco, 18" x 11" for 36 Sqft, Full Price Qty RecItem View recommended items
Key 17 Horizon # Discontinued Description Grid DE, Pleatco,24" x 11" for 48 sqft , Full Price Qty RecItem View recommended items
Key 17 Horizon # Discontinued Description Grid DE, Pleatco, 30" x 11" for 30 sqft , Full Price Qty RecItem View recommended items
Key 17 Horizon # 14-775-1020 Description Grid DE, Pleatco,36" x 11" for 72 sqft , Full Price Qty RecItem View recommended items
Key 17 Horizon # 14-777-1000 Description Grid DE, Full, Darlly, 12" x 11" for 24 Sqft Price Qty RecItem View recommended items
Key 17 Horizon # 14-777-1005 Description Grid DE, Full, Darlly, 18" x 11" for 36 Sqft Price Qty RecItem View recommended items
Key 17 Horizon # 14-777-1010 Description Grid DE, Full, Darlly, 24" x 11" for 48 sqft Price Qty RecItem View recommended items
Key 17 Horizon # 14-777-1015 Description Grid DE, Full, Darlly, 30" x 11" for 30 sqft Price Qty RecItem View recommended items
Key 17 Horizon # 14-777-1020 Description Grid DE, Full, Darlly, 36" x 11" for 72 sqft Price Qty RecItem View recommended items
Key 19 Horizon # 14-110-1604 Description O-Ring, Pent PacFab FNS/Nautilus/Plus, Drain Plug, O-24 Price Qty RecItem View recommended items
Key 19 Horizon # 90-423-5139 Description O-Ring, Buna-N, 2-3/16" ID, 3/32" CrossSection, Generic Price Qty RecItem View recommended items
Key 20 Horizon # Discontinued Description Outlet Pipe Assembly, Pentair PacFab NS24, Upper Price Qty RecItem View recommended items
Key 20 Horizon # Discontinued Description Outlet Pipe Assembly, Pentair PacFab NS36, Upper Price Qty RecItem View recommended items
Key 20 Horizon # Discontinued Description Outlet Pipe Assembly, Pentair PacFab NS48, Upper Price Qty RecItem View recommended items
Key 20 Horizon # Discontinued Description Outlet Pipe Assembly, Pentair PacFab NS60, Upper Price Qty RecItem View recommended items
Key 20 Horizon # Discontinued Description Outlet Pipe Assembly, Pentair PacFab NS72, Upper Price Qty RecItem View recommended items
Key 21 Horizon # 14-110-1830 Description Clamp Ring Nut, Pentair PacFab NS, Price Qty RecItem View recommended items
Key 22 Horizon # 14-110-1644 Description Center Rod, Val-Pak, NS/FNS, 5/16" x 15-1/2" Price Qty RecItem View recommended items
Key 22 Horizon # Discontinued Description Center Rod, Pentair PacFab NS/FNS, 5/16" x 21-1/2" Price Qty RecItem View recommended items
Key 22 Horizon # 14-110-1648 Description Center Rod, Pentair PacFab NS/FNS, 5/16" x 28" Price Qty RecItem View recommended items
Key 22 Horizon # 14-110-1650 Description Center Rod, Pentair PacFab NS/FNS, 5/16" x 33-3/4" Price Qty RecItem View recommended items
Key 22 Horizon # Discontinued Description Center Rod, Pentair PacFab NS72 Price Qty RecItem View recommended items
Key 22 Horizon # 14-612-1210 Description Rod, Nautilus D.E, Manifold Retainer, 5/16" x 21-1/2" Price Qty RecItem View recommended items
Key 23 Horizon # 14-110-1782 Description O-Ring, Pent/PacFab, Sea Horse/Nautilus, 18"Tank Body, O-184 Price Qty RecItem View recommended items
Key 23 Horizon # 90-423-1184 Description O-Ring, 18-1/2" ID, 7/16" Cross Section, O-184, Generic Price Qty RecItem View recommended items
Key 24 Horizon # Discontinued Description Retaining Ring, Pentair PacFab NS, 18" Price Qty RecItem View recommended items
Key 25 Horizon # 14-110-1826 Description Clamp Ring Spring, Pentair/PacFab NS Price Qty RecItem View recommended items
Key 26 Horizon # Discontinued Description Washer, Pentair PacFab Sea Horse/NS, .430 i.d, Clamp Ring Price Qty RecItem View recommended items
Key 27 Horizon # 17-110-1578 Description Internal Spacer, Pentair PacFab Price Qty RecItem View recommended items
Key 28 Horizon # 14-110-1690 Description Drain Plug, Pentair PacFab FSH/FNS/NS Price Qty RecItem View recommended items
Key 29 Horizon # Discontinued Description Outlet Pipe Assembly, Pentair PacFab NS, Lower, with Drain Price Qty RecItem View recommended items
Key 30 Horizon # Discontinued Description Tank Base, Pentair PacFab Sea Horse/Nautilus Price Qty RecItem
Key 31 Horizon # Discontinued Description Tank Lid, Pentair PacFab NS24 Price Qty RecItem View recommended items
Key 31 Horizon # Discontinued Description Tank Lid, Pentair PacFab NS36/NS60 Price Qty RecItem View recommended items
Key 31 Horizon # Discontinued Description Tank Lid, Pentair PacFab NS48/NS72 Price Qty RecItem View recommended items
Key 31 Horizon # Discontinued Description Tank Lid, Pentair PacFab NS24, NSP Kit Price Qty RecItem View recommended items
Key 31 Horizon # Discontinued Description Tank Lid, Pentair PacFab NS36/NS60, NSP Kit Price Qty RecItem View recommended items
Key 32 Horizon # Discontinued Description External Spacer, Pentair PacFab NS/Sea Horse/FNS Price Qty RecItem View recommended items
Key 33 Horizon # 14-110-1682 Description O-Ring, Pent PacFab Sea Horse/FNS/Nautilus, Bulkhead, O-409 Price Qty RecItem View recommended items
Key 33 Horizon # 90-423-5331 Description O-Ring, 2-1/4" ID, 3/16" Cross Section, Generic Price Qty RecItem View recommended items
Key 34 Horizon # 14-102-1584 Description Bulkhead Fitting, Pentair,FNS Plus, 2", w/O-Ring,After 10/04 Price Qty RecItem View recommended items
Key 34 Horizon # 14-102-2414 Description Bulkhead, Pentair FNS, 2-3/8", After 11/98 Price Qty RecItem
Key 34 Horizon # 14-110-1800 Description Bulkhead, Pentair Am Products PacFab, 2-3/8", After 11/98 Price Qty RecItem View recommended items
Key 37 Horizon # 14-110-1708 Description Retainer, Pentair PacFab FNS Price Qty RecItem View recommended items

Complete Valves

Key Horizon # Description Qty
Key 35 Horizon # 26-102-1506 Description Multiport Valve, Pacfab/Pentair Hi-flow DE Filter, 2" Slip Price Qty RecItem View recommended items
Key 35 Horizon # 26-253-1170 Description Multiport Valve, Praher SM1-PP2, 1-1/2", w/PacFab Plumbing Price Qty RecItem View recommended items
Key 35 Horizon # 26-253-1175 Description Multiport Valve, Praher SM2-PP2, 2", with PacFab Plumbing Price Qty RecItem View recommended items
Key 36 Horizon # 26-102-1500 Description Push Pull Valve, Pentair Pacfab De Filter, 2" PVC Price Qty RecItem View recommended items
Key 36 Horizon # 26-110-1500 Description Push Pull Valve, Pentair PacFab, 2" Slip, PVC Price Qty RecItem View recommended items

Complete Grid

Key Horizon # Description Qty
Key 18 Horizon # _192324 Description Grd Asy Ns24 Complt Price Qty RecItem View recommended items
Key 18 Horizon # _192326 Description Grd Asy Ns48 Complt Price Qty RecItem View recommended items
Key 18 Horizon # Discontinued Description Grd Asy Ns60 Complt Price Qty RecItem View recommended items
Key 18 Horizon # _195060 Description Grd Asy Ns72 Complt Price Qty RecItem View recommended items
Key 18 Horizon # Discontinued Description Grid Assembly, Pentair PacFab Nautilus/Nautilus Plus NS36 Price Qty RecItem View recommended items
Key 18 Horizon # Discontinued Description Grid Pack, Pentair PacFab FSH/NS, w/O-Ring, 24 sqft. Price Qty RecItem View recommended items
Key 18 Horizon # 14-110-1582 Description Grid Pack, Pentair PacFab FSH/NS, w/O-Ring, 36 sqft. Price Qty RecItem View recommended items
Key 18 Horizon # 14-110-1583 Description Grid Pack, Pentair PacFab FSH/NS, w/O-Ring, 48 sqft. Price Qty RecItem View recommended items
Key 18 Horizon # Discontinued Description Grid Pack, Pentair PacFab FSH/NS, w/O-Ring, 60 sqft. Price Qty RecItem View recommended items
Key 18 Horizon # 14-110-1585 Description Grid Pack, Pentair PacFab FSH/NS, w/O-Ring, 72 sqft. Price Qty RecItem View recommended items

Not Pictured

Key Horizon # Description Qty
Key Horizon # 14-178-2000 Description DE Grid Set, Pentair/Hayward (7+1), 12" for 24 sqft Filters Price Qty RecItem View recommended items
Key Horizon # 14-178-2005 Description DE Grid Set, Pentair/Hayward, (7+1) 18" for 36 sqft Filters Price Qty RecItem View recommended items
Key Horizon # 14-178-2010 Description DE Grid Set, Pentair/Hayward, (7+1) 24" for 48 sqft Filters Price Qty RecItem View recommended items
Key Horizon # 14-178-2015 Description DE Grid Set, Pentair/Hayward, (7+1) 30" for 60 sqft Filters Price Qty RecItem View recommended items
Key Horizon # 14-178-2020 Description DE Grid Set, Pentair/Hayward, (7+1) 36" for 72 sqft Filters Price Qty RecItem View recommended items
Key Horizon # 14-110-1822 Description Clamp Ring, Pentair PacFab NS Price Qty RecItem View recommended items
Key Horizon # 14-775-2000 Description Grid DE SET,Pleatco, 11" x 12" for 24 sqft,(7 Full + 1 Half) Price Qty RecItem View recommended items
Key Horizon # 14-775-2005 Description Grid DE,SET, Pleatco, 11" x 18" for 36sqft,(7 Full + 1 Half) Price Qty RecItem View recommended items
Key Horizon # 14-775-2010 Description Grid DE,SET, Pleatco, 11" x 24" for 48sqft,(7 Full + 1 Half) Price Qty RecItem View recommended items
Key Horizon # 14-775-2015 Description Grid DE,SET, Pleatco, 11" x 30" for 60sqft,(7 Full + 1 Half) Price Qty RecItem View recommended items
Key Horizon # 14-775-2020 Description Grid DE, Pleatco, 11" x 36" for 72 sqft,(7 Full + 1 Half) Price Qty RecItem View recommended items
Key Horizon # 14-175-2010 Description DE Grid Set, Unicel, 48 sqft, 7 Full + 1 Half Price Qty RecItem View recommended items
Key Horizon # 14-777-2000 Description DE Grid Set, Darlly, 11" x 12" for 24 sqft,(7 Full + 1 Half) Price Qty RecItem View recommended items
Key Horizon # 14-777-2005 Description DE Grid Set, Darlly, 11" x 18" for 36sqft,(7 Full + 1 Half) Price Qty RecItem View recommended items
Key Horizon # 14-777-2010 Description DE Grid Set, Darlly, 11" x 24" for 48sqft,(7 Full + 1 Half) Price Qty RecItem View recommended items
Key Horizon # 14-777-2015 Description DE Grid Set, Darlly, 11" x 30" for 60sqft,(7 Full + 1 Half) Price Qty RecItem View recommended items
Key Horizon # 14-777-2020 Description DE Grid Set, Darlly, 11" x 36" for 72 sqft,(7 Full + 1 Half) Price Qty RecItem View recommended items
