Home  >  Exploded Diagrams  >  Exploded Diagrams  >  Filters  >  16-110-W039

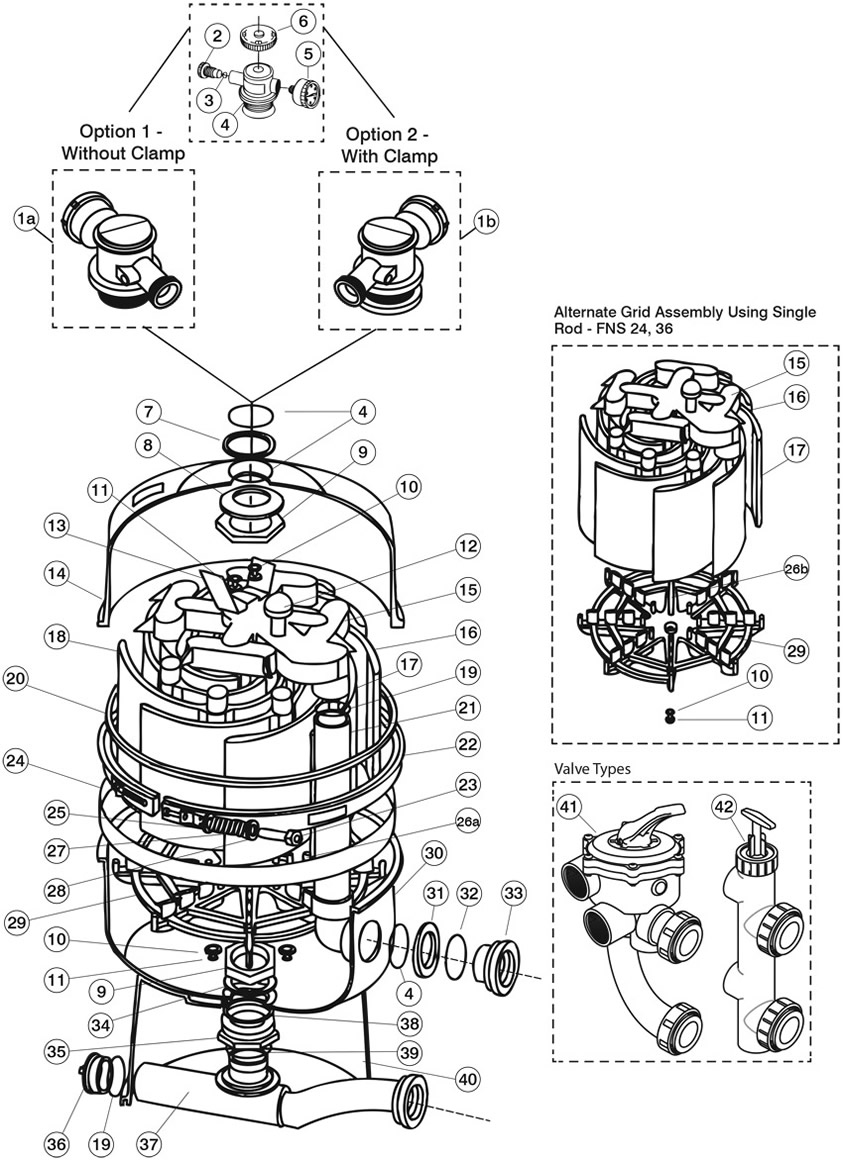

DE Filter, Pentair/PacFab, FNS Polymeric FNS24,36,48,60

Product Description  ·  Complete Valves  ·  Not Pictured  ·  Tools
Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View

Parts

Key Horizon # Description Qty
Key 1a Horizon # 14-102-2154 Description Manual Air Relief Valve, Pentair, Without Clamp Price Qty RecItem View recommended items
Key 1a Horizon # 14-110-1154 Description Manual Air Relief Valve, Pentair Purex PacFab, w/o Clamp Price Qty RecItem View recommended items
Key 1a Horizon # 14-110-1600 Description Manual Air Relief Valve, Pentair PacFab Purex, with Clamp Price Qty RecItem View recommended items
Key 1b Horizon # 14-110-1600 Description Manual Air Relief Valve, Pentair PacFab Purex, with Clamp Price Qty RecItem View recommended items
Key 2 Horizon # 14-110-1732 Description Bleeder, Pentair PacFab, with O-Ring Price Qty RecItem View recommended items
Key 3 Horizon # 90-423-7109 Description O-Ring, 5/16" ID, 3/32" Cross Section, Generic Price Qty RecItem View recommended items
Key 4 Horizon # 90-423-7109 Description O-Ring, 5/16" ID, 3/32" Cross Section, Generic Price Qty RecItem View recommended items
Key 4 Horizon # 90-423-5334 Description O-Ring, 2-5/8" ID, 3/16" Cross Section, Generic Price Qty RecItem View recommended items
Key 5 Horizon # 14-102-1586 Description Pressure Gauge, Pentair, 1/4"mpt, 0-60psi, Back Mount Price Qty RecItem View recommended items
Key 5 Horizon # 14-110-1002 Description Pressure Gauge, Pentair, 1/4"mpt, 0-60psi, Back Mount Price Qty RecItem View recommended items
Key 5 Horizon # 17-555-1018 Description Pressure Gauge, 1/4"mpt, 0-60psi, Back Mount, Generic Price Qty RecItem View recommended items
Key 6 Horizon # Discontinued Description Air Relief Cap, Pentair PacFab FNS/NS Price Qty RecItem View recommended items
Key 7 Horizon # Discontinued Description Spacer, Pentair, Tank Lid, Black Price Qty RecItem View recommended items
Key 8 Horizon # 14-110-1606 Description Spacer, Pentair PacFab NS/Sea Horse/FNS, blk Price Qty RecItem View recommended items
Key 9 Horizon # 14-102-2402 Description Internal Locknut, Pentair, 2" Price Qty RecItem View recommended items
Key 9 Horizon # 14-110-1156 Description Internal Locknut, Pentair Purex PacFab, 2" Price Qty RecItem View recommended items
Key 10 Horizon # 14-110-1704 Description Lock Washer, Pentair PacFab FNS/NS, 5/16" Price Qty RecItem View recommended items
Key 11 Horizon # 14-110-1702 Description Nut, Pentair PacFab FNS/NS, 5/16-18 Price Qty RecItem
Key 12 Horizon # 14-110-1728 Description Air Relief Strainer, Pentair PacFab Price Qty RecItem View recommended items
Key 13 Horizon # Discontinued Description Bracket, Pentair PacFab FNS Price Qty RecItem View recommended items
Key 14 Horizon # Discontinued Description Tank Lid, Pentair PacFab FNS, 24/36 sqft, Tan Price Qty RecItem View recommended items
Key 14 Horizon # Discontinued Description Tank Lid, Pentair PacFab FNS, 48 sqft, Tan Price Qty RecItem View recommended items
Key 14 Horizon # Discontinued Description Tank Lid, Pentair PacFab FNS, 60 sqft, Tan Price Qty RecItem View recommended items
Key 14 Horizon # Discontinued Description Tank Lid, Pentair PacFab FNS, 24/36 sqft Price Qty RecItem View recommended items
Key 14 Horizon # Discontinued Description Tank Lid, Pentair PacFab FNS, 48 sqft Price Qty RecItem View recommended items
Key 14 Horizon # Discontinued Description Tank Lid, Pentair PacFab FNS, 60 sqft Price Qty RecItem View recommended items
Key 14 Horizon # Discontinued Description Tank Lid, Pentair PacFab FNS, 24/36 sqft, Black Price Qty RecItem View recommended items
Key 14 Horizon # Discontinued Description Tank Lid, Pentair PacFab FNS, 48 sqft, Black Price Qty RecItem View recommended items
Key 14 Horizon # Discontinued Description Tank Lid, Pentair PacFab FNS, 60 sqft, Black Price Qty RecItem View recommended items
Key 15 Horizon # Discontinued Description Grid Manifold Assembly, Pentair PacFab FNS, with Extension Price Qty RecItem View recommended items
Key 16 Horizon # 14-176-1000 Description DE Grid, Pentair/Hayward, Full, 12" x 11", for 24 sqft Price Qty RecItem View recommended items
Key 16 Horizon # 14-176-1005 Description DE Grid, Pent/Hayward/Jacuzzi/Zod, Full, 18"x11",for 36 sqft Price Qty RecItem View recommended items
Key 16 Horizon # 14-176-1010 Description DE Grid, Pent/Hayward/Jacuzzi/Zod, Full, 24"x11",for 48 sqft Price Qty RecItem View recommended items
Key 16 Horizon # 14-176-1015 Description DE Grid, Pent/Hayward/Jacuzzi/Zod, Full, 30"x11",for 60 sqft Price Qty RecItem View recommended items
Key 16 Horizon # 14-775-1000 Description Grid DE, Pleatco, 12" x 11" for 24 Sqft , Full Price Qty RecItem View recommended items
Key 16 Horizon # Discontinued Description Grid DE, Pleatco, 18" x 11" for 36 Sqft, Full Price Qty RecItem View recommended items
Key 16 Horizon # Discontinued Description Grid DE, Pleatco,24" x 11" for 48 sqft , Full Price Qty RecItem View recommended items
Key 16 Horizon # Discontinued Description Grid DE, Pleatco, 30" x 11" for 30 sqft , Full Price Qty RecItem View recommended items
Key 16 Horizon # 14-775-1020 Description Grid DE, Pleatco,36" x 11" for 72 sqft , Full Price Qty RecItem View recommended items
Key 16 Horizon # 14-777-1000 Description Grid DE, Full, Darlly, 12" x 11" for 24 Sqft Price Qty RecItem View recommended items
Key 16 Horizon # 14-777-1005 Description Grid DE, Full, Darlly, 18" x 11" for 36 Sqft Price Qty RecItem View recommended items
Key 16 Horizon # 14-777-1010 Description Grid DE, Full, Darlly, 24" x 11" for 48 sqft Price Qty RecItem View recommended items
Key 16 Horizon # 14-777-1015 Description Grid DE, Full, Darlly, 30" x 11" for 30 sqft Price Qty RecItem View recommended items
Key 16 Horizon # 14-777-1020 Description Grid DE, Full, Darlly, 36" x 11" for 72 sqft Price Qty RecItem View recommended items
Key 17 Horizon # 14-176-1025 Description DE Grid, Pentair/Hayward, Partial, 12" x 9-3/4", for 24 sqft Price Qty RecItem View recommended items
Key 17 Horizon # 14-176-1030 Description DE Grid, Pentair/Hayward/WW, Partial, 18"x9-3/4",for 36 sqft Price Qty RecItem View recommended items
Key 17 Horizon # 14-176-1035 Description DE Grid, Pent/Hayward/WW/Zod Partial, 24"x9-3/4",for 48 sqft Price Qty RecItem View recommended items
Key 17 Horizon # 14-176-1040 Description DE Grid, Pent/Hayward/WW/Zod, Partial,30"x9-3/4",for 60 sqft Price Qty RecItem View recommended items
Key 17 Horizon # 14-775-1025 Description Grid DE, Pleatco,9-3/4" x 12" for 24 sqft, Half Price Qty RecItem View recommended items
Key 17 Horizon # Discontinued Description Grid DE, Pleatco, 9-3/4" x 18" for 36 sqft , Half Price Qty RecItem View recommended items
Key 17 Horizon # 14-775-1035 Description DE Grid, Pleatco, Partial, 24"x9-3/4",for 48 sqft Price Qty RecItem View recommended items
Key 17 Horizon # Discontinued Description Grid DE, Pleatco, 9-3/4" x 30" for 60 sqft , Half Price Qty RecItem View recommended items
Key 17 Horizon # 14-777-1025 Description Grid DE, Partial, Darlly, 9-3/4" x 12" for 24 sqft Price Qty RecItem View recommended items
Key 17 Horizon # 14-777-1030 Description Grid DE, Darlly, Partial, 9-3/4" x 18" for 36 sqft Price Qty RecItem View recommended items
Key 17 Horizon # 14-777-1035 Description DE Grid, Partial, Darlly, 24" x 9-3/4", for 48 sqft Price Qty RecItem View recommended items
Key 17 Horizon # 14-777-1040 Description Grid DE, Partial, Darlly, 9-3/4" x 30" for 60 sqft Price Qty RecItem View recommended items
Key 18 Horizon # _195182 Description Grd Asy Fns24 Complt Price Qty RecItem View recommended items
Key 18 Horizon # Discontinued Description Grid Pack, Pentair PacFab FSH/NS, w/O-Ring, 24 sqft. Price Qty RecItem View recommended items
Key 18 Horizon # 14-110-1582 Description Grid Pack, Pentair PacFab FSH/NS, w/O-Ring, 36 sqft. Price Qty RecItem View recommended items
Key 18 Horizon # 14-110-1583 Description Grid Pack, Pentair PacFab FSH/NS, w/O-Ring, 48 sqft. Price Qty RecItem View recommended items
Key 18 Horizon # Discontinued Description Grid Pack, Pentair PacFab FSH/NS, w/O-Ring, 60 sqft. Price Qty RecItem View recommended items
Key 18 Horizon # Discontinued Description Grid Assembly, Pentair PacFab FNS, 36 sqft Price Qty RecItem View recommended items
Key 18 Horizon # 14-110-4002 Description Grid Assembly, Pentair PacFab FNS, 48 sqft Price Qty RecItem View recommended items
Key 18 Horizon # Discontinued Description Grid Assembly, Pentair PacFab FNS, 60 sqft Price Qty RecItem View recommended items
Key 18 Horizon # 14-178-2000 Description DE Grid Set, Pentair/Hayward (7+1), 12" for 24 sqft Filters Price Qty RecItem View recommended items
Key 18 Horizon # 14-178-2005 Description DE Grid Set, Pentair/Hayward, (7+1) 18" for 36 sqft Filters Price Qty RecItem View recommended items
Key 18 Horizon # 14-178-2010 Description DE Grid Set, Pentair/Hayward, (7+1) 24" for 48 sqft Filters Price Qty RecItem View recommended items
Key 18 Horizon # 14-178-2015 Description DE Grid Set, Pentair/Hayward, (7+1) 30" for 60 sqft Filters Price Qty RecItem View recommended items
Key 18 Horizon # 14-777-2000 Description DE Grid Set, Darlly, 11" x 12" for 24 sqft,(7 Full + 1 Half) Price Qty RecItem View recommended items
Key 18 Horizon # 14-777-2005 Description DE Grid Set, Darlly, 11" x 18" for 36sqft,(7 Full + 1 Half) Price Qty RecItem View recommended items
Key 18 Horizon # 14-777-2010 Description DE Grid Set, Darlly, 11" x 24" for 48sqft,(7 Full + 1 Half) Price Qty RecItem View recommended items
Key 18 Horizon # 14-777-2015 Description DE Grid Set, Darlly, 11" x 30" for 60sqft,(7 Full + 1 Half) Price Qty RecItem View recommended items
Key 19 Horizon # 90-423-5139 Description O-Ring, Buna-N, 2-3/16" ID, 3/32" CrossSection, Generic Price Qty RecItem View recommended items
Key 20 Horizon # 14-110-1640 Description O-Ring, PentairPacFab Sea Horse/FNS, Tank Body, O-420 Price Qty RecItem View recommended items
Key 20 Horizon # 90-423-1420 Description O-Ring, 19-1/8" ID, 3/8" Cross Section, Generic, O-420 Price Qty RecItem View recommended items
Key 21 Horizon # Discontinued Description Standpipe, Pentair PacFab FNS, 24 sqft Price Qty RecItem View recommended items
Key 21 Horizon # Discontinued Description Standpipe, Pentair PacFab FNS 36/FSH 300 Price Qty RecItem View recommended items
Key 21 Horizon # Discontinued Description Standpipe, Pentair PacFab FNS 48/FSH 400 Price Qty RecItem View recommended items
Key 21 Horizon # Discontinued Description Standpipe, Pentair PacFab FNS 60/FSH 500 Price Qty RecItem View recommended items
Key 22 Horizon # 14-110-1636 Description Clamp Ring, Pentair PacFab FNS/FSH, Tank Body Price Qty RecItem View recommended items
Key 22 Horizon # Discontinued Description Clamp Ring, Pentair PacFab FNS, Pre 1993 Price Qty RecItem View recommended items
Key 23 Horizon # Discontinued Description Nut, Pentair PacFab FSH/FNS/Quad Price Qty RecItem View recommended items
Key 24 Horizon # 14-110-1642 Description Back Up Ring, Pentair PacFab FNS/FSH Price Qty RecItem View recommended items
Key 25 Horizon # 14-102-2400 Description Washer, Pentair CNCP/FNSP/Quad DE/FullFloXF,Sm ID,For Clamp Price Qty RecItem View recommended items
Key 25 Horizon # 14-110-1710 Description Washer, Pentair PacFab FSH/FNS/Quad, Small ID Price Qty RecItem View recommended items
Key 26A Horizon # 14-110-1644 Description Center Rod, Val-Pak, NS/FNS, 5/16" x 15-1/2" Price Qty RecItem View recommended items
Key 26A Horizon # Discontinued Description Center Rod, Pentair PacFab NS/FNS, 5/16" x 21-1/2" Price Qty RecItem View recommended items
Key 26A Horizon # 14-110-1648 Description Center Rod, Pentair PacFab NS/FNS, 5/16" x 28" Price Qty RecItem View recommended items
Key 26A Horizon # 14-110-1650 Description Center Rod, Pentair PacFab NS/FNS, 5/16" x 33-3/4" Price Qty RecItem View recommended items
Key 26B Horizon # 14-110-1652 Description Center Rod, Pentair PacFab FNS36, 5/16" x 19" Price Qty RecItem View recommended items
Key 26B Horizon # 14-110-1654 Description Center Rod, Pentair PacFab FNS24, 5/16" x 13" Price Qty RecItem View recommended items
Key 27 Horizon # 14-110-1712 Description Spring, Pentair PacFab FSH/FNS/Quad Price Qty RecItem View recommended items
Key 28 Horizon # 14-110-1714 Description Washer, Pentair PacFab FSH/FNS/Quad, Large ID Price Qty RecItem View recommended items
Key 29 Horizon # 14-110-1643 Description Retainer, Pentair PacFab FNS, 19-17/64" Price Qty RecItem View recommended items
Key 29 Horizon # 14-110-1708 Description Retainer, Pentair PacFab FNS Price Qty RecItem View recommended items
Key 30 Horizon # Discontinued Description Tank Body, Pentair PacFab FNS24, Black Price Qty RecItem View recommended items
Key 30 Horizon # Discontinued Description Tank Body, Pentair PacFab FNS36/48/60, Black Price Qty RecItem View recommended items
Key 30 Horizon # Discontinued Description Tank Body, Pentair PacFab FNS24, Tan Price Qty RecItem View recommended items
Key 30 Horizon # Discontinued Description Tank Body, Pentair PacFab FNS36/48/60, Tan Price Qty RecItem View recommended items
Key 30 Horizon # Discontinued Description Tank Body, Pentair PacFab FNS24, Black Price Qty RecItem View recommended items
Key 30 Horizon # Discontinued Description Tank Body, Pentair PacFab FNS36, Black Price Qty RecItem View recommended items
Key 30 Horizon # Discontinued Description Tank Body, Pentair PacFab FNS48, Black Price Qty RecItem View recommended items
Key 30 Horizon # Discontinued Description Tank Body, Pentair PacFab FNS60, Black Price Qty RecItem View recommended items
Key 30 Horizon # Discontinued Description Tank Body, Pentair PacFab FNS24, Tan Price Qty RecItem View recommended items
Key 30 Horizon # Discontinued Description Tank Body, Pentair PacFab FNS36, Tan Price Qty RecItem View recommended items
Key 30 Horizon # Discontinued Description Tank Body, Pentair PacFab FNS48, Tan Price Qty RecItem View recommended items
Key 30 Horizon # Discontinued Description Tank Body, Pentair PacFab FNS60, Tan Price Qty RecItem View recommended items
Key 31 Horizon # Discontinued Description External Spacer, Pentair PacFab NS/Sea Horse/FNS Price Qty RecItem View recommended items
Key 32 Horizon # 14-110-1640 Description O-Ring, PentairPacFab Sea Horse/FNS, Tank Body, O-420 Price Qty RecItem View recommended items
Key 32 Horizon # 90-423-1420 Description O-Ring, 19-1/8" ID, 3/8" Cross Section, Generic, O-420 Price Qty RecItem View recommended items
Key 33 Horizon # 14-102-2414 Description Bulkhead, Pentair FNS, 2-3/8", After 11/98 Price Qty RecItem
Key 33 Horizon # 14-110-1800 Description Bulkhead, Pentair Am Products PacFab, 2-3/8", After 11/98 Price Qty RecItem View recommended items
Key 34 Horizon # 14-110-1698 Description Adapter Washer, Pentair PacFab Price Qty RecItem View recommended items
Key 35 Horizon # 14-110-1694 Description Adapter, Pentair PacFab FSH/FNS, 6" Price Qty RecItem View recommended items
Key 36 Horizon # 14-110-1690 Description Drain Plug, Pentair PacFab FSH/FNS/NS Price Qty RecItem View recommended items
Key 37 Horizon # Discontinued Description Pipe Assembly, Pentair PacFab Sea Horse FSH/FNS Price Qty RecItem View recommended items
Key 38 Horizon # 90-423-5256 Description O-Ring, 5-3/4" ID, 1/8" Cross Section, Generic,O-108 Price Qty RecItem View recommended items
Key 39 Horizon # 90-423-5332 Description O-Ring, 2-3/8" ID, 3/16" Cross Section, Generic Price Qty RecItem View recommended items
Key 40 Horizon # 14-110-1488 Description Tank Base, Pentair PacFab FNS/FSH Price Qty RecItem View recommended items
Key Horizon # Discontinued Description Spring Fns Clamp Parts After 1/89 Price Qty RecItem View recommended items
Key Horizon # _192165 Description Tube Breather, Pentair FNS Polymeric Price Qty RecItem View recommended items

Complete Valves

Key Horizon # Description Qty
Key 41 Horizon # 26-102-1506 Description Multiport Valve, Pacfab/Pentair Hi-flow DE Filter, 2" Slip Price Qty RecItem View recommended items
Key 41 Horizon # 26-102-1508 Description Multiport Valve, Pacfab/Pentair DE Filter, 2" Thd, 8 Pos Price Qty RecItem View recommended items
Key 41 Horizon # 26-253-1170 Description Multiport Valve, Praher SM1-PP2, 1-1/2", w/PacFab Plumbing Price Qty RecItem View recommended items
Key 41 Horizon # 26-253-1175 Description Multiport Valve, Praher SM2-PP2, 2", with PacFab Plumbing Price Qty RecItem View recommended items
Key 42 Horizon # 26-110-1500 Description Push Pull Valve, Pentair PacFab, 2" Slip, PVC Price Qty RecItem View recommended items

Tools

Key Horizon # Description Qty
Key Horizon # Discontinued Description Bulkhead Wrench, Pentair PacFab Mytilus/FNS Price Qty RecItem View recommended items
Key Horizon # 99-615-1002 Description Tool, Button-Hook, Drain Plug Wrench, Stainless Steel Price Qty RecItem View recommended items
Key Horizon # 99-615-1020 Description Tool, Socket, Double-Hex, 9/16 and 7/8, with 1.48well Price Qty RecItem View recommended items
