Home  >  Exploded Diagrams  >  Exploded Diagrams  >  Filters  >  16-110-W035

DE Filter, Pentair/American Products, Warrior

Product Description  ·  Parts
Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View

Product Description

Note:

-Part #14-110-3258 and #14-110-3260 are used on filters manufactured before 11/98



-Part #14-110-1548 are used on filters manufactured after 11/98

Parts

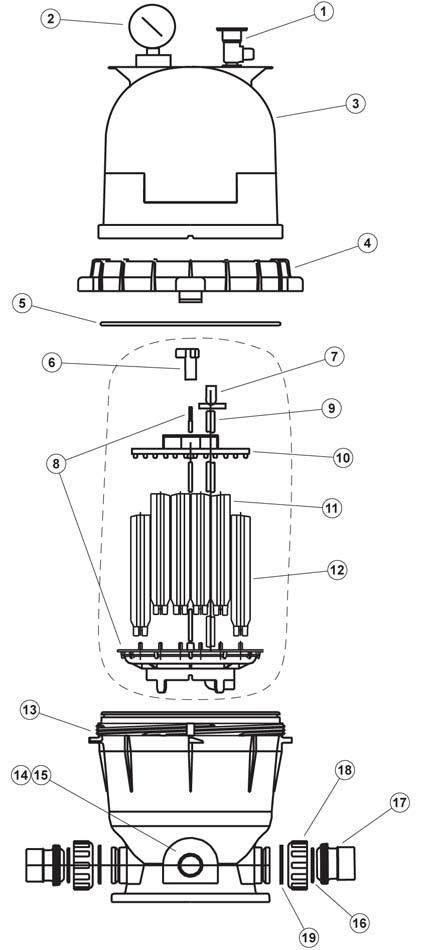

Key Horizon # Description Qty
Key 1 Horizon # 17-110-1025 Description Air Relief, Pent Am Prod/Purex/PacFab, Manual, w/Gauge Price Qty RecItem View recommended items
Key 2 Horizon # 17-102-2129 Description Pressure Gauge,Pentair,1/4"mpt,0-60psi,Bottom Mount,Adj Face Price Qty RecItem View recommended items
Key 2 Horizon # Discontinued Description Pressure Gauge,Pentair,1/4"mpt,0-60psi,Bottom Mount,Adj Face Price Qty RecItem View recommended items
Key 3 Horizon # Discontinued Description Tank Lid, Pentair American Products Warrior 44/88, Black Price Qty RecItem View recommended items
Key 3 Horizon # 14-110-3217 Description Tank Lid, Pentair American Products Warrior 44/88, Almond Price Qty RecItem View recommended items
Key 3 Horizon # Discontinued Description Tank Lid, Pentair American Products Warrior 66, Black Price Qty RecItem View recommended items
Key 3 Horizon # 14-110-3222 Description Tank Lid, Pentair American Products Warrior 66, Almond Price Qty RecItem View recommended items
Key 4 Horizon # 14-110-3226 Description Lock Ring, Pentair American Products Warrior Price Qty RecItem View recommended items
Key 5 Horizon # 90-423-5452 Description O-Ring, Buna-N, 11-1/2" ID, 1/4" Cross Section, Generic Price Qty RecItem View recommended items
Key 6 Horizon # 35-110-1342 Description Knob, Pent Am Prod UltraFlow/Bronze, Clamp Ring Price Qty RecItem View recommended items
Key 7 Horizon # 14-110-3231 Description Air Bleed Filter, Pentair American Products CC/Warrior Price Qty RecItem View recommended items
Key 8 Horizon # Discontinued Description Manifold/Tie Rod Assy, Pent Am Prod Warrior 44 Price Qty RecItem View recommended items
Key 8 Horizon # 14-110-3239 Description Manifold/Tie Rod Assy, Pent Am Prod Warrior 88 Price Qty RecItem View recommended items
Key 9 Horizon # 14-110-3242 Description Bleed Tube, Pentair American Products Warrior 44 Price Qty RecItem View recommended items
Key 9 Horizon # 14-110-3244 Description Bleed Tube, Pentair American Products Warrior 66 Price Qty RecItem View recommended items
Key 9 Horizon # Discontinued Description Bleed Tube, Pentair American Products Warrior 88 Price Qty RecItem View recommended items
Key 10 Horizon # 14-110-3008 Description Grid Support, Pentair American Products Warrior Price Qty RecItem View recommended items
Key 11 Horizon # 14-110-3275 Description DE Grid, Am Prod/Pent, Warrior 44, 16" x 9" Large Price Qty RecItem View recommended items
Key 11 Horizon # 14-110-3277 Description DE Grid, Am Prod/Pent, Warrior 66, 24" x 9" Large Price Qty RecItem View recommended items
Key 11 Horizon # 14-110-3279 Description DE Grid, Am Prod/Pent, Warrior 88, 36" x 9" Large Price Qty RecItem View recommended items
Key 12 Horizon # 14-110-3281 Description DE Grid, Am Prod/Pent, Warrior 44, 16" x 7-1/2" Small Price Qty RecItem View recommended items
Key 12 Horizon # 14-110-3283 Description DE Grid, Am Prod/Pent, Warrior 66, 24" x 7-1/2" Small Price Qty RecItem View recommended items
Key 12 Horizon # 14-110-3285 Description DE Grid, Am Prod/Pent, Warrior 88, 36" x 7-1/2" Small Price Qty RecItem View recommended items
Key 13 Horizon # Discontinued Description Tank Body, Pent Am Prod Warrior/CC, 50 sqft, Black Price Qty RecItem View recommended items
Key 13 Horizon # 14-110-3250 Description Tank Body, Pent Am Prod Warrior/CC, 50 sqft, Almond Price Qty RecItem View recommended items
Key 13 Horizon # Discontinued Description Tank Body, Pent Am Prod Warrior/CC, 100 sqft, Black Price Qty RecItem View recommended items
Key 13 Horizon # 14-110-3254 Description Tank Body, Pent Am Prod Warrior/CC, 100 sqft, Almond Price Qty RecItem View recommended items
Key 14 Horizon # 14-110-1548 Description Drain Plug, Pentair American Products PacFab, with O-Ring Price Qty RecItem View recommended items
Key 14 Horizon # 14-110-3258 Description Drain Cap, Pentair American Products Warrior/CC Price Qty RecItem View recommended items
Key 15 Horizon # 14-110-3260 Description Gasket, Warrior/CC, Drain Plug, 13/16"ID, 1-5/8"OD Price Qty RecItem View recommended items
Key 15 Horizon # 90-423-5325 Description O-Ring, 1-1/2" ID, 3/16" Cross Section, Generic Price Qty RecItem View recommended items
Key 16 Horizon # 90-423-5228 Description O-Ring, 2-1/4" ID, 1/8" Cross Section, Generic Price Qty RecItem View recommended items
Key 17 Horizon # 89-102-1100 Description Union Body, Pentair Warrior/EasyClean Price Qty RecItem View recommended items
Key 17 Horizon # 89-110-1010 Description Union Body, Pentair, American Products, Purex, Warrior Price Qty RecItem View recommended items
Key 18 Horizon # 89-102-1102 Description Union Nut, Pentair Warrior/EasyClean/Maxim, 1-1/2" Price Qty RecItem View recommended items
Key 18 Horizon # 89-110-1005 Description Union Nut, Pentair, American Products, Purex, Warrior, Maxim Price Qty RecItem View recommended items
Key 19 Horizon # 14-110-3273 Description C Clip, Pentair American Products Warrior/CC, Union Nut Price Qty RecItem View recommended items
Key Horizon # Discontinued Description Pump Union, 1-1/2"fbt x 1-1/2"s, Swivel Price Qty RecItem View recommended items
Key Horizon # _59005800 Description Grid Pak Assy 44 Gpm Price Qty RecItem View recommended items
Key Horizon # _59005900 Description Grid Pack Assy 66 Gpm Price Qty RecItem View recommended items
Key Horizon # _59006000 Description Grid Pack Assy 88 Gpm Price Qty RecItem View recommended items
