Home  >  Exploded Diagrams  >  Exploded Diagrams  >  Filters  >  16-110-W021

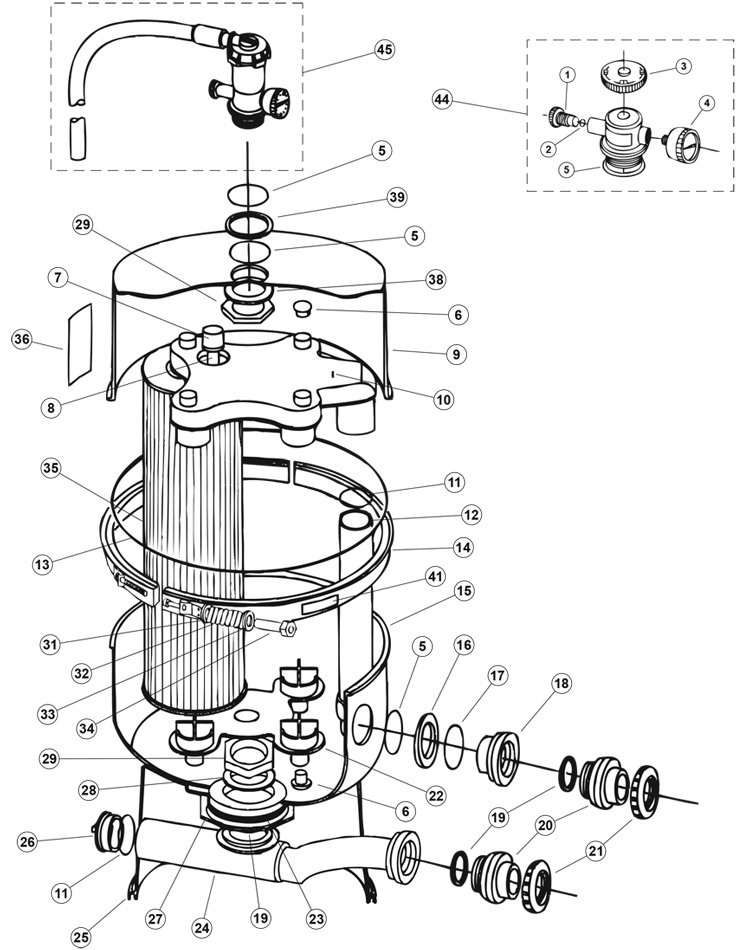

Cartridge Filter, Pentair PacFab, Sea Horse, FSH FG Tank

Product Description  ·  Parts  ·  Tools
Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View

Product Description

Note:

-Part #14-110-1636, 14-110-1710, 14-110-1712, 14-110-1714 and 14-110-1716 - filters manufactured before 06/93 contain a different clamp band assembly (key #14). The correct P/N for these units is 181012. Filters manufactured before 09/92 contain a different non-spring design. Clamp components such as nuts, washer, or bolts are no longer available for these non-spring design clamps. Do not attempt to interchange components between spring design and non-spring design clamps.

-Part #14-110-1581, 14-110-1582, 14-110-1583, 14-110-1584 - filters manufactured before 06/93 contain a different retainer (key #30) which is 5/8" tall. For replacement, order P/N 195073

-Key #9 - Tank tops for this filter are no longer available

-Part #17-110-1720 - filters manufactured before 10/92 utilize a different lower piping assembly P/N 195107. Lower piping P/N 195107 fits 6" adapter P/N 195219 and P/N 195225 only.

-Part #14-110-1694 - filters manufactured before 11/91 utilize a different 6" bottom adapter P/N 195219. This item has a different thread design and will not interchange with adapter P/N 195221 or P/N 195225. Adapter P/N 195219 fits lower piping P/N 195407 only.

Filters manufactured between 11/91 and 10/92 utilize a different 6" bottom adapter P/N 195225. Adapter P/N 195225 fits lower piping P/N 195107 only. Adapter P/N 195225 may be replaced with current design closure only if current low piping P/N 195308 is used.

-Part #14-110-1664, 14-110-1666, 14-110-1668, and 14-110-1670 - filters manufactured before 11/91 utilize a different tan bottom with "V" thread bottom opening, which is no longer available. These bottoms may be replaced with tank bottom with foot and lower piping (key #18)

Parts

Key Horizon # Description Qty
Key 1 Horizon # 14-110-1732 Description Bleeder, Pentair PacFab, with O-Ring Price Qty RecItem View recommended items
Key 2 Horizon # 90-423-7109 Description O-Ring, 5/16" ID, 3/32" Cross Section, Generic Price Qty RecItem View recommended items
Key 3 Horizon # Discontinued Description Air Relief Cap, Pentair PacFab Sea Horse Price Qty RecItem View recommended items
Key 4 Horizon # 14-102-1586 Description Pressure Gauge, Pentair, 1/4"mpt, 0-60psi, Back Mount Price Qty RecItem View recommended items
Key 4 Horizon # 14-110-1002 Description Pressure Gauge, Pentair, 1/4"mpt, 0-60psi, Back Mount Price Qty RecItem View recommended items
Key 5 Horizon # 90-423-5334 Description O-Ring, 2-5/8" ID, 3/16" Cross Section, Generic Price Qty RecItem View recommended items
Key 6 Horizon # Discontinued Description Rubber Bumper, Pentair PacFab Sea Horse FSH Price Qty RecItem
Key 7 Horizon # 14-110-1728 Description Air Relief Strainer, Pentair PacFab Price Qty RecItem View recommended items
Key 8 Horizon # Discontinued Description Bleed Tube, Pentair PacFab Sea Horse FSH Price Qty RecItem
Key 9 Horizon # Discontinued Description Tank Lid, Pentair PacFab Sea Horse FSH300 Price Qty RecItem
Key 9 Horizon # Discontinued Description Tank Lid, Pentair PacFab Sea Horse FSH400 Price Qty RecItem
Key 9 Horizon # Discontinued Description Tank Lid, Pentair PacFab Sea Horse FSH500 Price Qty RecItem
Key 10 Horizon # Discontinued Description Manifold, Pentair PacFab Sea Horse FSH Price Qty RecItem
Key 11 Horizon # 90-423-5139 Description O-Ring, Buna-N, 2-3/16" ID, 3/32" CrossSection, Generic Price Qty RecItem View recommended items
Key 12 Horizon # Discontinued Description Standpipe, Pentair PacFab FNS 36/FSH 300 Price Qty RecItem View recommended items
Key 12 Horizon # Discontinued Description Standpipe, Pentair PacFab FNS 48/FSH 400 Price Qty RecItem View recommended items
Key 12 Horizon # Discontinued Description Standpipe, Pentair PacFab FNS 60/FSH 500 Price Qty RecItem View recommended items
Key 13 Horizon # 14-110-1640 Description O-Ring, PentairPacFab Sea Horse/FNS, Tank Body, O-420 Price Qty RecItem View recommended items
Key 14 Horizon # 14-110-1636 Description Clamp Ring, Pentair PacFab FNS/FSH, Tank Body Price Qty RecItem View recommended items
Key 15 Horizon # Discontinued Description Tank Body, Pentair PacFab FNS36/48/60, Black Price Qty RecItem View recommended items
Key 15 Horizon # Discontinued Description Tank Body, Pentair PacFab Sea Horse FSH/FNS36/48/60 Price Qty RecItem
Key 15 Horizon # Discontinued Description Tank Body, Pentair PacFab Sea Horse FSH300 Price Qty RecItem
Key 15 Horizon # Discontinued Description Tank Body, Pentair PacFab Sea Horse FSH400 Price Qty RecItem
Key 15 Horizon # Discontinued Description Tank Body, Pentair PacFab Sea Horse FSH500 Price Qty RecItem
Key 15 Horizon # Discontinued Description Tank Body, Pentair PacFab Sea Horse FSH300, with Pipe Price Qty RecItem View recommended items
Key 15 Horizon # Discontinued Description Tank Body, Pentair PacFab Sea Horse FSH400, with Pipe Price Qty RecItem View recommended items
Key 15 Horizon # Discontinued Description Tank Body, Pentair PacFab Sea Horse FSH500, with Pipe Price Qty RecItem View recommended items
Key 16 Horizon # Discontinued Description External Spacer, Pentair PacFab NS/Sea Horse/FNS Price Qty RecItem View recommended items
Key 17 Horizon # 14-110-1682 Description O-Ring, Pent PacFab Sea Horse/FNS/Nautilus, Bulkhead, O-409 Price Qty RecItem View recommended items
Key 18 Horizon # 14-102-2414 Description Bulkhead, Pentair FNS, 2-3/8", After 11/98 Price Qty RecItem
Key 18 Horizon # 14-110-1800 Description Bulkhead, Pentair Am Products PacFab, 2-3/8", After 11/98 Price Qty RecItem View recommended items
Key 19 Horizon # 90-423-5332 Description O-Ring, 2-3/8" ID, 3/16" Cross Section, Generic Price Qty RecItem View recommended items
Key 20 Horizon # 17-110-1525 Description Adapter, Pentair PacFab, 2" Price Qty RecItem View recommended items
Key 21 Horizon # 17-110-1527 Description Adapter, Pentair PacFab, 2", 2 required Price Qty RecItem View recommended items
Key 22 Horizon # Discontinued Description Cartridge Support, Pentair PacFab Sea Horse FSH, w/Bumpers Price Qty RecItem
Key 23 Horizon # 90-423-5256 Description O-Ring, 5-3/4" ID, 1/8" Cross Section, Generic,O-108 Price Qty RecItem View recommended items
Key 24 Horizon # Discontinued Description Pipe Assembly, Pentair PacFab Sea Horse FSH/FNS Price Qty RecItem View recommended items
Key 25 Horizon # 14-110-1488 Description Tank Base, Pentair PacFab FNS/FSH Price Qty RecItem View recommended items
Key 26 Horizon # 14-110-1690 Description Drain Plug, Pentair PacFab FSH/FNS/NS Price Qty RecItem View recommended items
Key 27 Horizon # 14-110-1694 Description Adapter, Pentair PacFab FSH/FNS, 6" Price Qty RecItem View recommended items
Key 28 Horizon # 14-110-1698 Description Adapter Washer, Pentair PacFab Price Qty RecItem View recommended items
Key 29 Horizon # 14-102-2402 Description Internal Locknut, Pentair, 2" Price Qty RecItem View recommended items
Key 29 Horizon # 14-110-1156 Description Internal Locknut, Pentair Purex PacFab, 2" Price Qty RecItem View recommended items
Key 30 Horizon # 14-110-1642 Description Back Up Ring, Pentair PacFab FNS/FSH Price Qty RecItem View recommended items
Key 31 Horizon # 14-102-2400 Description Washer, Pentair CNCP/FNSP/Quad DE/FullFloXF,Sm ID,For Clamp Price Qty RecItem View recommended items
Key 31 Horizon # 14-110-1710 Description Washer, Pentair PacFab FSH/FNS/Quad, Small ID Price Qty RecItem View recommended items
Key 32 Horizon # 14-110-1712 Description Spring, Pentair PacFab FSH/FNS/Quad Price Qty RecItem View recommended items
Key 33 Horizon # 14-110-1714 Description Washer, Pentair PacFab FSH/FNS/Quad, Large ID Price Qty RecItem View recommended items
Key 34 Horizon # Discontinued Description Nut, Pentair PacFab FSH/FNS/Quad Price Qty RecItem View recommended items
Key 35 Horizon # 17-175-1487 Description Cartridge, 75sqft, 2-5/8"ot, 2-5/8"ob, 7", 18-7/16" 4oz Price Qty RecItem View recommended items
Key 35 Horizon # 17-175-1487PB Description Cartridge, 75sqft, 2-5/8"ot, 2-5/8"ob, 7", 18-7/16", PB Price Qty RecItem View recommended items
Key 35 Horizon # 17-175-1488 Description Cartridge, 100sqft, 2-5/8"ot, 2-5/8"ob, 7", 24-7/16" 4oz Price Qty RecItem View recommended items
Key 35 Horizon # Discontinued Description Cartridge, 125sqft, 2-5/8"ot, 2-5/8"ob, 7", 30-7/16" 4oz Price Qty RecItem View recommended items
Key 35 Horizon # Discontinued Description Cartridge, 75sqft, 2-5/8"ot, 2-5/8"ob, 7", 18-7/16"L, 4oz Price Qty RecItem View recommended items
Key 35 Horizon # Discontinued Description Cartridge, 100sqft, 2-5/8"ot, 2-5/8"ob, 7", 24-7/16"L, 4oz Price Qty RecItem View recommended items
Key 35 Horizon # Discontinued Description Cartridge, 125sqft, 2-5/8"ot, 2-5/8"ob, 7", 30-7/16"L, 4oz Price Qty RecItem View recommended items
Key 35 Horizon # 17-777-1487 Description Cartridge, 75sqft, 2-5/8"ot, 2-5/8"ob, 7"dia, 18-7/16"L, 4oz Price Qty RecItem
Key 35 Horizon # 17-777-1488 Description Cartridge, 100sqft, 2-5/8"ot, 2-5/8"ob, 7"dia, 24-3/4"L, 4oz Price Qty RecItem
Key 38 Horizon # 14-110-1606 Description Spacer, Pentair PacFab NS/Sea Horse/FNS, blk Price Qty RecItem View recommended items
Key 39 Horizon # 17-110-1583 Description Top Spacer, Pentair PacFab Price Qty RecItem View recommended items
Key 41 Horizon # Discontinued Description Warning Label, Pentair PacFab Sea Horse, Clamp Ring, 2 req Price Qty RecItem View recommended items
Key 44 Horizon # 14-102-2154 Description Manual Air Relief Valve, Pentair, Without Clamp Price Qty RecItem View recommended items
Key 44 Horizon # 14-110-1154 Description Manual Air Relief Valve, Pentair Purex PacFab, w/o Clamp Price Qty RecItem View recommended items
Key 44 Horizon # 14-110-1600 Description Manual Air Relief Valve, Pentair PacFab Purex, with Clamp Price Qty RecItem View recommended items
Key 45 Horizon # 14-110-1600 Description Manual Air Relief Valve, Pentair PacFab Purex, with Clamp Price Qty RecItem View recommended items

Tools

Key Horizon # Description Qty
Key Horizon # 99-615-1020 Description Tool, Socket, Double-Hex, 9/16 and 7/8, with 1.48well Price Qty RecItem View recommended items
Key Horizon # 99-615-1002 Description Tool, Button-Hook, Drain Plug Wrench, Stainless Steel Price Qty RecItem View recommended items
