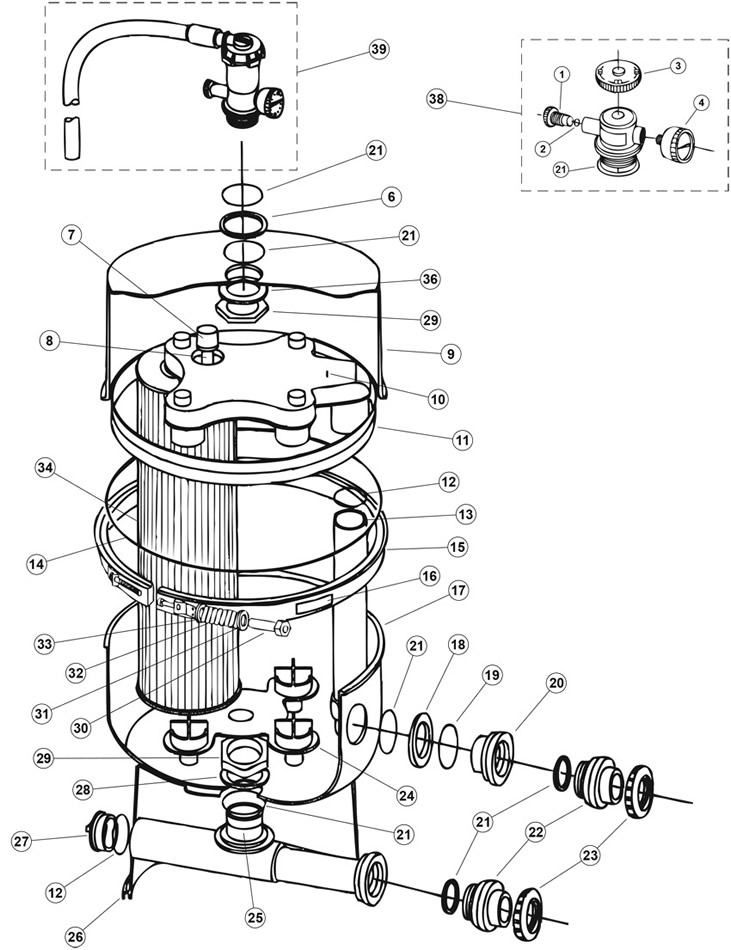

Cartridge Filter, Pentair PacFab Sea Horse SS Tank

Product Description  ·  Parts
Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View

Product Description

Note:

-Part #14-110-1156 - Filters manufactured before 08/92 contain a different air bleeder arrangement. Replacement parts for different air bleeder arrangements may be found on replacement parts diagram for FNS Fiberglass D.E. Filters.

-Part #14-110-1830, 14-110-1832, 14-110-1826, and 14-110-1833 - Filters manufactured before 04/92 contain a different clamp band assembly. Replacement clamp band components are no longer available for these units. Replace obsolete non-spring design clamp band with new spring design clamp band if any components are damaged. Do not attempt to interchange components between the different clamp band designs.

Parts

Key Horizon # Description Qty
Key 1 Horizon # 14-110-1732 Description Bleeder, Pentair PacFab, with O-Ring Price Qty RecItem View recommended items
Key 2 Horizon # 90-423-7109 Description O-Ring, 5/16" ID, 3/32" Cross Section, Generic Price Qty RecItem View recommended items
Key 3 Horizon # Discontinued Description Air Relief Cap, Pentair PacFab Sea Horse Price Qty RecItem View recommended items
Key 4 Horizon # 14-102-1586 Description Pressure Gauge, Pentair, 1/4"mpt, 0-60psi, Back Mount Price Qty RecItem View recommended items
Key 4 Horizon # 14-110-1002 Description Pressure Gauge, Pentair, 1/4"mpt, 0-60psi, Back Mount Price Qty RecItem View recommended items
Key 6 Horizon # 17-110-1583 Description Top Spacer, Pentair PacFab Price Qty RecItem View recommended items
Key 7 Horizon # 14-110-1728 Description Air Relief Strainer, Pentair PacFab Price Qty RecItem View recommended items
Key 8 Horizon # Discontinued Description Bleed Tube, Pentair PacFab Sea Horse Price Qty RecItem
Key 9 Horizon # Discontinued Description Tank Lid, Pentair PacFab Sea Horse 300/500 Price Qty RecItem View recommended items
Key 9 Horizon # Discontinued Description Tank Lid, Pentair PacFab Sea Horse 400 Price Qty RecItem View recommended items
Key 9 Horizon # Discontinued Description Tank Lid, Pentair PacFab Sea Horse 300/500, with Air Price Qty RecItem View recommended items
Key 9 Horizon # Discontinued Description Tank Lid, Pentair PacFab Sea Horse 400, with Air Price Qty RecItem View recommended items
Key 10 Horizon # Discontinued Description Manifold, Pentair PacFab Sea Horse Price Qty RecItem
Key 11 Horizon # Discontinued Description Retaining Ring, Pentair PacFab NS, 18" Price Qty RecItem View recommended items
Key 12 Horizon # 90-423-5139 Description O-Ring, Buna-N, 2-3/16" ID, 3/32" CrossSection, Generic Price Qty RecItem View recommended items
Key 13 Horizon # Discontinued Description Outlet Pipe Assembly, Pentair PacFab NS36, Upper Price Qty RecItem View recommended items
Key 13 Horizon # Discontinued Description Outlet Pipe Assembly, Pentair PacFab NS48, Upper Price Qty RecItem View recommended items
Key 13 Horizon # Discontinued Description Outlet Pipe Assembly, Pentair PacFab NS60, Upper Price Qty RecItem View recommended items
Key 14 Horizon # 14-110-1782 Description O-Ring, Pent/PacFab, Sea Horse/Nautilus, 18"Tank Body, O-184 Price Qty RecItem View recommended items
Key 15 Horizon # 14-110-1822 Description Clamp Ring, Pentair PacFab NS Price Qty RecItem View recommended items
Key 16 Horizon # Discontinued Description Warning Label, Pentair PacFab Sea Horse, Clamp Ring, 2 req Price Qty RecItem View recommended items
Key 17 Horizon # Discontinued Description Tank Body, Pentair PacFab Sea Horse 300 Price Qty RecItem View recommended items
Key 17 Horizon # Discontinued Description Tank Body, Pentair PacFab Sea Horse 400 Price Qty RecItem View recommended items
Key 17 Horizon # Discontinued Description Tank Body, Pentair PacFab Sea Horse 500 Price Qty RecItem View recommended items
Key 17 Horizon # Discontinued Description Tank Body, Pentair PacFab Sea Horse 300, with Pipe Price Qty RecItem View recommended items
Key 17 Horizon # Discontinued Description Tank Body, Pentair PacFab Sea Horse 400, with Pipe Price Qty RecItem View recommended items
Key 17 Horizon # Discontinued Description Tank Body, Pentair PacFab Sea Horse 500, with Pipe Price Qty RecItem View recommended items
Key 18 Horizon # Discontinued Description External Spacer, Pentair PacFab NS/Sea Horse/FNS Price Qty RecItem View recommended items
Key 19 Horizon # 14-110-1682 Description O-Ring, Pent PacFab Sea Horse/FNS/Nautilus, Bulkhead, O-409 Price Qty RecItem View recommended items
Key 20 Horizon # 14-102-2414 Description Bulkhead, Pentair FNS, 2-3/8", After 11/98 Price Qty RecItem
Key 20 Horizon # 14-110-1800 Description Bulkhead, Pentair Am Products PacFab, 2-3/8", After 11/98 Price Qty RecItem View recommended items
Key 21 Horizon # 90-423-5332 Description O-Ring, 2-3/8" ID, 3/16" Cross Section, Generic Price Qty RecItem View recommended items
Key 22 Horizon # 17-110-1525 Description Adapter, Pentair PacFab, 2" Price Qty RecItem View recommended items
Key 23 Horizon # 17-110-1529 Description Adapter Nut, Pentair PacFab, 3-1/2" Price Qty RecItem View recommended items
Key 24 Horizon # Discontinued Description Cartridge Support, Pentair PacFab Sea Horse 400 Price Qty RecItem
Key 25 Horizon # 14-110-1806 Description Pipe Assembly, Pentair PacFab NS, Lower, with Drain Price Qty RecItem View recommended items
Key 26 Horizon # Discontinued Description Tank Base, Pentair PacFab Sea Horse/Nautilus Price Qty RecItem
Key 27 Horizon # 14-110-1690 Description Drain Plug, Pentair PacFab FSH/FNS/NS Price Qty RecItem View recommended items
Key 28 Horizon # 17-110-1578 Description Internal Spacer, Pentair PacFab Price Qty RecItem View recommended items
Key 29 Horizon # 14-102-2402 Description Internal Locknut, Pentair, 2" Price Qty RecItem View recommended items
Key 29 Horizon # 14-110-1156 Description Internal Locknut, Pentair Purex PacFab, 2" Price Qty RecItem View recommended items
Key 30 Horizon # 14-110-1830 Description Clamp Ring Nut, Pentair PacFab NS, Price Qty RecItem View recommended items
Key 31 Horizon # Discontinued Description Washer, Pentair PacFab Sea Horse/NS, .430 i.d, Clamp Ring Price Qty RecItem View recommended items
Key 32 Horizon # 14-110-1826 Description Clamp Ring Spring, Pentair/PacFab NS Price Qty RecItem View recommended items
Key 33 Horizon # Discontinued Description Washer, Pentair PacFab Sea Horse/NS, .320 i.d, Clamp Ring Price Qty RecItem View recommended items
Key 34 Horizon # 17-175-1487 Description Cartridge, 75sqft, 2-5/8"ot, 2-5/8"ob, 7", 18-7/16" 4oz Price Qty RecItem View recommended items
Key 34 Horizon # 17-175-1487PB Description Cartridge, 75sqft, 2-5/8"ot, 2-5/8"ob, 7", 18-7/16", PB Price Qty RecItem View recommended items
Key 34 Horizon # 17-175-1488 Description Cartridge, 100sqft, 2-5/8"ot, 2-5/8"ob, 7", 24-7/16" 4oz Price Qty RecItem View recommended items
Key 34 Horizon # Discontinued Description Cartridge, 125sqft, 2-5/8"ot, 2-5/8"ob, 7", 30-7/16" 4oz Price Qty RecItem View recommended items
Key 34 Horizon # Discontinued Description Cartridge, 75sqft, 2-5/8"ot, 2-5/8"ob, 7", 18-7/16"L, 4oz Price Qty RecItem View recommended items
Key 34 Horizon # Discontinued Description Cartridge, 100sqft, 2-5/8"ot, 2-5/8"ob, 7", 24-7/16"L, 4oz Price Qty RecItem View recommended items
Key 34 Horizon # Discontinued Description Cartridge, 125sqft, 2-5/8"ot, 2-5/8"ob, 7", 30-7/16"L, 4oz Price Qty RecItem View recommended items
Key 34 Horizon # 17-777-1487 Description Cartridge, 75sqft, 2-5/8"ot, 2-5/8"ob, 7"dia, 18-7/16"L, 4oz Price Qty RecItem
Key 34 Horizon # 17-777-1488 Description Cartridge, 100sqft, 2-5/8"ot, 2-5/8"ob, 7"dia, 24-3/4"L, 4oz Price Qty RecItem
Key 36 Horizon # 14-110-1606 Description Spacer, Pentair PacFab NS/Sea Horse/FNS, blk Price Qty RecItem View recommended items
Key 38 Horizon # 14-102-2154 Description Manual Air Relief Valve, Pentair, Without Clamp Price Qty RecItem View recommended items
Key 38 Horizon # 14-110-1154 Description Manual Air Relief Valve, Pentair Purex PacFab, w/o Clamp Price Qty RecItem View recommended items
Key 38 Horizon # 14-110-1600 Description Manual Air Relief Valve, Pentair PacFab Purex, with Clamp Price Qty RecItem View recommended items
Key 39 Horizon # 14-110-1600 Description Manual Air Relief Valve, Pentair PacFab Purex, with Clamp Price Qty RecItem View recommended items
