Home  >  Exploded Diagrams  >  Exploded Diagrams  >  Filters  >  16-110-W007

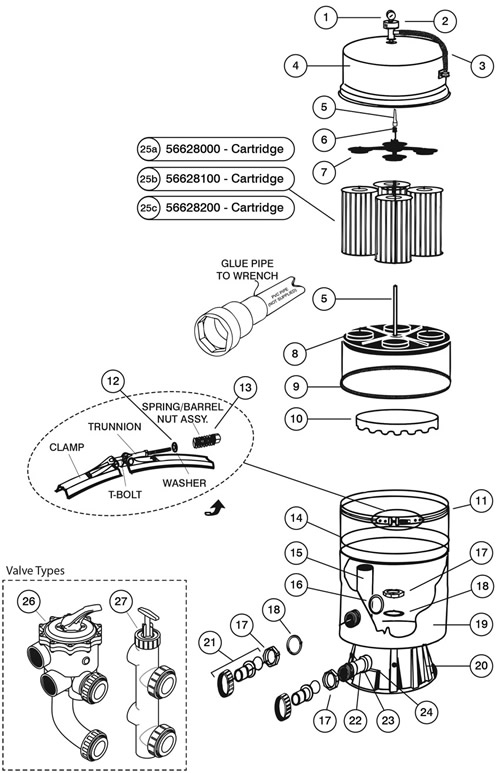

Cartridge Filter, Pentair American, Quantum CM

Product Description  ·  Parts  ·  56628000 - Cartridge, 4 Required  ·  56628100 - Cartridge, 4 Required  ·  56628200 - Cartridge, 4 Required  ·  Complete Valves  ·  Not Pictured
Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View

Product Description

Note:

-Part #14-110-3004 - Upgrades filters manufactured before 07/93

-Part #17-110-1794, 17-110-1798, 17-110-1802 are used on filters manufactured before 05/95

-Part #17-110-1886 and 17-110-1810 are used on filters manufactured after 05/95

Parts

Key Horizon # Description Qty
Key 1 Horizon # 17-102-2129 Description Pressure Gauge,Pentair,1/4"mpt,0-60psi,Bottom Mount,Adj Face Price Qty RecItem View recommended items
Key 1 Horizon # Discontinued Description Pressure Gauge,Pentair,1/4"mpt,0-60psi,Bottom Mount,Adj Face Price Qty RecItem View recommended items
Key 2 Horizon # 14-110-3004 Description Upgrade Kit, Pent Am Prod, High Flow Air Relief Valve Price Qty RecItem View recommended items
Key 2 Horizon # 17-110-1025 Description Air Relief, Pent Am Prod/Purex/PacFab, Manual, w/Gauge Price Qty RecItem View recommended items
Key 3 Horizon # Discontinued Description Air Relief Hose, Pentair/American Products Price Qty RecItem View recommended items
Key 4 Horizon # Discontinued Description Tank Lid, Pentair American Quantum CM, 175 sqft Price Qty RecItem
Key 4 Horizon # Discontinued Description Tank Lid, Pentair American Quantum CM, 350 sqft Price Qty RecItem
Key 4 Horizon # Discontinued Description Tank Lid, Pentair American Quantum CM, 500 sqft Price Qty RecItem
Key 5 Horizon # Discontinued Description Air Bleed Assy, Pentair Am Quantum CM 175 sqft, Upgrade Price Qty RecItem
Key 5 Horizon # Discontinued Description Air Bleed Assy, Pentair Am Quantum CM 350 sqft, Upgrade Price Qty RecItem
Key 5 Horizon # Discontinued Description Air Bleed Assy, Am Prod/Pent, Quantum CM Sandpiper Price Qty RecItem
Key 5 Horizon # Discontinued Description Air Bleed Assembly, Pentair Am Quantum CM 350 sqft Price Qty RecItem
Key 5 Horizon # Discontinued Description Air Bleed Assembly, Pentair Am Quantum CM 500 sqft Price Qty RecItem
Key 5 Horizon # Discontinued Description Air Bleed Assembly, Pentair Am Quantum CM 175 sqft Price Qty RecItem
Key 6 Horizon # Discontinued Description Compression Spring, Pentair American Products/Am Quantum Price Qty RecItem
Key 7 Horizon # Discontinued Description Manifold, Pentair American Quantum SS/CM Price Qty RecItem
Key 7 Horizon # Discontinued Description Manifold, Pentair Am Quantum CM 175 sqft Price Qty RecItem
Key 7 Horizon # Discontinued Description Manifold, Pentair Am Quantum CM 350 sqft Price Qty RecItem
Key 8 Horizon # 17-110-1267 Description Manifold,AmericanProducts/Am Quantum,Bottom,Val-Pak, Generic Price Qty RecItem View recommended items
Key 9 Horizon # 17-110-1276 Description Gasket, CLN/CLR/Quantum, Manifold, 16-3/8"ID, 17-5/8"OD Price Qty RecItem View recommended items
Key 10 Horizon # 17-110-1816 Description Manifold Support Ring, Am Quantum CM, Val-Pak, Generic Price Qty RecItem View recommended items
Key 11 Horizon # Discontinued Description Clamp Ring, Pentair American Products Titan/Quantum CM, 21" Price Qty RecItem View recommended items
Key 12 Horizon # 14-110-1528 Description Washer, Pentair American Products/PacFab Price Qty RecItem View recommended items
Key 13 Horizon # 14-102-1590 Description Barrel Nut/Spring Assembly, Pentair American Products/PacFab Price Qty RecItem View recommended items
Key 13 Horizon # Discontinued Description Barrel Nut/Spring Assembly, Pentair American Products/PacFab Price Qty RecItem View recommended items
Key 14 Horizon # 14-110-3166 Description O-Ring, Tank Body, Generic, O-498 Price Qty RecItem View recommended items
Key 15 Horizon # Discontinued Description Baffle/Bulkhead Assy, Pentair Am Quantum CM 175 sqft Price Qty RecItem
Key 15 Horizon # Discontinued Description Baffle/Bulkhead Assy, Pentair Am Quantum CM 350 sqft Price Qty RecItem View recommended items
Key 16 Horizon # 14-110-3079 Description Gasket, Titan/Sandpiper,Bulkhead,2-5/8"ID,3-9/16"OD,Notched Price Qty RecItem View recommended items
Key 17 Horizon # Discontinued Description Bulkhead Nut, Pentair American Products Titan/Sandpiper Price Qty RecItem View recommended items
Key 18 Horizon # 14-110-3082 Description Gasket, Titan/Sandpiper, Bulkhead, 2-5/8"ID, 3-7/16"OD Price Qty RecItem View recommended items
Key 19 Horizon # Discontinued Description Tank Body, Pentair American Quantum CM, 175 sqft Price Qty RecItem
Key 19 Horizon # Discontinued Description Tank Body, Pentair American Quantum CM, 350/500 sqft Price Qty RecItem
Key 20 Horizon # Discontinued Description Tank Base, Pentair American Products Titan/Sandpiper/Quantum Price Qty RecItem
Key 21 Horizon # 17-110-1827 Description Union Kit, Pentair Am Quantum CM, 1-1/2", 2" Price Qty RecItem View recommended items
Key 22 Horizon # Discontinued Description Pipe Assy, Pent Am Prod Titan/Quantum, Inlet Price Qty RecItem View recommended items
Key 23 Horizon # 90-423-5223 Description O-Ring, 1-5/8" ID, 1/8" Cross Section, Generic Price Qty RecItem View recommended items
Key 24 Horizon # 14-110-3118 Description Winterizing Plug, Pent Am Prod Titan/Quantum/Sandpiper Price Qty RecItem View recommended items

56628000 - Cartridge, 4 Required

Key Horizon # Description Qty
Key 25a Horizon # 17-175-1043 Description Cartridge, 44 sqft, 3"ot, 3"ob, 7", 11-13/16" 4oz Price Qty RecItem View recommended items
Key 25a Horizon # Discontinued Description Cartridge, 44sqft, 3"ot, 3"ob, 7", 11-13/16", 3oz, Slvr Price Qty RecItem View recommended items
Key 25a Horizon # 17-775-1043 Description Cartridge, 44sqft, 3"ot, 3"ob, 7", 11-3/16"L, 4oz Price Qty RecItem View recommended items
Key 25a Horizon # Discontinued Description Cartridge, 44 sqft, 3"ot, 3"ob, 7"dia, 11-13/16"L, 4oz Price Qty RecItem View recommended items

56628100 - Cartridge, 4 Required

Key Horizon # Description Qty
Key 25b Horizon # 17-175-1047 Description Cartridge, 87 sqft, 3"ot, 3"ob, 7", 16-1/2" 4oz Price Qty RecItem View recommended items
Key 25b Horizon # Discontinued Description Cartridge, 87sqft, 3"ot, 3"ob, 7", 16-1/2", 3oz, Slvr Price Qty RecItem View recommended items
Key 25b Horizon # 17-775-1047 Description Cartridge, 88sqft, 3"ot, 3"ob, 7", 16-1/2"L, 4oz Price Qty RecItem View recommended items
Key 25b Horizon # 17-777-1047 Description Cartridge, 88sqft, 3"ot, 3"ob, 7", 16-1/2"L, 4oz Price Qty RecItem View recommended items

56628200 - Cartridge, 4 Required

Key Horizon # Description Qty
Key 25C Horizon # 17-175-1052 Description Cartridge, 125 sqft, 3"ot, 3"ob, 7", 26" 4oz Price Qty RecItem View recommended items
Key 25C Horizon # 17-775-1052 Description Cartridge, 125sqft, 3"ot, 3"ob, 7", 26"L, 4oz Price Qty RecItem View recommended items

Complete Valves

Key Horizon # Description Qty
Key 26 Horizon # 26-253-1185 Description Multiport Valve, Praher SM2-SR2, 2", w/StaRite Plumbing, Blk Price Qty RecItem View recommended items
Key 27 Horizon # 26-102-1516 Description Push Pull Valve, Am Prod/Pent DE Filter, 8" w/Unions Price Qty RecItem View recommended items
Key 27 Horizon # 26-110-1500 Description Push Pull Valve, Pentair PacFab, 2" Slip, PVC Price Qty RecItem View recommended items

Not Pictured

Key Horizon # Description Qty
Key Horizon # Discontinued Description Socket Wrench, Pentair American Products Price Qty RecItem
