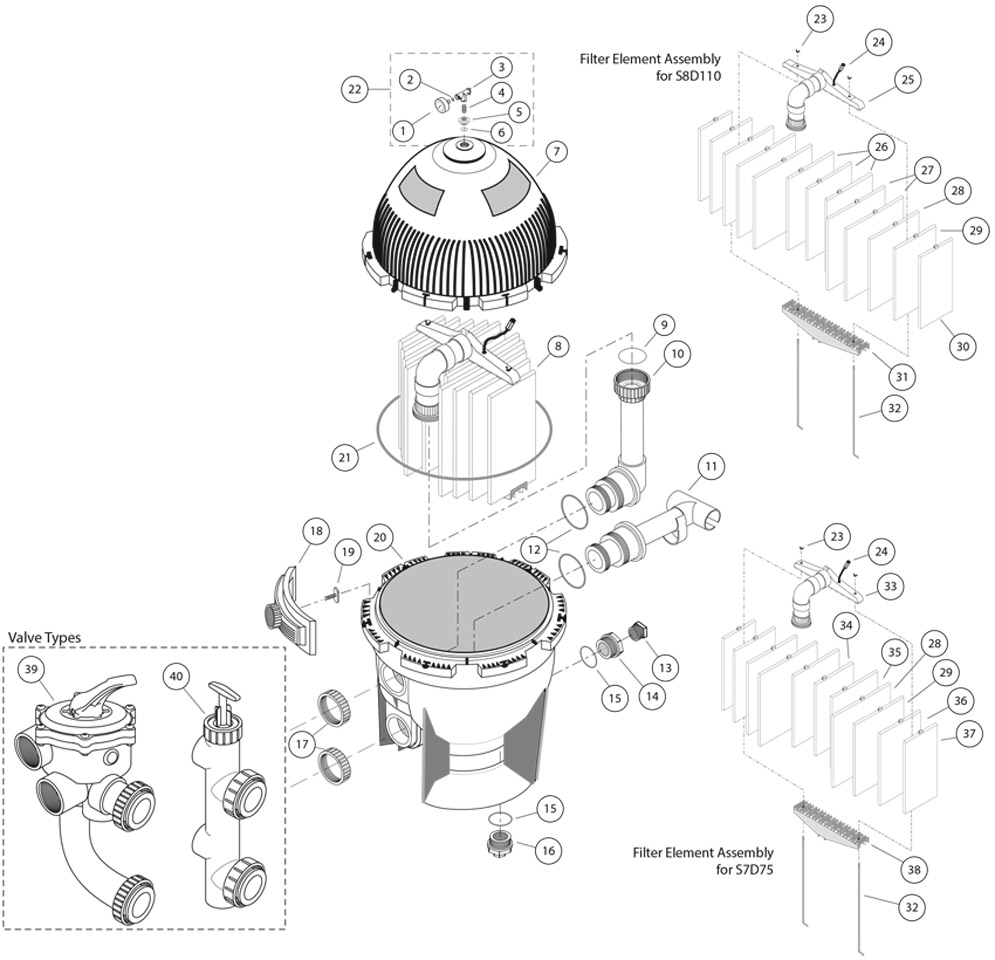

Home  >  Exploded Diagrams  >  Exploded Diagrams  >  Filters  >  16-102-W010

DE Filter, StaRite System 3 SD Series, S7D75 & S8D110

Product Description  ·  Parts  ·  Filter Element Assembly For S8D110  ·  Filter Element Assembly For S7D75  ·  Complete Valves  ·  Not Pictured  ·  Tools
Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View

Product Description

Note:

-Part #17-102-1300 and 17-102-1302 - includes all decals and labels



-Part #17-102-1288 and 17-102-1290 - Model S7D75 uses seven clamps and bolts Model S8D110 uses eight

Parts

Key Horizon # Description Qty
Key 1 Horizon # 17-102-1100 Description Pressure Gauge, Pentair StaRite, 1/4"mpt, 0-60psi,Back Mount Price Qty RecItem View recommended items
Key 2 Horizon # 17-102-1000 Description Pressure Gauge Screen, Pentair Sta-Rite Price Qty RecItem
Key 3 Horizon # Discontinued Description Air Relief Valve, Pentair Sta-Rite Price Qty RecItem View recommended items
Key 4 Horizon # 17-102-1254 Description Nipple, Pentair Sta-Rite System 3, Brass Price Qty RecItem View recommended items
Key 5 Horizon # 17-102-1256 Description Adapter, Pentair Sta-Rite System 3, Bushing Price Qty RecItem View recommended items
Key 5 Horizon # 17-102-2256 Description Adapter Bushing, Pentair Sta-Rite System 3, 21" & 25" Price Qty RecItem
Key 6 Horizon # 17-102-1258 Description O-Ring, Pentair Sta-Rite System 3, Adapter, O-315 Price Qty RecItem View recommended items
Key 6 Horizon # 90-423-5317 Description O-Ring, Buna-N, 15/16" ID, 3/16" Cross Section, Generic Price Qty RecItem View recommended items
Key 7 Horizon # 17-102-1300 Description Tank Lid, Pentair Sta-Rite System 3, All S7 Models, 21" Price Qty RecItem View recommended items
Key 7 Horizon # 17-102-1302 Description Tank Lid, Pentair Sta-Rite System 3, All S8 Models, 25" Price Qty RecItem View recommended items
Key 8 Horizon # 14-102-1310 Description DE Grid, Pentair System 3 SD Series, 75Sqft Price Qty RecItem View recommended items
Key 8 Horizon # 14-102-1312 Description DE Grid, Pentair System 3 SD Series, 110Sqft Price Qty RecItem View recommended items
Key 8 Horizon # 14-176-1500 Description Grid Pack, Sta-Rite, S7D75, 37 sqft Price Qty RecItem View recommended items
Key 8 Horizon # 14-176-1502 Description Grid Pack, Sta-Rite, S8D110, 53 sqft Price Qty RecItem View recommended items
Key 9 Horizon # 89-102-1017 Description O-Ring, Pentair Sta-Rite, Union, O-244 Price Qty RecItem View recommended items
Key 9 Horizon # 90-423-5231 Description O-Ring, 2-5/8" ID, 1/8" Cross Section, Generic Price Qty RecItem View recommended items
Key 10 Horizon # 14-102-1250 Description Outlet Assembly, Pentair Sta-Rite S7D75/S8D110 Price Qty RecItem View recommended items
Key 11 Horizon # 14-102-1252 Description Inlet Assembly, Pentair Sta-Rite, System 3, S7D75 Price Qty RecItem View recommended items
Key 11 Horizon # 14-102-1254 Description Inlet Assembly, Pentair Sta-Rite, System 3, S8D110 Price Qty RecItem View recommended items
Key 12 Horizon # 90-423-5343 Description O-Ring, 3-3/4" ID, 3/16" Cross Section, Generic Price Qty RecItem View recommended items
Key 13 Horizon # 14-102-1256 Description Plug, Pentair Sta-Rite S7D75/S8D110, 1-1/2" Price Qty RecItem View recommended items
Key 14 Horizon # 17-102-1212 Description Adapter, Pentair Sta-Rite System 3, System 2 Pre 10/03 Price Qty RecItem View recommended items
Key 14 Horizon # 17-102-7212 Description Drain Adapter Fitting, Sta-Rite System 3, 1-1/2" x 2" Price Qty RecItem View recommended items
Key 15 Horizon # 17-102-1214 Description O-Ring, Pentair Sta-Rite System 2/System 3, Drain Plug, O-83 Price Qty RecItem View recommended items
Key 15 Horizon # 90-423-5332 Description O-Ring, 2-3/8" ID, 3/16" Cross Section, Generic Price Qty RecItem View recommended items
Key 16 Horizon # 17-102-1284 Description Drain Plug, Pentair Sta-Rite System 3 Price Qty RecItem View recommended items
Key 17 Horizon # 17-102-1286 Description Retaining Nut, Pentair Sta-Rite System 3 Price Qty RecItem View recommended items
Key 18 Horizon # 17-102-1288 Description Clamp Assembly, Pentair Sta-Rite System 3 Price Qty RecItem View recommended items
Key 18 Horizon # 17-102-7288 Description Clamp Assembly, Sta-Rite System 3 SM/SD/SMD/SS Price Qty RecItem View recommended items
Key 19 Horizon # 17-102-1290 Description Bolt, Pentair Sta-Rite System 3, Clamp Assembly Price Qty RecItem View recommended items
Key 19 Horizon # 17-102-7290 Description Clamp Assembly Bolt, Sta-Rite System 3 Price Qty RecItem View recommended items
Key 20 Horizon # 17-102-1292 Description Tank Body, Pentair Sta-Rite System 3, All S7 Models, 21" Price Qty RecItem View recommended items
Key 20 Horizon # 17-102-1294 Description Tank Body, Pentair Sta-Rite System 3, All S8 Models, 25" Price Qty RecItem View recommended items
Key 21 Horizon # 17-102-1296 Description O-Ring,PentairStaRite System 3,S7 Models,21" Tank Body,O-485 Price Qty RecItem View recommended items
Key 21 Horizon # 17-102-1298 Description O-Ring,PentairStaRite System 3,S8 Models,25" Tank Body,O-486 Price Qty RecItem View recommended items
Key 22 Horizon # 17-102-1304 Description Pressure Gauge Assy,Pentair,System 3,1/4"mpt,0-60psi,Back MT Price Qty RecItem View recommended items

Filter Element Assembly For S8D110

Key Horizon # Description Qty
Key 23 Horizon # 14-102-1108 Description Wing Nut, Pentair Sta-Rite, 1/4-20 Price Qty RecItem View recommended items
Key 24 Horizon # 14-102-1258 Description Air Bleed Assembly, Pentair Sta-Rite S7D75/S8D110 Price Qty RecItem View recommended items
Key 25 Horizon # 14-102-1260 Description Collection Manifold, Pentair Sta-Rite S8D110 Price Qty RecItem View recommended items
Key 26 Horizon # 14-176-1150 Description DE Grid, Rectangular, 18" x 16-1/2", Offset Port Price Qty RecItem View recommended items
Key 27 Horizon # 14-176-1105 Description DE Grid, Rectangular, 18" x 19-1/4", Center Port Price Qty RecItem View recommended items
Key 28 Horizon # 14-176-1095 Description DE Grid, Rectangular, 18" x 16-1/2", Center Port Price Qty RecItem View recommended items
Key 29 Horizon # 14-176-1145 Description DE Grid, Rectangular, 18" x 15-3/16", Center Port Price Qty RecItem View recommended items
Key 30 Horizon # 14-176-1080 Description Diatomaceous Earth Grid, Rectangular, 18" x 11", Center Port Price Qty RecItem View recommended items
Key 31 Horizon # 14-102-1262 Description Grid Support, Pentair Sta-Rite S8D110 Price Qty RecItem View recommended items
Key 32 Horizon # 14-102-1106 Description Center Rod, Pentair Sta-Rite DES/DEP Price Qty RecItem View recommended items
Key 32 Horizon # 14-102-2106 Description Center Rod, Pentair Sta-Rite S7D75/S8D110/DES/DEP Price Qty RecItem

Filter Element Assembly For S7D75

Key Horizon # Description Qty
Key 33 Horizon # 14-102-1280 Description Collection Manifold, Pentair Sta-Rite S7D75 Price Qty RecItem View recommended items
Key 34 Horizon # 14-176-1135 Description DE Grid, Rectangular, 18" x 12-7/16", Offset Port Price Qty RecItem View recommended items
Key 35 Horizon # 14-176-1140 Description DE Grid, Rectangular, 18" x 13-13/16", Offset Port Price Qty RecItem View recommended items
Key 36 Horizon # 14-176-1130 Description DE Grid, Rectangular, 18" x 12-7/16", Center Port Price Qty RecItem View recommended items
Key 37 Horizon # 14-176-1125 Description DE Grid, Rectangular, 18" x 9-11/16", Center Port Price Qty RecItem View recommended items
Key 38 Horizon # 14-102-1282 Description Grid Support, Pentair Sta-Rite S7D75 Price Qty RecItem View recommended items

Complete Valves

Key Horizon # Description Qty
Key 39 Horizon # 26-102-1020 Description Multiport Valve, Pentair Sta-Rite, 1-1/2", 6 Pos Price Qty RecItem View recommended items
Key 40 Horizon # 26-102-1060 Description Push Pull Valve, Pentair Sta-Rite, 2" Slip, ABS, New Version Price Qty RecItem View recommended items

Not Pictured

Key Horizon # Description Qty
Key Horizon # 17-102-1306 Description Retaining Ring, Pentair Sta-Rite System 3, Clamp Price Qty RecItem View recommended items
Key Horizon # Discontinued Description Air Bleed Adapter, Pentair Sta-Rite System 3, Brass Price Qty RecItem View recommended items

Tools

Key Horizon # Description Qty
Key Horizon # 99-615-1024 Description Tool, Socket, Dual Geometry for Sta-Rite System 3 Price Qty RecItem View recommended items
Key Horizon # 99-615-1002 Description Tool, Button-Hook, Drain Plug Wrench, Stainless Steel Price Qty RecItem View recommended items
