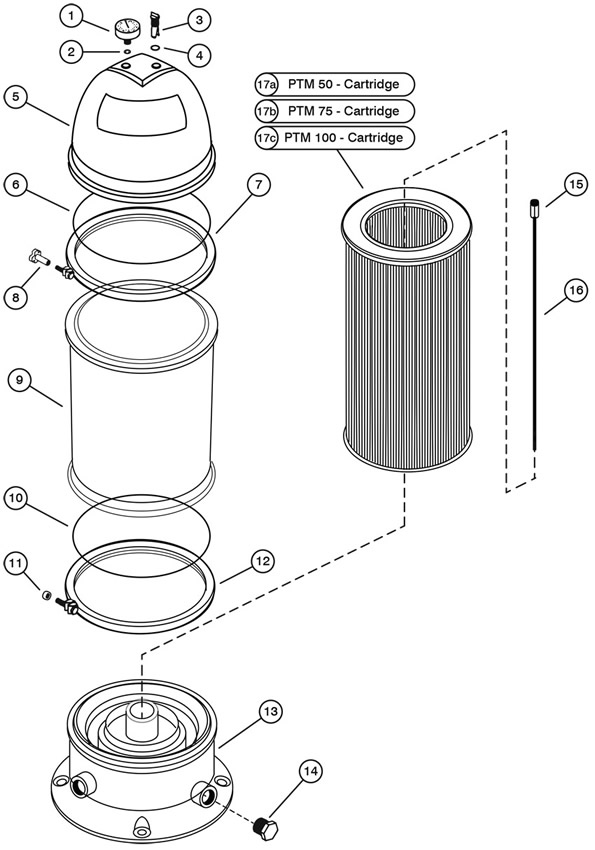

Cartridge Filter,Pentair/StaRite Posi-Flo II,PTM50/70/100

Product Description  ·  Parts  ·  PTM 50 - Cartridge  ·  PTM 75 - Cartridge  ·  PTM 100 - Cartridge  ·  Tools  ·  Not Pictured
Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View

Parts

Key Horizon # Description Qty
Key 1 Horizon # 17-102-1130 Description Pressure Gauge, Pentair StaRite,1/4"mpt,0-60psi,Bottom Mount Price Qty RecItem View recommended items
Key 1 Horizon # 17-555-1010 Description Pressure Gauge, 1/4"mpt, 0-60psi, Bottom Mount, Generic Price Qty RecItem View recommended items
Key 2 Horizon # 17-102-1000 Description Pressure Gauge Screen, Pentair Sta-Rite Price Qty RecItem
Key 3 Horizon # 17-102-1101 Description Air Relief Valve, Pentair Sta-Rite PosiFlo, Without O-Ring Price Qty RecItem View recommended items
Key 3 Horizon # 17-102-1102 Description Air Relief Valve Assembly, Pentair Sta-Rite, with O-Ring Price Qty RecItem View recommended items
Key 3 Horizon # Discontinued Description Tank Lid, Pentair Sta-Rite PosiFlo PTM50, PTM70, PTM135S Price Qty RecItem View recommended items
Key 3 Horizon # Discontinued Description Tank Lid, Pentair Sta-Rite PosiFlo PTM100S Price Qty RecItem
Key 3 Horizon # 17-102-7101 Description Air Relief Valve, Pentair PosiFlo II, w/o O-Ring Price Qty RecItem View recommended items
Key 4 Horizon # 90-423-7112 Description O-Ring, 1/2" ID, 3/32" Cross Section, Generic Price Qty RecItem View recommended items
Key 5 Horizon # Discontinued Description Tank Lid, Pentair Sta-Rite PosiFlo PTM50, PTM70, PTM135S Price Qty RecItem View recommended items
Key 5 Horizon # Discontinued Description Tank Lid, Pentair Sta-Rite PosiFlo PTM100S Price Qty RecItem
Key 6 Horizon # 90-423-5450 Description O-Ring, 10-1/2" ID, 1/4" Cross Section, Generic Price Qty RecItem View recommended items
Key 7 Horizon # Discontinued Description Clamp Ring, Pentair Sta-Rite PosiFloII, w/o Nut, Top/Middle Price Qty RecItem View recommended items
Key 8 Horizon # 17-102-1013 Description Clamp Ring Nut, Pentair Sta-Rite, Plastic Price Qty RecItem View recommended items
Key 9 Horizon # Discontinued Description Tank Body, Pentair Sta-Rite PosiFlo PTM50, PTM70 Price Qty RecItem
Key 10 Horizon # 90-423-5448 Description O-Ring, 9-1/2" ID, 1/4" Cross Section, Generic Price Qty RecItem View recommended items
Key 11 Horizon # 17-102-1112 Description Clamp Ring Nut, Pentair Sta-Rite, Brass Price Qty RecItem View recommended items
Key 12 Horizon # 17-102-1115 Description Clamp Ring, Pentair Sta-Rite PosiFloII,w/o Nut, Bottom Price Qty RecItem View recommended items
Key 13 Horizon # 17-102-1009 Description Tank Base, Pentair Sta-Rite PosiFlo/DE Separation, w/Plugs Price Qty RecItem View recommended items
Key 14 Horizon # Discontinued Description Plug, Pentair Sta-Rite PosiFlo, 1" Male Pipe Thread Price Qty RecItem View recommended items
Key 14 Horizon # 17-102-7011 Description Plug, Pentair Sta-Rite PosiFlo, 1" MPT Price Qty RecItem
Key 15 Horizon # 14-102-1104 Description Air Bleed Filter, Pentair Sta-Rite DES/DEP/DEPB/HRP/HRS Price Qty RecItem View recommended items
Key 16 Horizon # 17-102-1117 Description Bleed Tube, Pentair Sta-Rite PosiFlo PTM50, PTM70 Price Qty RecItem View recommended items
Key 16 Horizon # 17-102-1118 Description Bleed Tube, Pentair Sta-Rite PosiFlo PTM100 Price Qty RecItem View recommended items

PTM 50 - Cartridge

Key Horizon # Description Qty
Key 17A Horizon # Discontinued Description Cartridge, 50sqft, 4-3/16"ot,4-3/16"ob,8-11/16",13-5/16" 4oz Price Qty RecItem View recommended items
Key 17A Horizon # 17-775-1675 Description Cartridge,50sqft,4-3/16"ot,4-3/16"ob,8-11/16",13-5/16"L,4oz Price Qty RecItem View recommended items
Key 17A Horizon # 17-777-1675 Description Cartridge, 52sqft,4-3/16"ot,4-3/16"ob,8-11/16",13-5/16"L,4oz Price Qty RecItem

PTM 75 - Cartridge

Key Horizon # Description Qty
Key 17b Horizon # 17-175-1680 Description Cartridge, 70sqft, 4-3/16"ot,4-3/16"ob,8-11/16",18-3/16" 4oz Price Qty RecItem View recommended items
Key 17b Horizon # Discontinued Description Cart, 70sqft,4-3/16"ot,4-3/16"ob,8-11/16",18-3/16",3oz,Slvr Price Qty RecItem View recommended items
Key 17b Horizon # 17-775-1680 Description Cartridge, 70sqft,4-3/16"ot,4-3/16"ob,8-11/16",18-3/16"L,4oz Price Qty RecItem View recommended items
Key 17b Horizon # 17-777-1680 Description Cartridge, 72sqft,4-3/16"ot,4-3/16"ob,8-11/16",18-3/16"L,4oz Price Qty RecItem

PTM 100 - Cartridge

Key Horizon # Description Qty
Key 17c Horizon # 17-175-1685 Description Cartridge, 100sqft,4-3/16"ot,4-3/16"ob,8-11/16",25-11/16"4oz Price Qty RecItem View recommended items
Key 17c Horizon # 17-175-1685SS Description Cart, 100sqft,4-3/16"ot,4-3/16"ob,8-11/16",25-11/16"3oz,Slvr Price Qty RecItem View recommended items
Key 17c Horizon # 17-775-1685 Description Cart, 100sqft, 4-3/16"ot, 4-3/16"ob, 8-11/16",25-11/16"L,4oz Price Qty RecItem View recommended items
Key 17c Horizon # 17-777-1685 Description Cart, 102sqft,4-3/16"ot,4-3/16"ob,8-11/16"dia,25-11/16"L,4oz Price Qty RecItem

Tools

Key Horizon # Description Qty
Key Horizon # 99-615-1006 Description Tool, Clamp Knob Socket, 4-Lobe, w/1/4" Socket Bit Adapter Price Qty RecItem View recommended items
Key Horizon # 99-615-1022 Description Tool, Socket, Quad-Side A/Solar Side B Price Qty RecItem View recommended items

Not Pictured

Key Horizon # Description Qty
Key Horizon # 90-423-3110 Description Ro-Kit 272, Sta-Rite Posi-Flo II Filter Price Qty RecItem View recommended items
