Home  >  Exploded Diagrams  >  Exploded Diagrams  >  Filters  >  13-102-W007

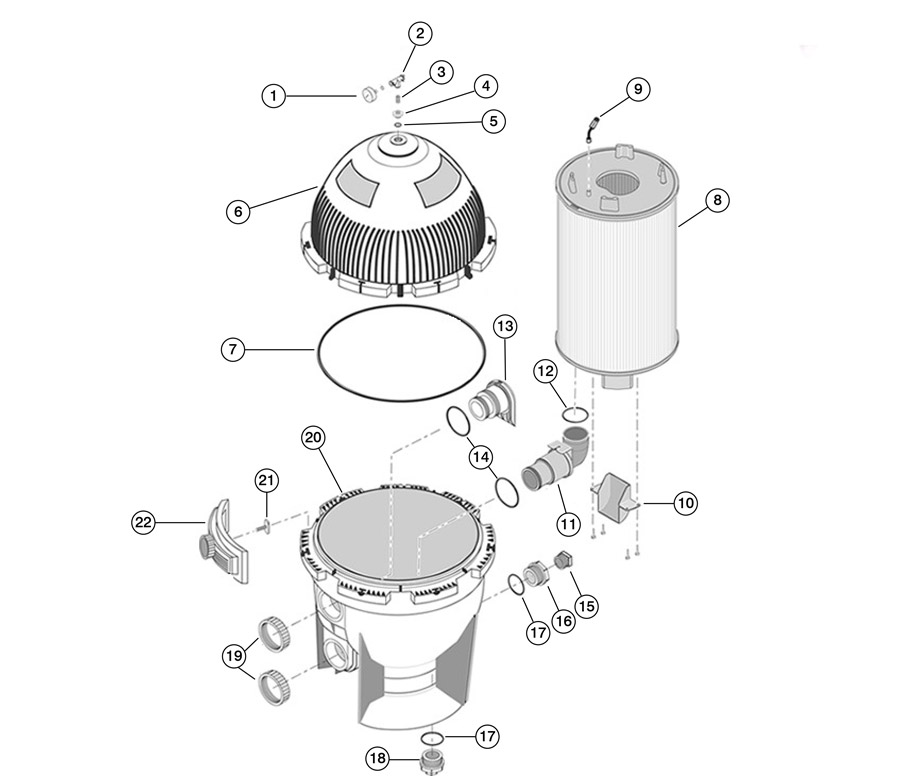

Sta-Rite/Pentair System:3 SMD Modular DE Filter Rpl Parts

Product Description  ·  Parts
Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View

Parts

Key Horizon # Description Qty
Key 1 Horizon # 17-102-1100 Description Pressure Gauge, Pentair StaRite, 1/4"mpt, 0-60psi,Back Mount Price Qty RecItem View recommended items
Key 1 Horizon # 17-555-1010 Description Pressure Gauge, 1/4"mpt, 0-60psi, Bottom Mount, Generic Price Qty RecItem View recommended items
Key 1 Horizon # 17-555-1018 Description Pressure Gauge, 1/4"mpt, 0-60psi, Back Mount, Generic Price Qty RecItem View recommended items
Key 2 Horizon # 17-102-2131 Description Air Bleed Tee, Pentair Sta-Rite/PacFab Price Qty RecItem View recommended items
Key 2 Horizon # Discontinued Description Air Bleed Tee, Pentair Sta-Rite/PacFab Price Qty RecItem View recommended items
Key 2 Horizon # 31-110-1550 Description Air Relief Assembly, Pentair PacFab Triton II Price Qty RecItem View recommended items
Key 2 Horizon # 31-110-7550 Description Air Relief Assembly, Pentair Triton II Price Qty RecItem View recommended items
Key 3 Horizon # 17-102-1254 Description Nipple, Pentair Sta-Rite System 3, Brass Price Qty RecItem View recommended items
Key 4 Horizon # 17-102-1256 Description Adapter, Pentair Sta-Rite System 3, Bushing Price Qty RecItem View recommended items
Key 4 Horizon # 17-102-2256 Description Adapter Bushing, Pentair Sta-Rite System 3, 21" & 25" Price Qty RecItem
Key 5 Horizon # 17-102-1258 Description O-Ring, Pentair Sta-Rite System 3, Adapter, O-315 Price Qty RecItem View recommended items
Key 5 Horizon # 90-423-5317 Description O-Ring, Buna-N, 15/16" ID, 3/16" Cross Section, Generic Price Qty RecItem View recommended items
Key 6 Horizon # 17-102-1300 Description Tank Lid, Pentair Sta-Rite System 3, All S7 Models, 21" Price Qty RecItem View recommended items
Key 7 Horizon # 17-102-1296 Description O-Ring,PentairStaRite System 3,S7 Models,21" Tank Body,O-485 Price Qty RecItem View recommended items
Key 7 Horizon # 90-423-1485 Description O-Ring, 21" ID, 1/2" Cross Section, Gen, O-485 Price Qty RecItem View recommended items
Key 8 Horizon # 14-102-1300 Description DE Grid, Pentair System 3 SMD Series, 60Sqft Price Qty RecItem View recommended items
Key 8 Horizon # 14-102-1302 Description DE Grid, Pentair System 3 SMD Series, 72Sqft Price Qty RecItem View recommended items
Key 9 Horizon # 14-102-1258 Description Air Bleed Assembly, Pentair Sta-Rite S7D75/S8D110 Price Qty RecItem View recommended items
Key 10 Horizon # _23910-0013S Description Baf Kit Sys3 Mod De Price Qty RecItem
Key 11 Horizon # _23910-0100S Description Elb/Bulkhd Asy Price Qty RecItem
Key 12 Horizon # _35505-7438 Description Oring Custom Elb Price Qty RecItem View recommended items
Key 13 Horizon # _23910-0101S Description Deflector/Bulkhd Asy Price Qty RecItem
Key 14 Horizon # 17-102-1280 Description O-Ring, Pentair Sta-Rite System 3, Bulkhead, O-283 Price Qty RecItem View recommended items
Key 14 Horizon # 90-423-5343 Description O-Ring, 3-3/4" ID, 3/16" Cross Section, Generic Price Qty RecItem View recommended items
Key 15 Horizon # 17-102-1218 Description Drain Plug, Pentair Sta-Rite System 3, 1-1/2", with O-Ring Price Qty RecItem View recommended items
Key 16 Horizon # 17-102-1212 Description Adapter, Pentair Sta-Rite System 3, System 2 Pre 10/03 Price Qty RecItem View recommended items
Key 16 Horizon # 17-102-7212 Description Drain Adapter Fitting, Sta-Rite System 3, 1-1/2" x 2" Price Qty RecItem View recommended items
Key 17 Horizon # 17-102-1214 Description O-Ring, Pentair Sta-Rite System 2/System 3, Drain Plug, O-83 Price Qty RecItem View recommended items
Key 17 Horizon # 90-423-5332 Description O-Ring, 2-3/8" ID, 3/16" Cross Section, Generic Price Qty RecItem View recommended items
Key 18 Horizon # 17-102-1284 Description Drain Plug, Pentair Sta-Rite System 3 Price Qty RecItem View recommended items
Key 19 Horizon # 17-102-1286 Description Retaining Nut, Pentair Sta-Rite System 3 Price Qty RecItem View recommended items
Key 19 Horizon # 17-102-7286 Description Retaining Nut, Sta-Rite System 3, Bulkhead Price Qty RecItem View recommended items
Key 20 Horizon # 17-102-1292 Description Tank Body, Pentair Sta-Rite System 3, All S7 Models, 21" Price Qty RecItem View recommended items
Key 21 Horizon # 17-102-1290 Description Bolt, Pentair Sta-Rite System 3, Clamp Assembly Price Qty RecItem View recommended items
Key 21 Horizon # 17-102-7290 Description Clamp Assembly Bolt, Sta-Rite System 3 Price Qty RecItem View recommended items
Key 22 Horizon # 17-102-1288 Description Clamp Assembly, Pentair Sta-Rite System 3 Price Qty RecItem View recommended items
Key 22 Horizon # 17-102-7288 Description Clamp Assembly, Sta-Rite System 3 SM/SD/SMD/SS Price Qty RecItem View recommended items
Key Horizon # _23910-1100S Description Sys3 Mod De Convers Kit Price Qty RecItem
