Home  >  Exploded Diagrams  >  Exploded Diagrams  >  Pool Cleaners  >  86-150-W045

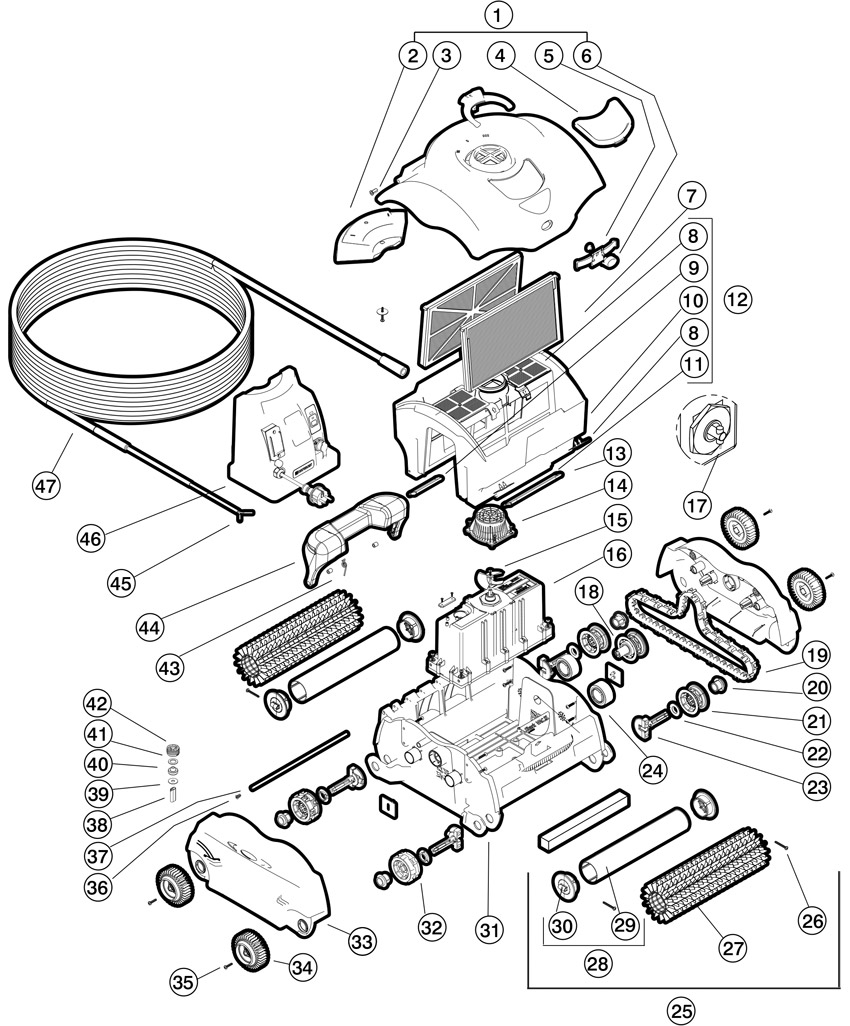

Hayward SharkVAC XL Robotic In-Ground Pool Cleaner

Product Description  ·  Parts  ·  Not Pictured  ·  Complete Cleaner
Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View

Parts

Key Horizon # Description Qty
Key 1 Horizon # Discontinued Description Dome Assembly, Hayward SharkVAC XL Price Qty RecItem View recommended items
Key 2 Horizon # 87-150-1680 Description Float Assembly, Hayward SharkVAC XL Price Qty RecItem View recommended items
Key 3 Horizon # 87-150-1508 Description Bushing, Dome Assembly, Hayward SharkVAC/XL Price Qty RecItem
Key 4 Horizon # 87-150-1682 Description Window, Dome Assembly, Hayward SharkVAC XL Price Qty RecItem View recommended items
Key 5 Horizon # Discontinued Description Flat Spring, Dome Assembly, Hayward SharkVAC/XL Price Qty RecItem View recommended items
Key 6 Horizon # 87-150-1506 Description Power Button, Hayward SharkVAC/XL Price Qty RecItem
Key 7 Horizon # 87-150-1090 Description Filter Cartridge, Hayward TigerShark/SharkVAC/XL, Quantity 2 Price Qty RecItem View recommended items
Key 8 Horizon # 87-150-1509 Description Door Filter Element, Hayward SharkVAC/XL, qty 2 Price Qty RecItem View recommended items
Key 8 Horizon # 87-150-1512 Description Filter Door, Hayward SharkVAC/XL Price Qty RecItem View recommended items
Key 9 Horizon # 87-150-1514 Description Drain Flap, Hayward SharkVAC/XL, Small Price Qty RecItem View recommended items
Key 10 Horizon # Discontinued Description Filter Bucket Housing, Hayward SharkVAC/XL Price Qty RecItem View recommended items
Key 11 Horizon # 87-150-1518 Description Rubber Flap, Hayward SharkVAC/XL Price Qty RecItem View recommended items
Key 12 Horizon # 87-150-1592 Description Filter Bucket Assembly, Hayward SharkVAC/XL Price Qty RecItem View recommended items
Key 13 Horizon # 87-150-1516 Description Drain Flap, Hayward SharkVAC/XL, Large Price Qty RecItem View recommended items
Key 14 Horizon # 87-150-1544 Description Vent Tube, Hayward SharkVAC/XL Price Qty RecItem View recommended items
Key 15 Horizon # 87-150-1572 Description Impeller, Hayward SharkVAC/XL/TigerShark Price Qty RecItem View recommended items
Key 16 Horizon # 87-150-1684 Description Motor, Hayward SharkVAC XL Price Qty RecItem View recommended items
Key 17 Horizon # 87-150-1574 Description Drive Pin Assembly, Hayward SharkVAC/XL/TigerShark Price Qty RecItem View recommended items
Key 18 Horizon # 87-150-1688 Description Drive Bearing Assembly, Hayward SharkVAC XL Price Qty RecItem View recommended items
Key 19 Horizon # 87-150-1686 Description Belt, Drive Track, Hayward SharkVAC XL Price Qty RecItem View recommended items
Key 20 Horizon # 87-150-1690 Description Bushing, Drive Ring, Hayward SharkVAC XL, Quantity 4, Outer Price Qty RecItem View recommended items
Key 21 Horizon # Discontinued Description Drive Belt Wheel, Hayward SharkVAC XL Price Qty RecItem View recommended items
Key 22 Horizon # 87-150-1519 Description Roller Shaft Bushing, Hayward AquaVac/SharkVAC/XL, blk Qty 2 Price Qty RecItem View recommended items
Key 23 Horizon # 87-150-1566 Description Roller Wheel Shaft, Hayward AquaVac 500, qty 2 Price Qty RecItem View recommended items
Key 24 Horizon # 87-150-1082 Description Bearing Idler Pulley, Hayward TigerShark/SharkVAC/XL, qty 2 Price Qty RecItem View recommended items
Key 25 Horizon # 87-150-1696 Description Roller Assembly, Foam, Hayward SharkVAC XL Price Qty RecItem View recommended items
Key 26 Horizon # 87-150-1552 Description Screw, Motor Mount, Hayward SV/SVXL, M5x35mm, Pan, qty 5 Price Qty RecItem View recommended items
Key 27 Horizon # 87-150-1088 Description Roller Brush, Hayward TigerShark/SharkVAC/XL Price Qty RecItem View recommended items
Key 28 Horizon # 87-150-1594 Description Wheel Tube Assembly, Hayward SharkVAC/XL, Light Gray Price Qty RecItem View recommended items
Key 28 Horizon # Discontinued Description Wheel Tube Assembly, Hayward SharkVAC XL, Black Price Qty RecItem View recommended items
Key 29 Horizon # Discontinued Description Wheel Tube, Hayward SharkVAC/XL, Light Gray Price Qty RecItem View recommended items
Key 30 Horizon # 87-150-1698 Description End Cap, Roller Assembly, Hayward SharkVAC XL, Light Gray Price Qty RecItem View recommended items
Key 31 Horizon # Discontinued Description Body, Lower, Hayward SharkVAC/XL Price Qty RecItem View recommended items
Key 32 Horizon # Discontinued Description Drive Wheel, Hayward SharkVAC XL, with rubber Price Qty RecItem View recommended items
Key 33 Horizon # 87-150-1546 Description Panel, Side, Hayward SharkVAC/XL, Quantity 1 Price Qty RecItem View recommended items
Key 34 Horizon # 87-150-1704 Description Over Molded Wheel Assembly, Hayward SharkVAC XL Price Qty RecItem View recommended items
Key 35 Horizon # 87-150-1588 Description Screw,Handle Assy,Hayward SV/SVXL/TS,M5x20mm T-20,Pan,qty 5 Price Qty RecItem View recommended items
Key 36 Horizon # 87-150-1548 Description Screw, Shaft Hinge,Hayward SharkVAC/XL,M7x10mm,Flat,qty 5 Price Qty RecItem View recommended items
Key 37 Horizon # 87-150-1568 Description Shaft Hinge, Hayward SharkVAC/XL, Stainless Steel Price Qty RecItem View recommended items
Key 38 Horizon # Discontinued Description Connecter Housing, Hayward SharkVAC/SharkVACXL/TigerShark Price Qty RecItem View recommended items
Key 39 Horizon # Discontinued Description Washer, Hayward SharkVAC/XL/TigerShark, Plastic Price Qty RecItem View recommended items
Key 40 Horizon # Discontinued Description Compression Seal, Hayward SharkVAC XL/TigerShark Price Qty RecItem View recommended items
Key 41 Horizon # 87-150-1582 Description Washer, Hayward SharkVAC/XL/TigerShark, Plastic, White Price Qty RecItem View recommended items
Key 42 Horizon # Discontinued Description Seal Plug, Hayward SharkVAC/XL/TigerShark Price Qty RecItem View recommended items
Key 43 Horizon # 87-150-1538 Description Spring, Handle, Hayward SharkVAC/XL Price Qty RecItem View recommended items
Key 44 Horizon # Discontinued Description Handle Assembly, Hayward SharkVAC XL Price Qty RecItem View recommended items
Key 45 Horizon # 60-322-1060 Description Pin, Female, AMP, 14-20 AWG, qty 25 Price Qty RecItem View recommended items
Key 45 Horizon # 87-150-1586 Description Pin, Female,AMP,14-20AWG,Hayward SharkVAC/XL/TigerShark,1ea Price Qty RecItem View recommended items
Key 46 Horizon # 87-150-1554 Description Power Supply, Hayward SharkVAC/XL/TigerShark,115v,w/5ft Cord Price Qty RecItem View recommended items
Key 47 Horizon # 87-150-1604 Description Floating Cord Assy, Hayward SharkVAC XL/TigerShark/QC, 55ft Price Qty RecItem View recommended items
Key Horizon # _RC97385D Description Cart Caddy N/Assy, Sv/Ev Price Qty RecItem View recommended items

Not Pictured

Key Horizon # Description Qty
Key Horizon # 87-150-1556 Description Power Supply Circuit Breaker, Hayward SharkVAC/XL/TS, 3A Price Qty RecItem View recommended items
Key Horizon # 87-150-1558 Description Switch, Power Supply, Hayward SharkVAC/XL/TigerShark, 16A Price Qty RecItem View recommended items
Key Horizon # 87-150-1560 Description Membrane Cover, Hayward SV/SVXL/TS, Power Supply Switch Price Qty RecItem View recommended items
Key Horizon # 87-150-1562 Description Power Supply Output Connecter,Hayward SharkVAC/XL/TigerShark Price Qty RecItem View recommended items
Key Horizon # 87-150-1708 Description Drive System Upgrade, Hayward SharkVAC XL, Kit Price Qty RecItem View recommended items

Complete Cleaner

Key Horizon # Description Qty
Key Horizon # 86-150-1015E Description Pool Cleaner, Hayward SharkVac XL, 115V, Open Line Price Qty RecItem View recommended items
Key Horizon # 86-150-1025E Description Pool Cleaner, Hayward SharkVac XL, 115V, w/ Caddy, Open Line Price Qty RecItem View recommended items
