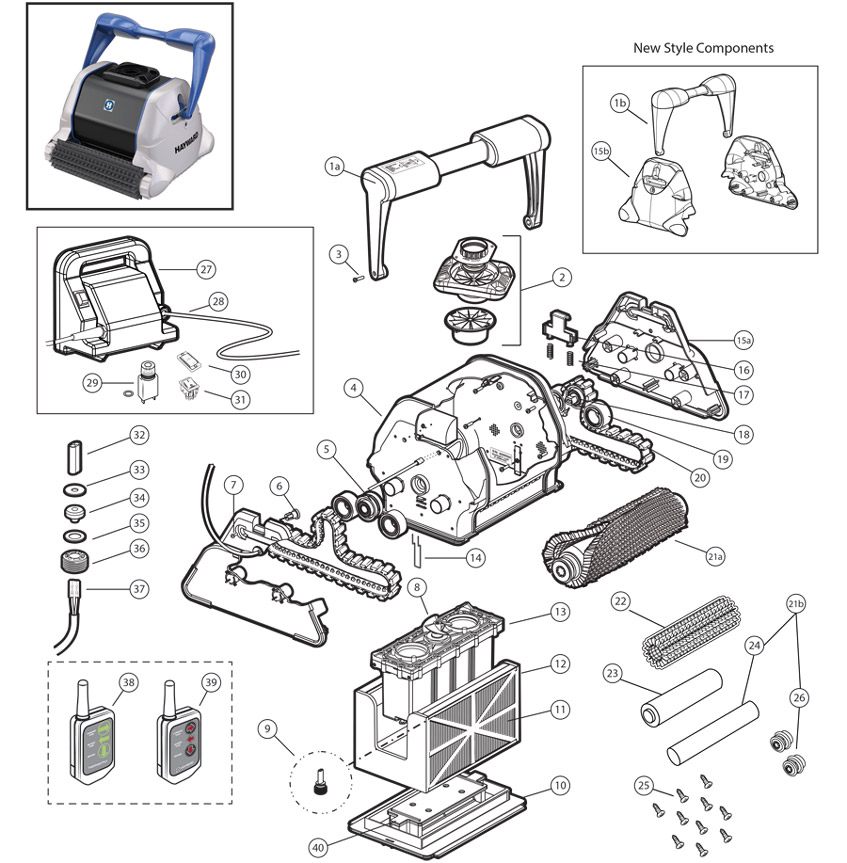

Hayward TigerShark/Plus/Quick Clean In-Ground Pool Cleaner

Product Description  ·  Parts  ·  Complete Cleaner  ·  Not Pictured
Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View

Parts

Key Horizon # Description Qty
Key 1a Horizon # Discontinued Description Handle Assembly, Hayward TigerShark Quick Clean, Teal Price Qty RecItem View recommended items
Key 1a Horizon # 87-150-1612 Description Handle Assembly, Hayward TigerShark, Blue Price Qty RecItem View recommended items
Key 1B Horizon # 87-150-1596 Description Handle Assy, Hayward Tigershark/Tigershark Plus/TSQC Price Qty RecItem View recommended items
Key 1B Horizon # 87-150-1614 Description Handle Assembly, Hayward TigerShark, New Version, Dark Gray Price Qty RecItem View recommended items
Key 2 Horizon # 87-150-1616 Description Venturi Assembly, Hayward TigerShark Price Qty RecItem View recommended items
Key 2 Horizon # 87-150-2668 Description Venturi Assembly, Hayward TigerShark, Kit, Black Price Qty RecItem
Key 3 Horizon # 87-150-1588 Description Screw,Handle Assy,Hayward SV/SVXL/TS,M5x20mm T-20,Pan,qty 5 Price Qty RecItem View recommended items
Key 4 Horizon # 87-150-1663 Description Main Case, Hayward TigerShark Plus Price Qty RecItem View recommended items
Key 4 Horizon # Discontinued Description Main Case, Hayward TigerShark, Blue/Gray Price Qty RecItem View recommended items
Key 4 Horizon # Discontinued Description Main Case, Hayward TigerShark Quick Clean, Teal/Gray Price Qty RecItem View recommended items
Key 4 Horizon # 87-150-5004 Description Main Case, Hayward, Tigershark & QC Robotic cleaner Price Qty RecItem View recommended items
Key 5 Horizon # 87-150-1084 Description Guide Roller Bearing, Hayward, TigerShark Price Qty RecItem View recommended items
Key 6 Horizon # Discontinued Description Handle Arm Slide, Hayward TigerShark Price Qty RecItem View recommended items
Key 7 Horizon # 87-150-1620 Description Screw, Side Cover,Hayward TigerShark,M4x12mm T-20,Pan,qty 5 Price Qty RecItem View recommended items
Key 8 Horizon # 87-150-1572 Description Impeller, Hayward SharkVAC/XL/TigerShark Price Qty RecItem View recommended items
Key 9 Horizon # Discontinued Description Screw, Impeller,Hayward TigerShark,M4x2mm T-15 Flat,qty 5 Price Qty RecItem View recommended items
Key 10 Horizon # 87-150-1624 Description Bottom Lid Assembly, Hayward TigerShark Price Qty RecItem View recommended items
Key 10 Horizon # 87-150-1625 Description Bottom Lid Assembly, Hayward TigerShark, Black Metal Price Qty RecItem View recommended items
Key 10 Horizon # 87-150-1626 Description Gasket, Bottom Lid Assembly, Hayward TigerShark Price Qty RecItem View recommended items
Key 10 Horizon # 87-150-1627 Description Inlet Flap, Hayward TigerShark Price Qty RecItem View recommended items
Key 11 Horizon # 87-150-1598 Description Spring Clean Up Filter, Hayward SharkVAC/TigerShark, qty 2 Price Qty RecItem View recommended items
Key 11 Horizon # 87-150-1630 Description Filter Cartridge, Hayward TigerShark, Quantity 2, with Frame Price Qty RecItem View recommended items
Key 12 Horizon # 87-150-1090 Description Filter Cartridge, Hayward TigerShark/SharkVAC/XL, Quantity 2 Price Qty RecItem View recommended items
Key 13 Horizon # Discontinued Description Motor Unit Upgrade Kit, Hayward TigerShark, AC Units Price Qty RecItem View recommended items
Key 13 Horizon # 87-150-1634 Description Motor, Hayward TigerShark, 4 hr, 24vdc Price Qty RecItem View recommended items
Key 13 Horizon # 87-150-1636 Description Motor, Hayward TigerShark Quick Clean, 4 hr, 24vdc Price Qty RecItem View recommended items
Key 14 Horizon # 87-150-1640 Description Clip, Lid, Hayward TigerShark, Quantity 2 Price Qty RecItem View recommended items
Key 15a Horizon # 87-150-1650 Description Cover, Side, Hayward TigerShark, Old Style, Light Gray Price Qty RecItem View recommended items
Key 15b Horizon # 87-150-1652 Description Cover, Side, Hayward TigerShark, New Version, Gray Price Qty RecItem View recommended items
Key 16 Horizon # 87-150-1647 Description Handle Arm Slide Kit, Hayward TigerShark Price Qty RecItem
Key 16 Horizon # 87-150-1648 Description Latch, Handle, Hayward TigerShark Price Qty RecItem View recommended items
Key 18 Horizon # 87-150-1086 Description Drive Pulley Bearing Assembly, Hayward TigerShark Price Qty RecItem View recommended items
Key 19 Horizon # 87-150-1082 Description Bearing Idler Pulley, Hayward TigerShark/SharkVAC/XL, qty 2 Price Qty RecItem View recommended items
Key 20 Horizon # 87-150-1080 Description Drive Track, Hayward TigerShark/SharkVAC, Soft Tread Price Qty RecItem View recommended items
Key 21a Horizon # Discontinued Description Roller Brush Assembly Kit,Hayward TigerShark/QuickClean/Plus Price Qty RecItem View recommended items
Key 21b Horizon # 87-150-1656 Description Wheel Tube Assembly, 2 Pack, Hayward TigerShark, W/O Brush Price Qty RecItem View recommended items
Key 22 Horizon # 87-150-1088 Description Roller Brush, Hayward TigerShark/SharkVAC/XL Price Qty RecItem View recommended items
Key 23 Horizon # 87-150-1654 Description Foam, Roller Brush, Hayward TigerShark, with tube Price Qty RecItem View recommended items
Key 24 Horizon # Discontinued Description Wheel Tube, Hayward TigerShark Price Qty RecItem View recommended items
Key 25 Horizon # Discontinued Description Screw, Wheel Tube,Hayward TigerShark,#4 x 3/8",Round,qty 10 Price Qty RecItem View recommended items
Key 26 Horizon # 87-150-1660 Description Bearing, Wheel Tube, Hayward TigerShark, qty 1, 2 Required Price Qty RecItem View recommended items
Key 27 Horizon # 87-150-1554 Description Power Supply, Hayward SharkVAC/XL/TigerShark,115v,w/5ft Cord Price Qty RecItem View recommended items
Key 27 Horizon # 87-150-1600 Description Power Supply, Hayward TigerShark Plus, 115v, w/5ft Cord Price Qty RecItem View recommended items
Key 27 Horizon # 87-150-1602 Description Power Supply,Hayward TigerShark Quick Clean,115v,w/5ft Cord Price Qty RecItem View recommended items
Key 28 Horizon # 87-150-1604 Description Floating Cord Assy, Hayward SharkVAC XL/TigerShark/QC, 55ft Price Qty RecItem View recommended items
Key 28 Horizon # 87-150-1606 Description Floating Cord Assembly, Hayward TigerShark 2, 100 foot Price Qty RecItem View recommended items
Key 28 Horizon # Discontinued Description Floating Cord Assembly, Hayward TigerShark Plus, 55 foot Price Qty RecItem View recommended items
Key 29 Horizon # 87-150-1556 Description Power Supply Circuit Breaker, Hayward SharkVAC/XL/TS, 3A Price Qty RecItem View recommended items
Key 30 Horizon # 87-150-1560 Description Membrane Cover, Hayward SV/SVXL/TS, Power Supply Switch Price Qty RecItem View recommended items
Key 31 Horizon # 87-150-1558 Description Switch, Power Supply, Hayward SharkVAC/XL/TigerShark, 16A Price Qty RecItem View recommended items
Key 32 Horizon # Discontinued Description Connecter Housing, Hayward SharkVAC/SharkVACXL/TigerShark Price Qty RecItem View recommended items
Key 32 Horizon # 87-150-4014 Description Connecter Housing, Hayward TigerShark Plus, 4-Pin Price Qty RecItem View recommended items
Key 33 Horizon # Discontinued Description Washer, Hayward SharkVAC/XL/TigerShark, Plastic Price Qty RecItem View recommended items
Key 34 Horizon # Discontinued Description Compression Seal, Hayward SharkVAC XL/TigerShark Price Qty RecItem View recommended items
Key 35 Horizon # 87-150-1582 Description Washer, Hayward SharkVAC/XL/TigerShark, Plastic, White Price Qty RecItem View recommended items
Key 36 Horizon # Discontinued Description Seal Plug, Hayward SharkVAC/XL/TigerShark Price Qty RecItem View recommended items
Key 37 Horizon # 87-150-1586 Description Pin, Female,AMP,14-20AWG,Hayward SharkVAC/XL/TigerShark,1ea Price Qty RecItem View recommended items
Key 38 Horizon # 87-150-1672 Description Remote, Hayward TigerShark, 418 MHz, Wireless, pre-07 Price Qty RecItem View recommended items
Key 39 Horizon # 87-150-1674 Description Remote, Hayward TigerShark, 433 MHz, Wireless, 2007+ Price Qty RecItem View recommended items
Key 40 Horizon # _RCX75006 Description Cover-Inlet Price Qty RecItem
Key Horizon # Discontinued Description Roller, Hayward TigerShark, Foam Price Qty RecItem View recommended items

Complete Cleaner

Key Horizon # Description Qty
Key Horizon # 86-150-1100E Description Pool Cleaner, Hayward TigerShark QC, Robotic,115V,Open Line Price Qty RecItem View recommended items
Key Horizon # 86-150-1105E Description Pool Cleaner, Hayward TigerShark, Robotic, 115V, Open Line Price Qty RecItem View recommended items

Not Pictured

Key Horizon # Description Qty
Key Horizon # _RC99385 Description Cart-Ts, Ms, Ks Caddy Price Qty RecItem
Key Horizon # _RCX59007 Description Plate-Cover, Strain Relief Price Qty RecItem
Key Horizon # 87-150-1078 Description Inlet, Hayward TigerShark, High Velocity Price Qty RecItem View recommended items
Key Horizon # 87-150-1562 Description Power Supply Output Connecter,Hayward SharkVAC/XL/TigerShark Price Qty RecItem View recommended items
Key Horizon # 87-150-1574 Description Drive Pin Assembly, Hayward SharkVAC/XL/TigerShark Price Qty RecItem View recommended items
Key Horizon # 87-150-1644 Description Side Cover, Hayward TigerShark QC, Right and Left Price Qty RecItem View recommended items
Key Horizon # 87-150-1668 Description Restrictor Plate, Hayward TigerShark, Kit (Old) Price Qty RecItem View recommended items
Key Horizon # 87-150-1670 Description Restrictor Plate, Hayward TigerShark, Kit, New Version Price Qty RecItem View recommended items
Key Horizon # 87-150-1676 Description Solenoid Assembly, Remote, Hayward TigerShark Plus Price Qty RecItem View recommended items
Key Horizon # 87-150-1708 Description Drive System Upgrade, Hayward SharkVAC XL, Kit Price Qty RecItem View recommended items
Key Horizon # Discontinued Description Screw, Hayward Com Robotic Cleaners,M3x8 Pan Hd,SS,Qty 5 Price Qty RecItem View recommended items
