Home  >  Exploded Diagrams  >  Exploded Diagrams  >  Heaters  >  46-150-W033

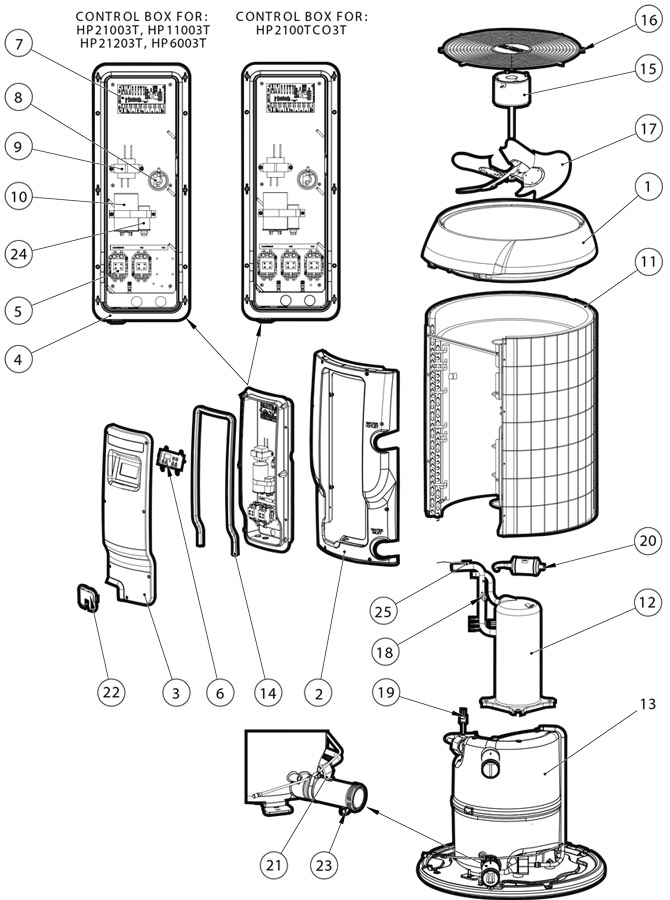

Hayward HeatPro HP6003T/11003T/21003T/21203T/2100TCC3T

Product Description  ·  Not Shown
Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View

Parts

Key Horizon # Description Qty
Key 1 Horizon # _HPX01023502 Description Top-Fan Price Qty RecItem
Key 2 Horizon # _HPX01023503 Description Panel-Side Price Qty RecItem
Key 3 Horizon # Discontinued Description Cover-Elec Box Price Qty RecItem
Key 4 Horizon # _HPX01023505 Description Box-Control Price Qty RecItem
Key 5 Horizon # _HPX1985 Description Contactor, Hayward, 40amp, 24v Price Qty RecItem
Key 6 Horizon # Discontinued Description Board-Control, Cba-1 Price Qty RecItem
Key 6 Horizon # _HPX26024139 Description Board-Control, Cba-2 Price Qty RecItem
Key 6 Horizon # Discontinued Description Board-Control, Cba-2Tco Price Qty RecItem
Key 7 Horizon # _HPX11024130 Description Board-Control, Interface Price Qty RecItem
Key 8 Horizon # _HPX2181 Description Water Pressure Switch, Flow Price Qty RecItem
Key 9 Horizon # _HPX11023693 Description Transformer, Hayward Heat Pump, 208/240v, 24v, 40va Price Qty RecItem
Key 10 Horizon # _HPX11024154 Description Capacitor - 60Uf Price Qty RecItem
Key 11 Horizon # Discontinued Description Bent Coil, Hayward HeatPro, w/ Guard Price Qty RecItem View recommended items
Key 12 Horizon # Discontinued Description Compressor, Hayward HeatPro HP21003T/HP2100TC03T/HP11003T Price Qty RecItem
Key 14 Horizon # Discontinued Description Gasket-Cover,P11002 Price Qty RecItem
Key 15 Horizon # _HPX11023564 Description Fan Motor Kit, Hayward HeatPro Price Qty RecItem
Key 16 Horizon # _HPX01023561 Description Guard-Fan Price Qty RecItem
Key 16 Horizon # 47-150-1005 Description Fan Guard, Hayward HeatPro Price Qty RecItem
Key 17 Horizon # Discontinued Description Fan Blades Price Qty RecItem
Key 18 Horizon # _HPX2186 Description High Pressure Switch Price Qty RecItem
Key 19 Horizon # _HPX2179 Description Low Pressure Switch Price Qty RecItem
Key 20 Horizon # _HPX15024023 Description Txv/Dryer - 10 Ton Price Qty RecItem
Key 20 Horizon # Discontinued Description Txv/Dryer - 7.5 Ton Price Qty RecItem
Key 21 Horizon # _HPX2169 Description Temp Sensor, Hayward Heatpro Hp3100 Price Qty RecItem
Key 22 Horizon # _HPX01023760 Description Plug-Electric Entry Price Qty RecItem
Key 23 Horizon # 35-150-3216 Description Drain Plug, Hayward Northstar/Booster/Tristar, with O-Ring Price Qty RecItem View recommended items
Key 24 Horizon # _HPX11024151 Description Capacitor - 7.5Uf Price Qty RecItem
Key 25 Horizon # _HPX11024169 Description Sensor, Defrost, Hayward HeatPro Price Qty RecItem
Key Horizon # _HPX10023517 Description Cable-Hpc Price Qty RecItem
Key Horizon # _HPX02024108 Description Blanket-Compressor Price Qty RecItem
Key Horizon # Discontinued Description Kit-Screw Replacement Price Qty RecItem
Key Horizon # Discontinued Description Compressor Spacers Price Qty RecItem
Key Horizon # Discontinued Description Copeland Compressor Plug Price Qty RecItem
