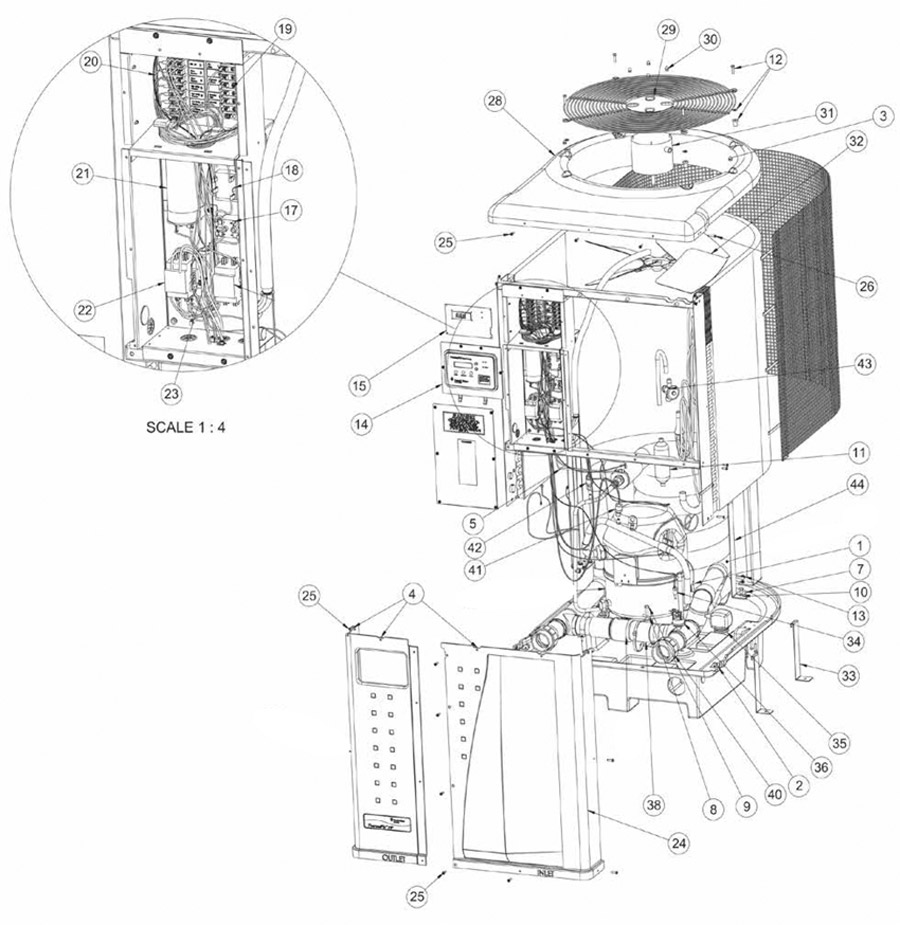

Pentair ThermalFlo Titanium Heat Pump Replacement Parts

Product Description  ·  Parts  ·  Not Shown
Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View

Parts

Key Horizon # Description Qty
Key 1 Horizon # _473665 Description Probe Thermistor Defrost Sensor Price Qty RecItem
Key 2 Horizon # _470284 Description Nut J Clip Price Qty RecItem
Key 3 Horizon # _473285 Description Nut 1/4-20 Ss Acorn Price Qty RecItem
Key 4 Horizon # _470281 Description Nut U Clip D06437-10 Tinnerman Price Qty RecItem
Key 5 Horizon # _470147 Description Harness Wire Compressor Price Qty RecItem
Key 7 Horizon # _473295 Description Wshr 5/16 Id 1.25 Od Fender Price Qty RecItem
Key 8 Horizon # _473026 Description Kit Compressor Isolation Grommet And Spacer Price Qty RecItem
Key 9 Horizon # _473294 Description Bolt 5/16 18X1.75"Ss Price Qty RecItem
Key 10 Horizon # _98219800 Description Bolt 5/16-18X1" Hh 18-8 Ss Price Qty RecItem
Key 11 Horizon # _473121 Description Dryer Line 1/2In Price Qty RecItem
Key 11 Horizon # _473139 Description Drier Rvrsble 1/2"Solder Sporlan Hpc-164-S-Hh Price Qty RecItem
Key 12 Horizon # _470441 Description Kit Fastener Fan Guard Price Qty RecItem
Key 13 Horizon # 35-110-2098 Description Nut,Pentair Purex Whisperflo/IntelliFlo,Var. Filters, 1/4-20 Price Qty RecItem
Key 14 Horizon # _473693 Description Board Cntrl Bezel W/Lbl Price Qty RecItem
Key 15 Horizon # 47-102-1100 Description Control Board Assy, Pentair Ultratemp/Thermalflo Heat Pump Price Qty RecItem View recommended items
Key 17 Horizon # _473150 Description Relay Fan Evaporator Price Qty RecItem
Key 18 Horizon # _473155 Description Transformer, Pentair Heat Pump, 208/240v, 24v, 50va Price Qty RecItem
Key 19 Horizon # _473422 Description Harness Wire Fan Compr Term Block Price Qty RecItem
Key 20 Horizon # _473315 Description Harness Wire Sensor Term Block Price Qty RecItem
Key 21 Horizon # _470146 Description Cpctr 50/7.5 Mfd 440V Price Qty RecItem
Key 22 Horizon # _473149 Description Contactor, Pentair Heat Pump, 24vac, 40amp Price Qty RecItem
Key 23 Horizon # _473423 Description Harness Wiring Main Price Qty RecItem
Key 24 Horizon # _473412 Description Pnl Frnt Rt 24"Almnd Price Qty RecItem
Key 24 Horizon # _473431 Description Pnl Frnt Rt 32"Almnd Price Qty RecItem
Key 25 Horizon # _470159 Description Scr #10X.75"Panhead Phil Ss Almnd Head Price Qty RecItem
Key 26 Horizon # _470161 Description Scr #10X1"Butn Head Torx Zinc Plt Almnd Head Price Qty RecItem
Key 28 Horizon # _473134 Description Top Hp Price Qty RecItem
Key 29 Horizon # _473368 Description Fan Guard Sk050503-1 Price Qty RecItem
Key 30 Horizon # _470439 Description Nut Acorn 10-32 Tall Ss Price Qty RecItem
Key 31 Horizon # _470289 Description Fan Motor, Pentair ThermalFlo Heat Pump, w/ Acorn Nut Price Qty RecItem View recommended items
Key 32 Horizon # _473223 Description Fan Blade Lau 4 Price Qty RecItem
Key 33 Horizon # _470137 Description Bracket Tie Down Price Qty RecItem
Key 34 Horizon # 47-110-1616 Description Thermistor Probe, Pentair Minimax NT Price Qty RecItem View recommended items
Key 35 Horizon # _473606 Description Boot Swtch Press Wtr Hp Price Qty RecItem
Key 36 Horizon # 47-110-1622 Description Pressure Switch, Pentair Minimax NT/Minimax CH,1/4"mpt,SPNO Price Qty RecItem View recommended items
Key 38 Horizon # _473774Z Description Kit Bypass Rplcmnt Price Qty RecItem
Key 40 Horizon # _473381 Description Union Pvc 2"X2" Price Qty RecItem View recommended items
Key 41 Horizon # _473656 Description Swtch 70/120 Low Press Price Qty RecItem
Key 42 Horizon # _473655 Description Swtch 520/380 High Press Price Qty RecItem
Key 43 Horizon # _472735 Description Txv 8Ton 20 Percent Bld Price Qty RecItem
Key 44 Horizon # Discontinued Description Strap Titanium Wtr Coil Price Qty RecItem

Not Shown

Key Horizon # Description Qty
Key Horizon # Discontinued Description Vlv Rvrsng Price Qty RecItem
Key Horizon # _473432 Description Coil Rvrsng Vlv Price Qty RecItem
Key Horizon # _473034 Description Rtlock Lo Side W/Gskt Price Qty RecItem
Key Horizon # _473035 Description Rtlock Hi Side W/Gskt Price Qty RecItem
