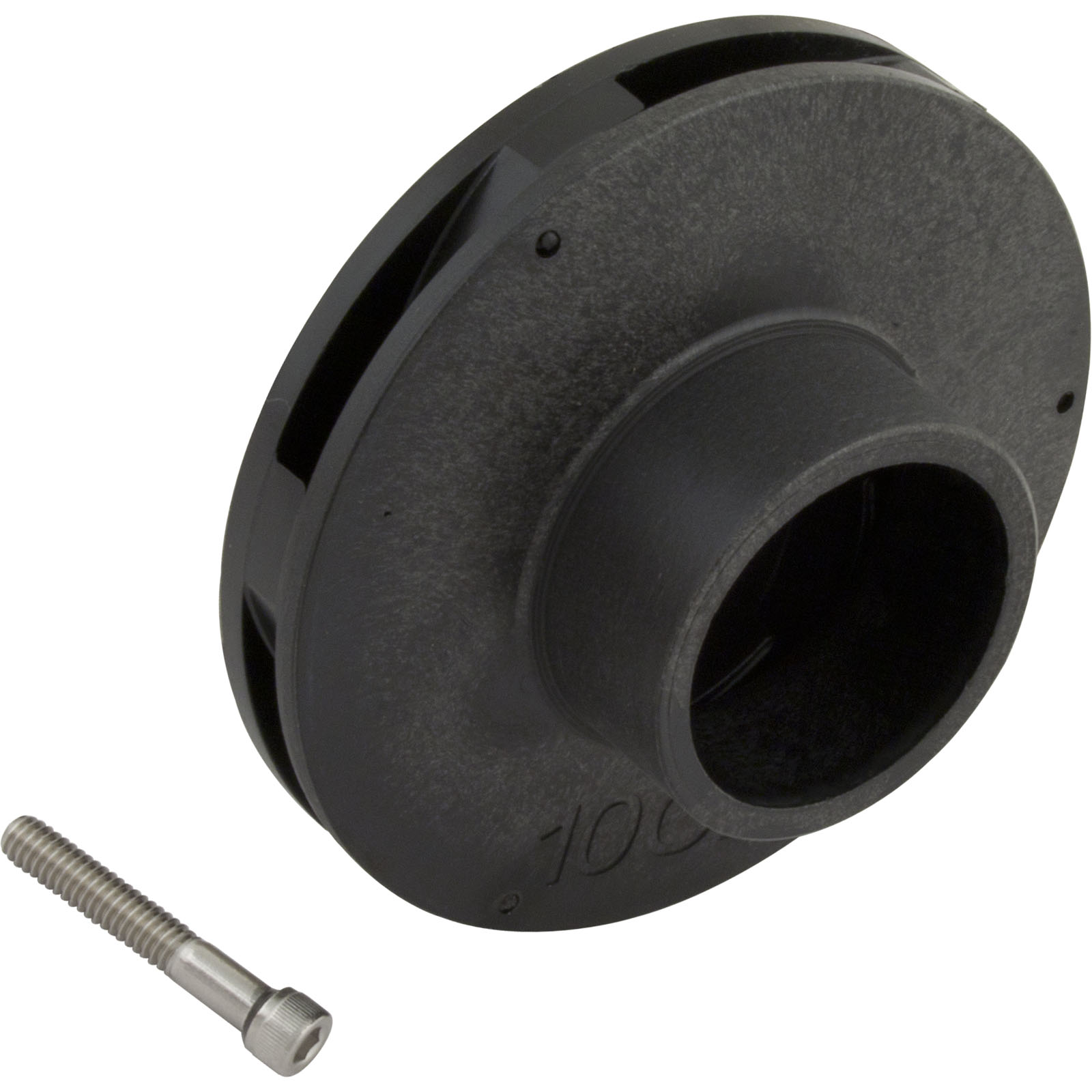

Impeller, Hayward Tristar, 1.0ohp/1.5thp, w/Screw

Impeller,Hayward Tristar, 1.0ohp/1.5thp, w/Screw 35-150-3532

Multiple Views:

main 1-reverse 4-side 5-screw

Horizon # 35-150-3532

Looking for identical information, stock status and pricing? Log in now to access to all this information and more!

Quantity:
+ Add To Cart
X Cart Updated

Ordering Options:

  Add
  Add
All dates are the manufacturer's best estimate. Dates are not guaranteed.
Cancel + Add


Detailed Product Info

Back To Top ^
Hayward Pump Impeller

Closed face impeller made for the TriStar SP3200/SP3200EE/SP3600 pool pump by Hayward. Rated at 1.0hp, it is used in a SP3200 and or SP3600 pump body, and must be installed on a 1.0hp (or greater) square flange motor. Shaft seal sold separately
Horizon #Description Exploded Diagram
Horizon # 34-150-W031 Product Hayward TriStar Pump Models SP3200, SP3200EE, SP3600   Exploded Diagram EXPLODED DIAGRAM
Horizon # 34-150-W041 Product Hayward TriStar VS Pump Replacement Parts   Exploded Diagram EXPLODED DIAGRAM
Horizon # 34-150-W042 Product Hayward TriStar VS 900/950 Pump Replacement Parts   Exploded Diagram EXPLODED DIAGRAM
Horizon # 34-150-W043 Product Hayward TriStar XE Pump Replacement Parts   Exploded Diagram EXPLODED DIAGRAM
Horizon #Product Description Qty
Horizon # 35-150-3532 Product Impeller,Hayward Tristar, 1.0ohp/1.5thp, w/Screw Price Qty List Order
Horizon # _SPX3207C Product Impeller-3/4Hp W/Screw Price Qty List Order
Horizon # _SPX3230C5 Product Impeller-5Hp W/Screw Price Qty List Order
Horizon # 35-150-3530 Product Impeller,Hayward Tristar, 0.5ohp/0.75thp, w/Screw Price Qty List Order
Horizon # 35-150-3531 Product Impeller,Hayward Tristar, 0.75ohp/1.0thp, w/Screw Price Qty List Order
Horizon # 35-150-3533 Product Impeller,Hayward Tristar, 1.5ohp/2.0thp, w/Screw Price Qty List Order
Horizon # 35-150-3534 Product Impeller,Hayward Tristar SP3200X, 2.5thp, w/Screw Price Qty List Order
Horizon # 35-150-3535 Product Impeller, Hayward Tristar, 3.0 Horsepower, with Screw Price Qty List Order
Horizon # 35-150-3536 Product Impeller,Hayward EcoStar C/Tristar SP3200/EE/SP3600, 2.0hp Price Qty List Order
Horizon # 35-150-3537 Product Impeller, Hayward Tristar SP3601, 0.75GPM, with Screw Price Qty List Order
Search Using These Specs Partsology ©
Impeller Type Closed Face
Impeller Diameter OD 4-9/16"
Vane Width ID 5/16"
Eye Diameter OD 2-3/16"
Eye Length 15/16"
Impeller Width OD 11/16"
Seal Seat Depth 11/16"
Shaft Length n/a
Shaft Diameter OD n/a
Seal Seat Diameter OD 1-1/8"
Manufacturer Hayward
Pump Application SP3200, SP3200EE, SP3600, Tristar

Looking for the description, tech tips, exploded diagram, available styles, documentation, specifications, kit components, and other information? Log in now to access to all this information and more!
