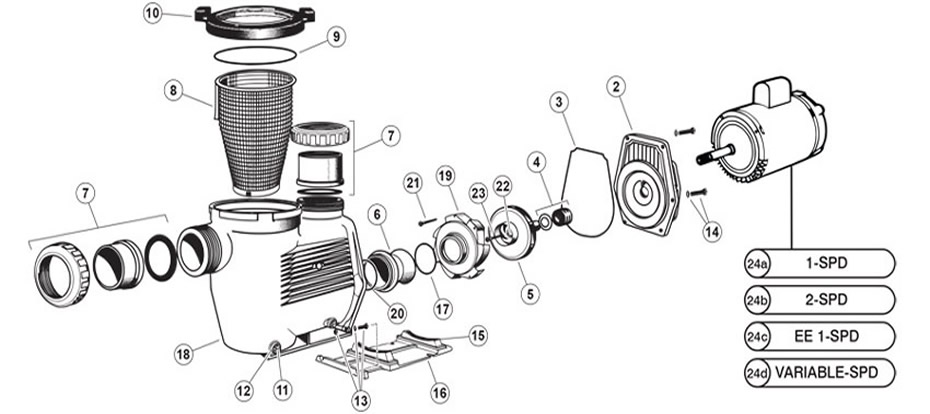

Waterco HydroStar (2-1/2") Self Priming Semi-Commercial Pump

Product Description  ·  Parts  ·  1-Speed Motors  ·  2-Speed Motors  ·  Energy Efficient 1-Speed Motors  ·  Variable Speed Motors  ·  Tools
Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View

Product Description

Note:

-This series is a medium head pump whose parts will interchange with the Zodiac/Jandy JHP/JHPU series pumps.

-Key #4 - the shaft seal looks similar to a PS1000 (35-423-1060) replacement, but it is slightly larger. Please order the original shaft seal.

Parts

Key Horizon # Description Qty
Key 2 Horizon # 35-252-1204 Description Seal Plate, Waterco HydroStar Price Qty RecItem View recommended items
Key 3 Horizon # 35-252-1207 Description Gasket, Waterco HydroStar, Seal Plate Price Qty RecItem View recommended items
Key 4 Horizon # 35-252-1006 Description Shaft Seal, Waterco/Jandy, 3/4" Shaft, Buna, Generic Price Qty RecItem View recommended items
Key 5 Horizon # 35-252-1156 Description Impeller, Waterco HydroStorm, 0.75 Horsepower Price Qty RecItem View recommended items
Key 5 Horizon # 35-252-1157 Description Impeller, Waterco HydroStorm/Plus/Star, 0.75hp Price Qty RecItem View recommended items
Key 5 Horizon # 35-252-1159 Description Impeller, Waterco HydroStorm, 1.0 Horsepower Price Qty RecItem View recommended items
Key 5 Horizon # 35-252-1162 Description Impeller, Waterco HydroStorm, 1.5 Horsepower Price Qty RecItem View recommended items
Key 5 Horizon # 35-252-1165 Description Impeller, Waterco HydroStorm/Plus/Star, 2.0hp Price Qty RecItem View recommended items
Key 5 Horizon # 35-252-1168 Description Impeller, Waterco HydroStorm, 3.0 Horsepower Price Qty RecItem View recommended items
Key 6 Horizon # 35-252-1210 Description Suction Nozzle, Waterco HydroStar, 0.75-2.0hp, blk Price Qty RecItem View recommended items
Key 6 Horizon # Discontinued Description Suction Nozzle, Waterco HydroStar, 3.0hp Price Qty RecItem View recommended items
Key 7 Horizon # 89-252-1120 Description Union Adapter, 2-1/2" Buttress Thread x 2" Slip Price Qty RecItem View recommended items
Key 8 Horizon # 35-252-1219 Description Basket, Pump, OEM Waterco Hydrostar Price Qty RecItem View recommended items
Key 9 Horizon # 90-423-5368 Description O-Ring, 7-3/4" ID, 3/16" Cross Section, Generic Price Qty RecItem View recommended items
Key 10 Horizon # 35-252-1225 Description Trap Lid, Waterco HydroStar Price Qty RecItem View recommended items
Key 11 Horizon # 35-252-1030 Description Drain Plug, Waterco Price Qty RecItem View recommended items
Key 12 Horizon # 35-252-1228 Description Gasket, Waterco HydroStar, Drain Plug, 1/2"ID, 7/8"OD Price Qty RecItem View recommended items
Key 13 Horizon # Discontinued Description Nut, Waterco SupaTuf/HydroStorm/SupaStream, 1/4-20 Price Qty RecItem
Key 13 Horizon # Discontinued Description Washer, Waterco SupaTuf/HydroStorm/SupaStream, 1/4" Price Qty RecItem
Key 13 Horizon # Discontinued Description Bolt, Waterco SupaTuf/HydroStorm/SupaStream, 1/4-20 x 1" Price Qty RecItem
Key 15 Horizon # 35-252-1237 Description Motor Support, Waterco HydroStar Price Qty RecItem View recommended items
Key 16 Horizon # 35-252-1240 Description Pump Stand, Waterco HydroStar Price Qty RecItem View recommended items
Key 17 Horizon # 35-252-1090 Description Square Ring, Waterco HydroStorm/HydroStar/SupaTuf, Diffuser Price Qty RecItem View recommended items
Key 17 Horizon # 90-423-5234 Description O-Ring, Buna-N, 3" ID, 1/8" Cross Section, Generic Price Qty RecItem View recommended items
Key 18 Horizon # 35-252-1243 Description Trap/Pump Body, Waterco HydroStar, 0.75-2.0hp Price Qty RecItem View recommended items
Key 18 Horizon # 35-252-1246 Description Trap/Pump Body, Waterco HydroStar Price Qty RecItem View recommended items
Key 18 Horizon # 35-252-1260 Description Trap/Pump Body, Waterco HydroStar,0.75-2hp,2.5",w/M8 Insert Price Qty RecItem View recommended items
Key 19 Horizon # 35-252-1171 Description Diffuser, Waterco HydroStorm, 0.75-2.0hp Price Qty RecItem View recommended items
Key 19 Horizon # 35-252-1174 Description Diffuser, Waterco HydroStorm/HydroStar, 3.0hp Price Qty RecItem View recommended items
Key 20 Horizon # 90-423-5234 Description O-Ring, Buna-N, 3" ID, 1/8" Cross Section, Generic Price Qty RecItem View recommended items
Key 21 Horizon # Discontinued Description Screw, Waterco AquaMite/SupaMite, 3.0hp Diffuser Price Qty RecItem View recommended items
Key 22 Horizon # 35-252-1249 Description Washer, Waterco HydroStar, Impeller, Fiber Price Qty RecItem View recommended items
Key 23 Horizon # Discontinued Description Screw, Waterco HydroStar, Impeller Price Qty RecItem View recommended items

1-Speed Motors

Key Horizon # Description Qty
Key 24a Horizon # 35-126-1417 Description Motor, Century,0.75hp,115v/230v,1-Spd,56Jfr,C-Face Thd Price Qty RecItem View recommended items
Key 24a Horizon # 35-126-1419 Description Motor, Century,1.0hp,115v/230v,1-Spd,56Jfr,C-Face Thd Price Qty RecItem View recommended items
Key 24a Horizon # 35-126-1421 Description Motor, Century,1.5hp,115v/230v,1-Spd,56Jfr,C-Face Thd Price Qty RecItem View recommended items
Key 24a Horizon # 35-126-1423 Description Motor, Century,2.0hp,115v/230v,1-Spd,56Jfr,C-Face Thd Price Qty RecItem View recommended items
Key 24a Horizon # 35-126-1425 Description Motor, Century,3.0hp,230v,1-Spd,56Jfr,C-Face Thd Price Qty RecItem View recommended items
Key 24a Horizon # 35-126-3022 Description Motor, Century,0.75hp,115v/230v,1-Spd,56Jfr,C-Face Thd Price Qty RecItem View recommended items
Key 24a Horizon # 35-126-3024 Description Motor, Century,1.0hp,115v/230v,1-Spd,56Jfr,C-Face Thd Price Qty RecItem View recommended items
Key 24a Horizon # Discontinued Description Motor, Century,1.5hp,115v/208v-230v,1-Spd,56Jfr,C-FaceThd Price Qty RecItem View recommended items
Key 24a Horizon # 35-126-3028 Description Motor, Century,2.0hp,208v-230v,1-Spd,56Jfr,C-Face Thd Price Qty RecItem View recommended items

2-Speed Motors

Key Horizon # Description Qty
Key 24b Horizon # 35-126-1314 Description Motor, Century,0.75hp,115v,2-Spd,56Jfr,C-Face Thd Price Qty RecItem View recommended items
Key 24b Horizon # Discontinued Description Motor, Century,0.75hp,230v,2-Spd,56Jfr,C-Face Thd Price Qty RecItem View recommended items
Key 24b Horizon # 35-126-1318 Description Motor, Century,1.0hp,230v,2-Spd,56Jfr,C-Face Thd Price Qty RecItem View recommended items
Key 24b Horizon # 35-126-1320 Description Motor, Century,1.5hp,230v,2-Spd,56Jfr,C-Face Thd Price Qty RecItem View recommended items
Key 24b Horizon # 35-126-1322 Description Motor, Century,2.0hp,230v,2-Spd,56Jfr,C-Face Thd Price Qty RecItem View recommended items
Key 24b Horizon # 35-126-1324 Description Motor, Century,3.0hp,230v,2-Spd, 56Jfr,C-Face Thd Price Qty RecItem View recommended items

Energy Efficient 1-Speed Motors

Key Horizon # Description Qty
Key 24c Horizon # 35-126-1372 Description Motor, Century,0.75hp,115v/230v,1-Spd,56Jfr,C-Face Thd,EE Price Qty RecItem View recommended items
Key 24c Horizon # 35-126-1374 Description Motor,Century,1.0hp,115v/230v,1-Spd,56Jfr,C-Face Thd,EE Price Qty RecItem View recommended items
Key 24c Horizon # 35-126-1376 Description Motor, Century,1.5hp,115v/208-230v,1Spd,56Jfr,C-Face Thd,EE Price Qty RecItem View recommended items
Key 24c Horizon # 35-126-1378 Description Motor, Century,2.0hp,208v-230v,1-Spd,56Jfr,C-Face Thd,EE Price Qty RecItem View recommended items
Key 24c Horizon # 35-126-1380 Description Motor,Century,3.0hp,208v-230v,1-Spd,56Jfr,C-Face Thd,EE Price Qty RecItem View recommended items
Key 24c Horizon # 35-126-3032 Description Motor, Century,3.0hp,208v-230v,1-Spd,56Jfr,C-Face Thd,EE Price Qty RecItem View recommended items

Variable Speed Motors

Key Horizon # Description Qty
Key 24d Horizon # Discontinued Description Motor, Century,0.75-2.7hp,230v,Var-Spd,48fr,C-Face Thd,V-Grn Price Qty RecItem View recommended items
Key 24d Horizon # Discontinued Description Motor, Century, 208v-230v, Var-Spd, 48fr, C-Face Thd, V-Grn Price Qty RecItem View recommended items

Tools

Key Horizon # Description Qty
Key Horizon # 99-615-1000 Description Tool, Klorkinator, Lid/Cover Removal Tool Price Qty RecItem View recommended items
