Hayward HCP Series, HCP55/75/100/125, Commercial Pool Pump

Product Description · Parts · Screw Set · Pump Casing Kit · Casing Bolt Kit · Seal Set · Lid Bolt Set · Motor Parts and Complete Motors · Tools

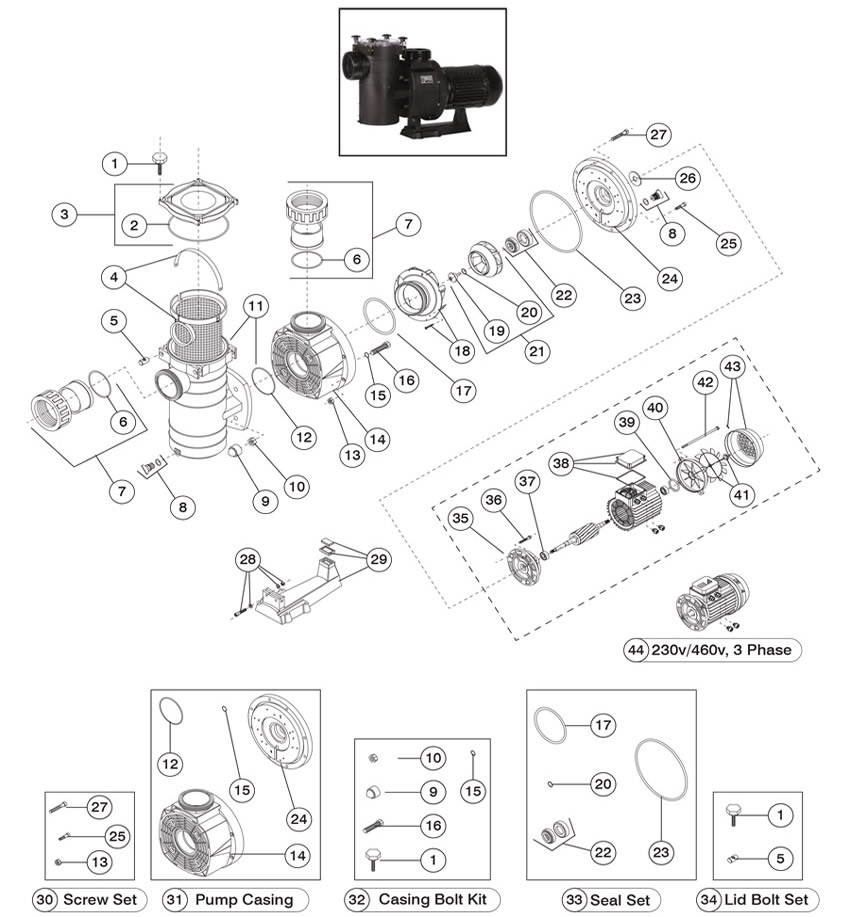

Parts

Key	Horizon #	Description		Qty
Key 1	Horizon # Discontinued	Description Screw, Hayward HCP, Lid	Price	Qty	RecItem
Key 2	Horizon # 35-150-4038	Description O-Ring, Hayward HCP, Lid	Price	Qty	RecItem
Key 3	Horizon # 35-150-4026	Description Lid, Hayward HCP, Pump, with O-Ring	Price	Qty	RecItem
Key 4	Horizon # 35-150-4028	Description Basket, Pump, OEM, Hayward HCP	Price	Qty	RecItem
Key 5	Horizon # Discontinued	Description Pin, Hayward HCP, Lid	Price	Qty	RecItem
Key 6	Horizon # Discontinued	Description O-Ring, Hayward HCP, Pump Union	Price	Qty	RecItem
Key 7	Horizon # 35-150-4012	Description Union Kit, Hayward HCP, 4"	Price	Qty	RecItem
Key 8	Horizon # 35-150-4014	Description Drain Plug, Hayward HCP, with O-Ring	Price	Qty	RecItem
Key 9	Horizon # Discontinued	Description Cover Screw, Hayward HCP	Price	Qty	RecItem
Key 10	Horizon # Discontinued	Description Nut, Hayward HCP, M16, Trap Body	Price	Qty	RecItem
Key 11	Horizon # 35-150-4050	Description Trap/Pump Body, Hayward HCP	Price	Qty	RecItem
Key 12	Horizon # 35-150-4056	Description O-Ring, Hayward HCP, Body	Price	Qty	RecItem
Key 13	Horizon # Discontinued	Description Nut, Hayward HCP, M10, Volute	Price	Qty	RecItem
Key 14	Horizon # Discontinued	Description Volute, Hayward HCP55/75/100/125	Price	Qty	RecItem
Key 15	Horizon # Discontinued	Description O-Ring, Hayward HCP, Screw	Price	Qty	RecItem
Key 16	Horizon # Discontinued	Description Screw, Hayward HCP, M16 x 40, Volute	Price	Qty	RecItem
Key 17	Horizon # Discontinued	Description O-Ring, Hayward HCP, Diffuser	Price	Qty	RecItem
Key 18	Horizon # 35-150-4008	Description Diffuser, Hayward HCP100/125, 10.0/12.5hp, w/Hardware	Price	Qty	RecItem
Key 18	Horizon # 35-150-4030	Description Diffuser, Hayward HCP55/75, 5.5/7.5hp, w/Hardware	Price	Qty	RecItem
Key 19	Horizon # Discontinued	Description Impeller Stopper, Hayward HCP	Price	Qty	RecItem
Key 20	Horizon # Discontinued	Description O-Ring, Hayward HCP, Impeller	Price	Qty	RecItem
Key 21	Horizon # 35-150-4000	Description Impeller Kit, Hayward HCP55, 5.5hp	Price	Qty	RecItem
Key 21	Horizon # 35-150-4002	Description Impeller Kit, Hayward HCP100, 10.0hp	Price	Qty	RecItem
Key 21	Horizon # 35-150-4004	Description Impeller Kit, Hayward HCP125, 12.5hp	Price	Qty	RecItem
Key 21	Horizon # 35-150-4032	Description Impeller Kit, Hayward HCP75, 7.5hp	Price	Qty	RecItem
Key 22	Horizon # Discontinued	Description Shaft Seal, Hayward HCP	Price	Qty	RecItem
Key 23	Horizon # 35-150-4040	Description O-Ring, Hayward HCP, Flange	Price	Qty	RecItem
Key 24	Horizon # 35-150-4042	Description Seal Plate Only, Hayward HCP	Price	Qty	RecItem
Key 25	Horizon # Discontinued	Description Screw, Hayward HCP, M10 x 30, Seal Plate	Price	Qty	RecItem
Key 26	Horizon # 33-333-3333	Description This Item is Not Available	Price	Qty	RecItem
Key 27	Horizon # Discontinued	Description Screw, Hayward HCP, M10 x 130, Seal Plate	Price	Qty	RecItem
Key 28	Horizon # 35-150-4052	Description Bolt Set, Hayward HCP, Pump Support	Price	Qty	RecItem
Key 29	Horizon # 35-150-4036	Description Pump Support, Hayward HCP	Price	Qty	RecItem

Screw Set

Key	Horizon #	Description		Qty
Key 13	Horizon # Discontinued	Description Nut, Hayward HCP, M10, Volute	Price	Qty	RecItem
Key 25	Horizon # Discontinued	Description Screw, Hayward HCP, M10 x 30, Seal Plate	Price	Qty	RecItem
Key 27	Horizon # Discontinued	Description Screw, Hayward HCP, M10 x 130, Seal Plate	Price	Qty	RecItem
Key 30	Horizon # 35-150-4044	Description Screw Set, Hayward HCP, Seal Plate	Price	Qty	RecItem

Pump Casing Kit

Key	Horizon #	Description		Qty
Key 12	Horizon # 35-150-4056	Description O-Ring, Hayward HCP, Body	Price	Qty	RecItem
Key 14	Horizon # Discontinued	Description Volute, Hayward HCP55/75/100/125	Price	Qty	RecItem
Key 15	Horizon # Discontinued	Description O-Ring, Hayward HCP, Screw	Price	Qty	RecItem
Key 24	Horizon # 35-150-4042	Description Seal Plate Only, Hayward HCP	Price	Qty	RecItem
Key 31	Horizon # 35-150-4034	Description Pump Casing, Hayward HCP	Price	Qty	RecItem

Casing Bolt Kit

Key	Horizon #	Description		Qty
Key 1	Horizon # Discontinued	Description Screw, Hayward HCP, Lid	Price	Qty	RecItem
Key 9	Horizon # Discontinued	Description Cover Screw, Hayward HCP	Price	Qty	RecItem
Key 10	Horizon # Discontinued	Description Nut, Hayward HCP, M16, Trap Body	Price	Qty	RecItem
Key 15	Horizon # Discontinued	Description O-Ring, Hayward HCP, Screw	Price	Qty	RecItem
Key 16	Horizon # Discontinued	Description Screw, Hayward HCP, M16 x 40, Volute	Price	Qty	RecItem
Key 32	Horizon # 35-150-4048	Description Bolt, Hayward HCP, Pump Casing, Quantity 4	Price	Qty	RecItem

Seal Set

Key	Horizon #	Description		Qty
Key 17	Horizon # Discontinued	Description O-Ring, Hayward HCP, Diffuser	Price	Qty	RecItem
Key 20	Horizon # Discontinued	Description O-Ring, Hayward HCP, Impeller	Price	Qty	RecItem
Key 22	Horizon # Discontinued	Description Shaft Seal, Hayward HCP	Price	Qty	RecItem
Key 23	Horizon # 35-150-4040	Description O-Ring, Hayward HCP, Flange	Price	Qty	RecItem
Key 33	Horizon # 35-150-4006	Description O-Ring/Gasket Kit, Hayward HCP	Price	Qty	RecItem

Lid Bolt Set

Key	Horizon #	Description		Qty
Key 1	Horizon # Discontinued	Description Screw, Hayward HCP, Lid	Price	Qty	RecItem
Key 5	Horizon # Discontinued	Description Pin, Hayward HCP, Lid	Price	Qty	RecItem
Key 34	Horizon # 35-150-4024	Description Bolt Set, Hayward HCP, Lid, with Cover Screw and Pin	Price	Qty	RecItem

Motor Parts and Complete Motors

Key	Horizon #	Description		Qty
Key 35	Horizon # 35-150-4078	Description Flange, Hayward HCP55, Motor	Price	Qty	RecItem
Key 35	Horizon # 35-150-4080	Description Flange, Hayward HCP75/100/125, Motor	Price	Qty	RecItem
Key 36	Horizon # 35-150-4046	Description Screw, Hayward HCP, Motor Mount, Quantity 4	Price	Qty	RecItem
Key 37	Horizon # 35-150-4058	Description Bearings Set, Hayward HCP55	Price	Qty	RecItem
Key 37	Horizon # 35-150-4060	Description Bearings Set, Hayward HCP75/100/125	Price	Qty	RecItem
Key 38	Horizon # 35-150-4082	Description Connection Box Set, Hayward HCP	Price	Qty	RecItem
Key 39	Horizon # 35-150-4062	Description Washer Set, Hayward HCP55	Price	Qty	RecItem
Key 39	Horizon # 35-150-4064	Description Washer Set, Hayward HCP75/100/125	Price	Qty	RecItem
Key 40	Horizon # 35-150-4066	Description Motor Cover, Hayward HCP55	Price	Qty	RecItem
Key 40	Horizon # 35-150-4068	Description Motor Cover, Hayward HCP75/100/125	Price	Qty	RecItem
Key 41	Horizon # 35-150-4070	Description Fan, Hayward HCP55/75/100/125, 5.5 Horsepower	Price	Qty	RecItem
Key 41	Horizon # 35-150-4072	Description Fan, Hayward HCP75/100/125	Price	Qty	RecItem
Key 42	Horizon # 35-150-4084	Description Tie Rod, Hayward HCP55, Quantity 4	Price	Qty	RecItem
Key 42	Horizon # 35-150-4086	Description Tie Rod, Hayward HCP75/100, Quantity 4	Price	Qty	RecItem
Key 42	Horizon # 35-150-4088	Description Tie Rod, Hayward HCP125, Quantity 4	Price	Qty	RecItem
Key 43	Horizon # 35-150-4074	Description Fan Cover, Hayward HCP55	Price	Qty	RecItem
Key 43	Horizon # 35-150-4076	Description Fan Cover, Hayward HCP75/100/125	Price	Qty	RecItem
Key 44	Horizon # 35-150-4016	Description Motor, Hayward, 5.5 Horsepower, 1 Speed, HCP55	Price	Qty	RecItem
Key 44	Horizon # 35-150-4018	Description Motor, Hayward, 7.5 Horsepower, 1 Speed, HCP75	Price	Qty	RecItem
Key 44	Horizon # 35-150-4020	Description Motor, Hayward, 10.0 Horsepower, 1 Speed, HCP100	Price	Qty	RecItem
Key 44	Horizon # 35-150-4022	Description Motor, Hayward, 12.5 Horsepower, 1 Speed, HCP125	Price	Qty	RecItem

Tools

Key	Horizon #	Description			Qty
Key	Horizon # 99-615-1004	Description Tool, Hex-Knob Socket, HCP100,w/1/4" Skt Bit Adpater		Price	Qty	RecItem
