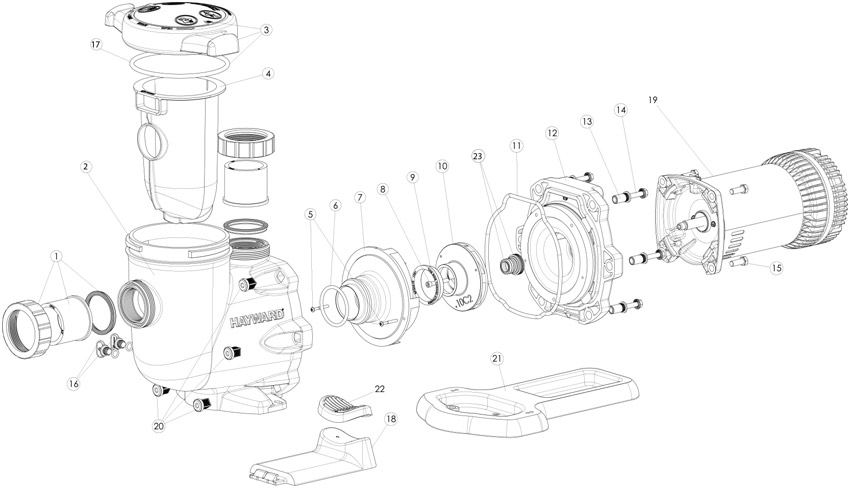

Hayward TriStar XE Pump Replacement Parts

Product Description  ·  Parts  ·  Power End Assembly  ·  Complete Pump

Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View

Parts

Key Horizon # Description Qty
Key 1 Horizon # 89-150-1171 Description Union Kit, Hayward SP4000, TriStar, 2"s x fhbt, Black, qty 2 Price Qty RecItem View recommended items
Key 2 Horizon # 35-150-3520 Description Trap/Pump Body, Hayward Tristar Price Qty RecItem View recommended items
Key 3 Horizon # 35-150-3521 Description Trap Lid, Hayward Tristar/EcoStar C, w/ o-ring Price Qty RecItem View recommended items
Key 4 Horizon # 35-150-3524 Description Basket, Pump, OEM Hayward EcoStar C/TriStar SP3200/EE/3600 Price Qty RecItem View recommended items
Key 5 Horizon # 35-150-3525 Description Screw, Hayward Tristar/EcoStar C, Diffuser, Quantity 2 Price Qty RecItem View recommended items
Key 6 Horizon # 35-150-3526 Description O-Ring, Hayward Northstar pre-2008/Tristar, Diffuser, O-83 Price Qty RecItem View recommended items
Key 6 Horizon # 90-423-5332 Description O-Ring, 2-3/8" ID, 3/16" Cross Section, Generic Price Qty RecItem View recommended items
Key 7 Horizon # 35-150-3527 Description Diffuser, Hayward Tristar/EcoStar C Price Qty RecItem View recommended items
Key 8 Horizon # 35-150-3528 Description Screw, Hayward Tristar/EcoStar C, Impeller Price Qty RecItem View recommended items
Key 9 Horizon # 35-150-3041 Description Wear Ring, Hayward Northstar/Super II, .75hp-2.0hp Price Qty RecItem View recommended items
Key 10 Horizon # _SPX3207C Description Impeller-3/4Hp W/Screw Price Qty RecItem View recommended items
Key 10 Horizon # 35-150-3532 Description Impeller,Hayward Tristar, 1.0ohp/1.5thp, w/Screw Price Qty RecItem View recommended items
Key 10 Horizon # 35-150-3533 Description Impeller,Hayward Tristar, 1.5ohp/2.0thp, w/Screw Price Qty RecItem View recommended items
Key 11 Horizon # 35-150-3539 Description O-Ring, Hayward Tristar/EcoStar C, Housing Price Qty RecItem View recommended items
Key 12 Horizon # 35-150-3540 Description Seal Plate, Hayward Tristar/EcoStar C Price Qty RecItem View recommended items
Key 13 Horizon # 35-150-3541 Description Spacer, Hayward Tristar/EcoStar C, Seal Plate Price Qty RecItem View recommended items
Key 14 Horizon # 35-150-3547 Description Bolt, Hayward Tristar/EcoStar C, Seal Plate Price Qty RecItem View recommended items
Key 15 Horizon # 35-150-4510 Description Bolt, Hayward TriStar/Booster 6060, Seal Plate, Quantity 4 Price Qty RecItem View recommended items
Key 16 Horizon # 35-150-3216 Description Drain Plug, Hayward Northstar/Booster/Tristar, with O-Ring Price Qty RecItem View recommended items
Key 17 Horizon # 35-150-3523 Description O-Ring, Hayward Tristar/EcoStar C, Trap Lid, O-13 Price Qty RecItem View recommended items
Key 17 Horizon # 90-423-5437 Description O-Ring, 6" ID,1/4" Cross Section, Generic Price Qty RecItem View recommended items
Key 18 Horizon # 35-150-3543 Description Bracket, Hayward Tristar/EcoStar C, Pump Stand Price Qty RecItem View recommended items
Key 21 Horizon # 35-150-3544 Description Pump Stand, Hayward Tristar/EcoStar C, Tall Price Qty RecItem View recommended items
Key 21 Horizon # 35-150-3546 Description Pump Stand, Hayward Tristar/EcoStar C, Short Price Qty RecItem View recommended items
Key 23 Horizon # 35-150-3510 Description Shaft Seal, Viton, Hayward TriStar VS 900/VS 950/XL/XE Price Qty RecItem
Key 23 Horizon # 35-150-3538 Description Shaft Seal, Hayward Northstar/Tristar/Ecostar, 5/8"Shaft Price Qty RecItem View recommended items

Power End Assembly

Key Horizon # Description Qty
Key Horizon # 35-150-3410 Description Power End Assembly, Hayward TriStar XE, 2.25hp Price Qty RecItem View recommended items
Key Horizon # 35-150-3555 Description Power End, Hayward TriStar XE, 1.85hp Price Qty RecItem View recommended items

Complete Pump

Key Horizon # Description Qty
Key Horizon # 34-150-1070 Description Pump, Hayward TriStar XE,1.25hp,115/230v,Var-Spd,Expert Line Price Qty RecItem View recommended items
Key Horizon # 34-150-1075 Description Pump, Hayward TriStar XE,2.25hp,115/230v,Var-Spd,Expert Line Price Qty RecItem View recommended items
