Hayward MaxFlo VS Pump Replacement Parts

Product Description  ·  Parts  ·  Not Pictured  ·  Complete Pump  ·  Motors
Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View

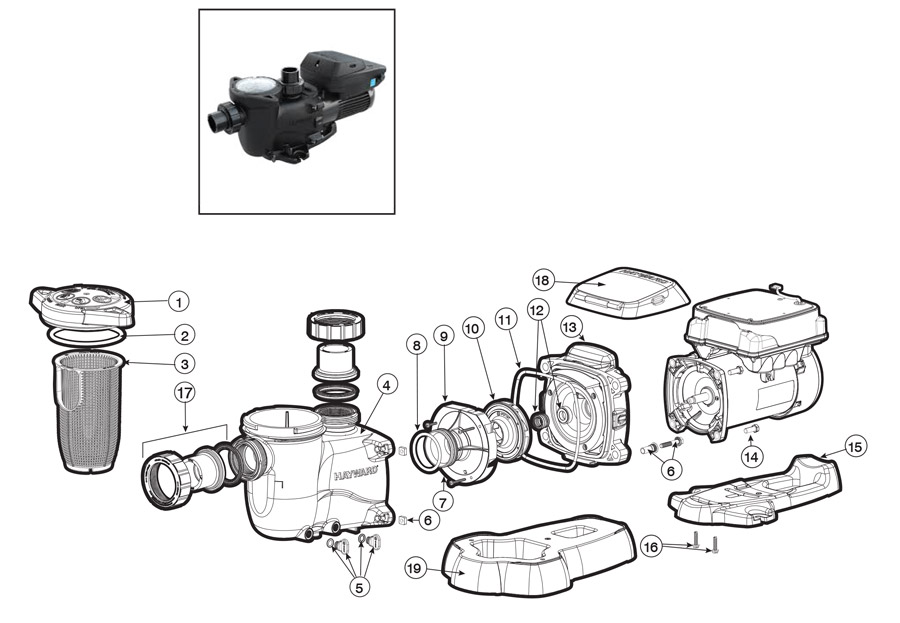

Parts

Key Horizon # Description Qty
Key 1 Horizon # _SPX2300DLS Description Kit-Strainer Cover Price Qty RecItem View recommended items
Key 1 Horizon # Discontinued Description Kit-Baquacil Resistent Strainer Cover Price Qty RecItem
Key 2 Horizon # 35-150-1310 Description O-Ring, Hayward Max-Flo XL, Strainer Cover Price Qty RecItem View recommended items
Key 3 Horizon # _SPX2300M Description Basket-Strainer Price Qty RecItem View recommended items
Key 4 Horizon # _SPX2300AA Description Housing, Hayward MaxFlo XL/VS/XE Pump Price Qty RecItem View recommended items
Key 5 Horizon # 35-150-3216 Description Drain Plug, Hayward Northstar/Booster/Tristar, with O-Ring Price Qty RecItem View recommended items
Key 6 Horizon # Discontinued Description Hardware Kit, Hayward Max-Flo SP2700X, Seal Plate to Motor Price Qty RecItem
Key 7 Horizon # _SPX2300Z3PAK3 Description Screw-Diffuser, 3 Pack Price Qty RecItem
Key 8 Horizon # 90-423-5333 Description O-Ring, Buna-N, 2-1/2" ID, 3/16" Cross Section, Generic Price Qty RecItem View recommended items
Key 9 Horizon # _SPX2300B Description Diffuser, Hayward, MaxFlo VS/XE Pump Price Qty RecItem View recommended items
Key 10 Horizon # _SPX2300CVS Description Impeller-Max-Flo Xl (Sp2715Cv) Price Qty RecItem View recommended items
Key 11 Horizon # 90-423-5364 Description O-Ring, 6-3/4" ID, 3/16" Cross Section, Generic Price Qty RecItem View recommended items
Key 12 Horizon # 35-150-2506 Description Shaft Seal, Hayward Max-Flo/Booster 6060, 5/8" Shaft, Buna Price Qty RecItem View recommended items
Key 12 Horizon # 35-426-1560 Description Shaft Seal, PS-3960, 5/8" Shaft, Buna/Carbon Price Qty RecItem View recommended items
Key 13 Horizon # _SPX2300E Description Seal Plate, Hayward MaxFlo XL/VS/XE Price Qty RecItem View recommended items
Key 14 Horizon # 35-150-4510 Description Bolt, Hayward TriStar/Booster 6060, Seal Plate, Quantity 4 Price Qty RecItem View recommended items
Key 15 Horizon # _SPX2300G Description Base-Pump Price Qty RecItem
Key 16 Horizon # 35-150-2018 Description Screw, Hayward Max-Flo/Super Pump/Northstar,Pump Stand,qty 2 Price Qty RecItem View recommended items
Key 17 Horizon # 35-150-3575 Description Union, Hayward Max-Flo SP2700X, Quantity 2 Price Qty RecItem View recommended items
Key 18 Horizon # 35-150-3606 Description Display Cover, Hayward EcoStar C, Motor Drive, Black Price Qty RecItem View recommended items
Key 19 Horizon # _SPX2300GR Description Riser Base-Pump Maxflo Xl Price Qty RecItem View recommended items

Not Pictured

Key Horizon # Description Qty
Key Horizon # 35-150-3614 Description Wall Mount Kit, Hayward EcoStar C Price Qty RecItem View recommended items
Key Horizon # _SPXHKIT3 Description Kit-Quick Fix, Super Pump Price Qty RecItem View recommended items
Key Horizon # Discontinued Description Power End, Hayward MaxFlo, 1.5hp, Variable Speed, 230v Price Qty RecItem
Key Horizon # 35-150-3505 Description Digital Control Interface Assy, Hayward TriStar VS/Super VS Price Qty RecItem

Complete Pump

Key Horizon # Description Qty
Key Horizon # 34-150-1052 Description Pump, Hayward MaxFlo VS 500, 1.65thp, 115/230v, Expert Line Price Qty RecItem View recommended items

Motors

Key Horizon # Description Qty
Key Horizon # 35-126-1284 Description Motor, Century V-Green, 1.65hp, 115V/230V, 1Ph, 48YFr, TEFC Price Qty RecItem View recommended items
Key Horizon # 35-126-1285 Description Motor, Century V-Green, 2.25hp, 115V/230V, 1Ph,48YFr, TEFC Price Qty RecItem
