Hayward MaxFlo XL Pump Replacement Parts

Product Description  ·  Parts  ·  Complete Pump
Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View

Product Description

Pumps and replacement motors that are single speed and one (1) TOTAL HP or greater cannot be sold, offered for sale, or installed in a residential pool for filtration use in California, Title 20 CCR sections 1601-1609.

Parts

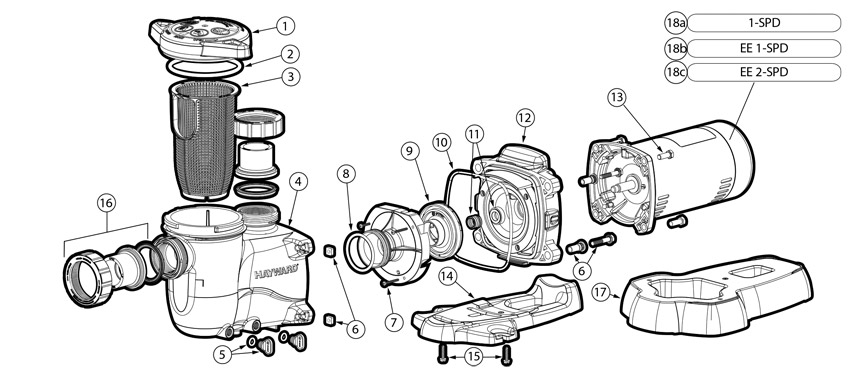

Key Horizon # Description Qty
Key 1 Horizon # Discontinued Description Kit-Baquacil Resistent Strainer Cover Price Qty RecItem
Key 2 Horizon # 35-150-1310 Description O-Ring, Hayward Max-Flo XL, Strainer Cover Price Qty RecItem View recommended items
Key 3 Horizon # _SPX2300M Description Basket-Strainer Price Qty RecItem View recommended items
Key 4 Horizon # _SPX2300AA Description Housing, Hayward MaxFlo XL/VS/XE Pump Price Qty RecItem View recommended items
Key 5 Horizon # 35-150-3216 Description Drain Plug, Hayward Northstar/Booster/Tristar, with O-Ring Price Qty RecItem View recommended items
Key 5 Horizon # 35-150-3542 Description Drain Plug, Hayward Northstar/Booster/Tristar, with O-Ring Price Qty RecItem View recommended items
Key 6 Horizon # Discontinued Description Hardware Kit, Hayward Max-Flo SP2700X, Seal Plate to Motor Price Qty RecItem
Key 7 Horizon # _SPX2300Z3PAK3 Description Screw-Diffuser, 3 Pack Price Qty RecItem
Key 8 Horizon # 17-150-1356 Description O-Ring, Hayward Swimclear/Pro-Grid, Bulkhead, O-649 Price Qty RecItem View recommended items
Key 8 Horizon # 35-150-3569 Description O-Ring, Hayward Max-Flo SP2700X, Diffuser, O-649 Price Qty RecItem View recommended items
Key 8 Horizon # 90-423-5333 Description O-Ring, Buna-N, 2-1/2" ID, 3/16" Cross Section, Generic Price Qty RecItem View recommended items
Key 9 Horizon # _SPX2700CSP Description Impeller - Small Pool Price Qty RecItem
Key 9 Horizon # 35-150-3578 Description Impeller, Hayward Max-Flo SP2700X, 0.75 Horsepower Price Qty RecItem View recommended items
Key 9 Horizon # 35-150-3579 Description Impeller, Hayward Max-Flo SP2700X, 1.0 Horsepower Price Qty RecItem View recommended items
Key 9 Horizon # 35-150-3580 Description Impeller, Hayward Max-Flo SP2700X, 1.5 Horsepower Price Qty RecItem View recommended items
Key 9 Horizon # 35-150-3581 Description Impeller, Hayward Max-Flo SP2700X, 2.0 Horsepower Price Qty RecItem View recommended items
Key 10 Horizon # 35-150-3571 Description O-Ring, Hayward Max-Flo SP2700X, Trap Body, O-263 Price Qty RecItem View recommended items
Key 10 Horizon # 90-423-5364 Description O-Ring, 6-3/4" ID, 3/16" Cross Section, Generic Price Qty RecItem View recommended items
Key 11 Horizon # 35-150-2506 Description Shaft Seal, Hayward Max-Flo/Booster 6060, 5/8" Shaft, Buna Price Qty RecItem View recommended items
Key 12 Horizon # _SPX2300E Description Seal Plate, Hayward MaxFlo XL/VS/XE Price Qty RecItem View recommended items
Key 13 Horizon # 35-150-4510 Description Bolt, Hayward TriStar/Booster 6060, Seal Plate, Quantity 4 Price Qty RecItem View recommended items
Key 14 Horizon # _SPX2300G Description Base-Pump Price Qty RecItem
Key 15 Horizon # 35-150-2018 Description Screw, Hayward Max-Flo/Super Pump/Northstar,Pump Stand,qty 2 Price Qty RecItem View recommended items
Key 16 Horizon # 35-150-3575 Description Union, Hayward Max-Flo SP2700X, Quantity 2 Price Qty RecItem View recommended items
Key 17 Horizon # _SPX2300GR Description Riser Base-Pump Maxflo Xl Price Qty RecItem View recommended items
Key 18A Horizon # _USQ1152 Description Mtr, Cent, 1.5Hp, 115/230V, 1-Sp, Sf1.1, 48Yfr Price Qty RecItem
Key 18A Horizon # _USQ1202 Description Mtr, Cent, 2Hp, 230V, 1-Sp, Sf1.1, 48Yfr Price Qty RecItem
Key 18A Horizon # 35-126-1092 Description Motor, Century, 1.0hp,115v/230v,1-Spd,48YFr,SQFL, Full Rated Price Qty RecItem
Key 18A Horizon # 35-126-1094 Description Motor, Century, 1.0hp, 115v/230v, 1-Speed, 48Y Frame Price Qty RecItem View recommended items
Key 18A Horizon # 35-150-3070 Description Motor, Hayward MaxFlo II/XL, 1.0hp, 115v/208-230v,Max Rate Price Qty RecItem View recommended items
Key 18A Horizon # 35-150-3080 Description Motor, Hayward MaxFlo XL, 1.5hp, 115v/208-230v, Max Rate Price Qty RecItem View recommended items
Key 18A Horizon # 35-184-1720 Description Motor, Nidec/US Motor, 1.0hp, 115/230v, 48Yfr, SQFL Price Qty RecItem View recommended items
Key 18A Horizon # 35-184-1725 Description Motor, Nidec/US Motor, 1.5hp, 115/230v, 1-Spd, 48Yfr, SQFL Price Qty RecItem View recommended items
Key 18B Horizon # 35-184-1730 Description Motor, Nidec/US Motor, 2.0hp, 230v, 1-Spd, 48Yfr, SQFL Price Qty RecItem View recommended items
Key 18C Horizon # 35-126-1176 Description Motor, Century, 1.5hp, 230v, 2-Spd, 48Yfr, SQFL, Full Price Qty RecItem View recommended items
Key 18C Horizon # 35-126-1184 Description Motor, Century, 2.0hp, 230v, 2-Spd, 48Yfr, SQFL, Full Price Qty RecItem View recommended items
Key 18C Horizon # 35-126-2374 Description Motor, AO Smith, 1.0hp, 230v, 2-Spd, 48Yfr, SQFL, EE Price Qty RecItem View recommended items

Complete Pump

Key Horizon # Description Qty
Key Horizon # 34-150-1040E Description Pump, Hayward MaxFlo XL, 1.0hp, 115V/208-230V, Open Line Price Qty RecItem View recommended items
