Home  >  Exploded Diagrams  >  Exploded Diagrams  >  Pumps  >  34-150-W021

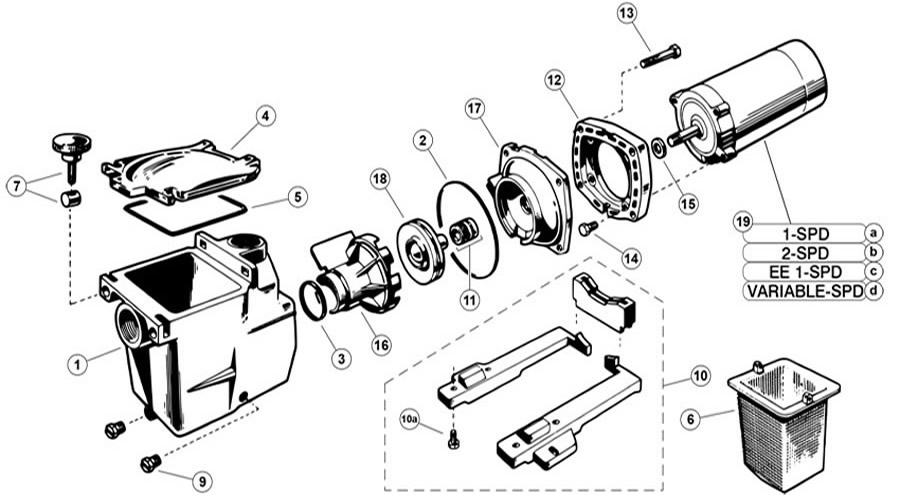

Hayward Super Pump SP 2600X Pump Series (Max rated)

Product Description  ·  Parts  ·  1-Speed Motors  ·  2-Speed Motors  ·  Energy Efficient 1-Speed Motors  ·  Variable Speed Motors  ·  Complete Pump  ·  Not Pictured
Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View

Parts

Key Horizon # Description Qty
Key 1 Horizon # Discontinued Description Trap/Pump Body, Hayward Super Pump Price Qty RecItem View recommended items
Key 1 Horizon # 35-150-2003 Description Trap/Pump Body, Hayward Super Pump, 2" Price Qty RecItem View recommended items
Key 2 Horizon # 35-150-2020 Description Gasket, Hayward Max-Flo, Seal Plate, 6-1/2"ID, 6-5/8"OD Price Qty RecItem View recommended items
Key 3 Horizon # 35-150-2030 Description Gasket, Hayward Super Pump/Max-Flo, Diffuser Price Qty RecItem View recommended items
Key 3 Horizon # 90-423-1141 Description Gasket, 2-1/16" ID, 2-3/8" OD, Generic, O-141 Price Qty RecItem View recommended items
Key 4 Horizon # 35-150-2006 Description Trap Lid, Hayward Super Pump Price Qty RecItem View recommended items
Key 5 Horizon # 35-150-2009 Description O-Ring, Hayward SP1600X/SP2600/SP2600X, Trap Lid, O-177 Price Qty RecItem View recommended items
Key 5 Horizon # 90-423-1177 Description Gasket, 5-11/16"OD x 6-11/16"OD, O-177 Price Qty RecItem View recommended items
Key 6 Horizon # 35-150-2005 Description Basket, Pump, OEM Hayward SP1600X SP2600 SP2600X Price Qty RecItem View recommended items
Key 6 Horizon # 35-423-1395 Description Basket, Pump, Generic, SP1600X-SP2600-SP2600X Price Qty RecItem View recommended items
Key 6 Horizon # 35-605-1090 Description Basket, Pump, Generic, SP1600X-SP2600-SP2600X Price Qty RecItem View recommended items
Key 7 Horizon # 35-150-2080 Description Knob, Hayward MaxFlo/Super Pump/Super II, Trap Lid Price Qty RecItem View recommended items
Key 9 Horizon # 35-150-1260 Description Drain Plug, Hayward Max-Flo/Super Pump, with O-Ring Price Qty RecItem View recommended items
Key 9 Horizon # 35-150-2012 Description Drain Plug, Hayward Max-Flo/Super Pump Price Qty RecItem View recommended items
Key 10 Horizon # 35-150-2015 Description Pump Stand, Hayward Max-Flo/Super Pump, 48 Frame Price Qty RecItem View recommended items
Key 10a Horizon # 35-150-2018 Description Screw, Hayward Max-Flo/Super Pump/Northstar,Pump Stand,qty 2 Price Qty RecItem View recommended items
Key 11 Horizon # 35-150-1706 Description Seal Kit, Hayward Max-Flo/Super Pump, blk Price Qty RecItem View recommended items
Key 11 Horizon # 35-423-1021 Description Shaft Seal, 201, 3/4" Shaft, Buna Price Qty RecItem View recommended items
Key 11 Horizon # 35-423-1023 Description Shaft Seal, PS-1902, 3/4" Shaft, Silicon Carbide PS-201 Price Qty RecItem View recommended items
Key 11 Horizon # 35-423-1025 Description Shaft Seal, 3/4" Shaft, Viton 201 Price Qty RecItem View recommended items
Key 11 Horizon # 35-426-1021US Description Shaft Seal, 201, 3/4" Shaft, Buna, US Seal Price Qty RecItem View recommended items
Key 12 Horizon # 35-150-2033 Description Motor Mount, Hayward Max-Flo/Super Pump Price Qty RecItem View recommended items
Key 13 Horizon # 35-150-2036 Description Bolt, Hayward Max-Flo/Super Pump, Seal Plate Price Qty RecItem View recommended items
Key 14 Horizon # 35-150-2039 Description Bolt, Hayward Max-Flo/Super Pump, Motor Mount, Quantity 4 Price Qty RecItem View recommended items
Key 15 Horizon # 35-150-2041 Description Water Slinger, Hayward Max-Flo/Super Pump Price Qty RecItem View recommended items
Key 16 Horizon # 35-150-2261 Description Diffuser, Hayward Super Pump/Super II, 0.75-2.0 Horsepower Price Qty RecItem View recommended items
Key 16 Horizon # 35-150-2264 Description Diffuser, Hayward Super Pump 2600/2600X Price Qty RecItem View recommended items
Key 17 Horizon # _SPX1611E5 Description Seal Plate, Hayward Super Pump VS, 2.5hp Only Price Qty RecItem
Key 17 Horizon # 35-150-2267 Description Seal Plate Kit, Hayward Super Pump 2600/2600X, 0.5-1.5hp Price Qty RecItem View recommended items
Key 17 Horizon # 35-150-2270 Description Seal Plate Kit, Hayward Super Pump, 2.0hp Price Qty RecItem View recommended items
Key 18 Horizon # 35-150-2056 Description Impeller,Hayward Super Pump, 2.0ohp/2.5thp Price Qty RecItem View recommended items
Key 18 Horizon # 35-150-2449 Description Impeller,Hayward Max-Flo/Super Pump, 1/3ohp/0.5thp Price Qty RecItem View recommended items
Key 18 Horizon # 35-150-2452 Description Impeller,Hayward Max-Flo/Super Pump, 0.5ohp/0.75thp Price Qty RecItem View recommended items
Key 18 Horizon # 35-150-2455 Description Impeller,Hayward Max-Flo/SuperPmp/PowerFloIII,0.75ohp/1.0thp Price Qty RecItem View recommended items
Key 18 Horizon # 35-150-2460 Description Impeller,Hayward Max-Flo/SuperPump/PowerFloIII,1.0ohp/1.5thp Price Qty RecItem View recommended items
Key 18 Horizon # 35-150-2463 Description Impeller,Hayward Max-Flo/Super Pump, 1.5ohp/2.0thp Price Qty RecItem View recommended items

1-Speed Motors

Key Horizon # Description Qty
Key 19a Horizon # 35-126-1415 Description Motor, Century,0.5hp,115v/230v,1-Spd,56Jfr,C-Face Thd Price Qty RecItem View recommended items
Key 19a Horizon # 35-126-1417 Description Motor, Century,0.75hp,115v/230v,1-Spd,56Jfr,C-Face Thd Price Qty RecItem View recommended items
Key 19a Horizon # 35-126-1419 Description Motor, Century,1.0hp,115v/230v,1-Spd,56Jfr,C-Face Thd Price Qty RecItem View recommended items
Key 19a Horizon # 35-126-1421 Description Motor, Century,1.5hp,115v/230v,1-Spd,56Jfr,C-Face Thd Price Qty RecItem View recommended items
Key 19a Horizon # 35-126-1423 Description Motor, Century,2.0hp,115v/230v,1-Spd,56Jfr,C-Face Thd Price Qty RecItem View recommended items
Key 19a Horizon # Discontinued Description Motor, Century,0.5hp,115v/230v,1-Spd,56Jfr,C-Face Thd Price Qty RecItem View recommended items
Key 19a Horizon # 35-126-3022 Description Motor, Century,0.75hp,115v/230v,1-Spd,56Jfr,C-Face Thd Price Qty RecItem View recommended items
Key 19a Horizon # 35-126-3024 Description Motor, Century,1.0hp,115v/230v,1-Spd,56Jfr,C-Face Thd Price Qty RecItem View recommended items
Key 19a Horizon # Discontinued Description Motor, Century,1.5hp,115v/208v-230v,1-Spd,56Jfr,C-FaceThd Price Qty RecItem View recommended items
Key 19a Horizon # 35-150-2062 Description Motor, Hayward Super Pump, 1.0 HP, C FLG, TEFC Price Qty RecItem
Key 19a Horizon # 35-150-3072 Description Motor, Hayward Super/Super II/MaxFlo, 2hp,115/230V,Max Rate Price Qty RecItem View recommended items
Key 19a Horizon # 35-150-3074 Description Motor, Hayward Super/Super II/MaxFlo,0.75hp,115/230V,MaxRate Price Qty RecItem View recommended items

2-Speed Motors

Key Horizon # Description Qty
Key 19b Horizon # Discontinued Description Motor, Century,0.5hp,115v,2-Spd,56Jfr,C-Face Thd Price Qty RecItem View recommended items
Key 19b Horizon # 35-126-1314 Description Motor, Century,0.75hp,115v,2-Spd,56Jfr,C-Face Thd Price Qty RecItem View recommended items
Key 19b Horizon # Discontinued Description Motor, Century,0.75hp,230v,2-Spd,56Jfr,C-Face Thd Price Qty RecItem View recommended items
Key 19b Horizon # 35-126-1318 Description Motor, Century,1.0hp,230v,2-Spd,56Jfr,C-Face Thd Price Qty RecItem View recommended items
Key 19b Horizon # 35-126-1320 Description Motor, Century,1.5hp,230v,2-Spd,56Jfr,C-Face Thd Price Qty RecItem View recommended items
Key 19b Horizon # 35-126-1322 Description Motor, Century,2.0hp,230v,2-Spd,56Jfr,C-Face Thd Price Qty RecItem View recommended items

Energy Efficient 1-Speed Motors

Key Horizon # Description Qty
Key 19c Horizon # Discontinued Description Motor, Century,0.5hp,115v/230v,1-Spd,56Jfr,C-Face Thd,EE Price Qty RecItem View recommended items
Key 19c Horizon # 35-126-1372 Description Motor, Century,0.75hp,115v/230v,1-Spd,56Jfr,C-Face Thd,EE Price Qty RecItem View recommended items
Key 19c Horizon # 35-126-1374 Description Motor,Century,1.0hp,115v/230v,1-Spd,56Jfr,C-Face Thd,EE Price Qty RecItem View recommended items
Key 19c Horizon # 35-126-1376 Description Motor, Century,1.5hp,115v/208-230v,1Spd,56Jfr,C-Face Thd,EE Price Qty RecItem View recommended items
Key 19c Horizon # 35-126-1378 Description Motor, Century,2.0hp,208v-230v,1-Spd,56Jfr,C-Face Thd,EE Price Qty RecItem View recommended items
Key 19c Horizon # 35-126-3028 Description Motor, Century,2.0hp,208v-230v,1-Spd,56Jfr,C-Face Thd Price Qty RecItem View recommended items

Variable Speed Motors

Key Horizon # Description Qty
Key 19d Horizon # Discontinued Description Motor, Century,0.75-2.7hp,230v,Var-Spd,48fr,C-Face Thd,V-Grn Price Qty RecItem View recommended items
Key 19d Horizon # Discontinued Description Motor, Century, 208v-230v, Var-Spd, 48fr, C-Face Thd, V-Grn Price Qty RecItem View recommended items

Complete Pump

Key Horizon # Description Qty
Key Horizon # 34-150-1014E Description Pump, Hayward Super Pump, 0.5hp, 115V, 1.5" Price Qty RecItem View recommended items
Key Horizon # 34-150-1016E Description Pump, Hayward, Super Pump, 3/4 Hp, 115/230v Price Qty RecItem View recommended items
Key Horizon # 34-150-1024E Description Pump, Hayward Super Pump, 1.5hp, 115/230v, 1.5" Price Qty RecItem View recommended items
Key Horizon # 34-150-1584 Description Pump, Hayward,1HP Super Pump,115V/230V,1Spd, Expert Line Price Qty RecItem View recommended items
Key Horizon # _SP2605X7 Description 3/4 Hp Super Pump Price Qty RecItem
Key Horizon # _SP2600X5 Description Pump, Hayward Super Pump, 0.5hp, 115V, Expert Line Price Qty RecItem
Key Horizon # 34-150-1584E Description Pump, Hayward Super Pump, 1.0hp, 115V/230V, 1-Spd, Open Line Price Qty RecItem View recommended items

Not Pictured

Key Horizon # Description Qty
Key Horizon # Discontinued Description Pump Rebuild Kit, Hayward 1600/2600/2600X, with Viton Seal Price Qty RecItem View recommended items
Key Horizon # _SPXHKIT3 Description Kit-Quick Fix, Super Pump Price Qty RecItem View recommended items
Key Horizon # 90-423-3011 Description Go-Kit 3, Super Pump, 1600, 2600, 2600X Series Price Qty RecItem View recommended items
Key Horizon # 90-538-2003 Description Pump O-Ring Kit, Generic, Super Pump, w/Seal Price Qty RecItem View recommended items
Key Horizon # 90-538-3003 Description Pump O-Ring Kit, Generic, Super Pump Price Qty RecItem View recommended items
