Hayward Northstar SP4000/X Pump, w/Quad Lock Unions, pre-08

Product Description  ·  Parts  ·  Full-Rated - 1-Speed Motors  ·  Full-Rated - 2-Speed Motors  ·  Full-Rated - Energy Efficient 1-Speed Motors  ·  Full-Rated - Variable Speed Motors  ·  Max-Rated - 1-Speed Motors  ·  Max-Rated - 2-Speed Motors  ·  Max-Rated - Energy Efficient 1-Speed Motors  ·  Max-Rated - Variable Speed Motors  ·  Not Pictured
Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to view Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View

Product Description

For updated version of Hayward Northstar SP4000/SP4000X, see 34-150-W015 - Hayward Northstar SP4000/SP4000X Pump Series, w/Male Hayward Buttress Thread Unions 2008+.

Please note the following changes between the pre-2008 and post-2008 models of the Northstar SP4000 and SP4000X:

The Trap Body changed from having Quad Lock ports to having Hayward Male Buttress Thread Ports.

The Trap Lid Kits, Trap Body, Union, and Union O-Rings have all been updated to match the new style of the Trap Body.



Parts

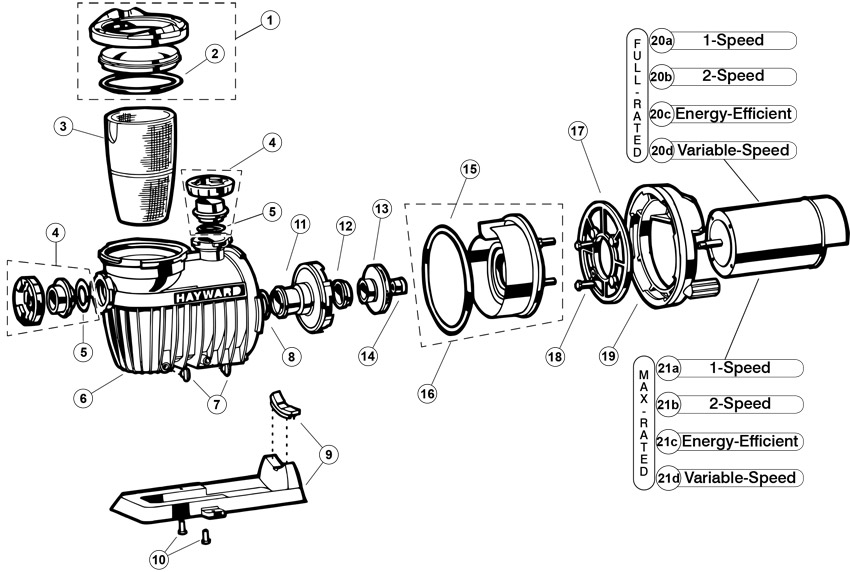

Key Horizon # Description Qty
Key 1 Horizon # Discontinued Description Strainer Cover Kit, Hayward Northstar SP4000/SP4000X, pre-03 Price Qty RecItem
Key 1 Horizon # 35-150-3210 Description Trap Lid, Hayward Northstar Trap with Quad Lock Unions Price Qty RecItem View recommended items
Key 1 Horizon # 35-150-3274 Description Trap Lid, Hayward Northstar Trap with Quad Lock Unions Price Qty RecItem View recommended items
Key 1 Horizon # Discontinued Description Trap Lid, Hayward Northstar, Biguanide, Pre 2008 Price Qty RecItem View recommended items
Key 2 Horizon # 35-150-3212 Description O-Ring, Hayward Northstar/Easy Clear, Trap/Filter Lid, O-465 Price Qty RecItem View recommended items
Key 2 Horizon # 35-150-3270 Description T-Ring, Hayward Northstar SP4000/4000X, Trap Body, pre-2008 Price Qty RecItem View recommended items
Key 2 Horizon # 90-423-5368 Description O-Ring, 7-3/4" ID, 3/16" Cross Section, Generic Price Qty RecItem View recommended items
Key 3 Horizon # 35-150-3214 Description Basket, Pump, OEM Hayward Northstar SP4000 SP4000X Price Qty RecItem View recommended items
Key 4 Horizon # Discontinued Description Union Kit, Hayward SP4000, 2", Quad Lock, Black Price Qty RecItem View recommended items
Key 5 Horizon # 35-150-3526 Description O-Ring, Hayward Northstar pre-2008/Tristar, Diffuser, O-83 Price Qty RecItem View recommended items
Key 5 Horizon # 90-423-5332 Description O-Ring, 2-3/8" ID, 3/16" Cross Section, Generic Price Qty RecItem View recommended items
Key 6 Horizon # Discontinued Description Trap/Pump Body, Hayward Northstar,2" Quad Lock Ports,pre-08 Price Qty RecItem View recommended items
Key 7 Horizon # 35-150-3216 Description Drain Plug, Hayward Northstar/Booster/Tristar, with O-Ring Price Qty RecItem View recommended items
Key 8 Horizon # 90-423-5335 Description O-Ring, 2-3/4" ID, 3/16" Cross Section, Generic Price Qty RecItem View recommended items
Key 9 Horizon # 35-150-3218 Description Pump Stand, Hayward Northstar SP4000/SP4000X Price Qty RecItem View recommended items
Key 10 Horizon # 35-150-2018 Description Screw, Hayward Max-Flo/Super Pump/Northstar,Pump Stand,qty 2 Price Qty RecItem View recommended items
Key 11 Horizon # Discontinued Description Diffuser, Hayward Northstar SP4000/X Price Qty RecItem View recommended items
Key 12 Horizon # Discontinued Description Impeller Wear Ring, Hayward Northstar, 0.75hp - 3.0hp Price Qty RecItem View recommended items
Key 13 Horizon # Discontinued Description Impeller,Hywrd Northstar SP4000/X,0.75hp Full/1.0hp Max,Old Price Qty RecItem View recommended items
Key 13 Horizon # Discontinued Description Implr,Hywrd Northstar SP4000/X,0.75hp Full/1.0hp Max,w/Seals Price Qty RecItem View recommended items
Key 13 Horizon # Discontinued Description Impeller,Hayward Northstar SP4000/X,1.0hp Full/1.5hp Max,Old Price Qty RecItem View recommended items
Key 13 Horizon # Discontinued Description Impeller,Hayward Northstar SP4000/X,1.0ohp/1.5thp,w/Seal Price Qty RecItem View recommended items
Key 13 Horizon # Discontinued Description Implr,Hyward Northstar SP4000/X,1.5hp Full/2.0hp Max,w/Seals Price Qty RecItem View recommended items
Key 13 Horizon # Discontinued Description Impeller,Hayward Northstar SP4000/X,1.5ohp/2.0thp,w/Seal Price Qty RecItem View recommended items
Key 13 Horizon # Discontinued Description Implr,Hayward Northstar SP4000/X,2.0/hp Full/2.5hp Max,Old Price Qty RecItem View recommended items
Key 13 Horizon # Discontinued Description Impeller,Hayward Northstar SP4000X,2.0ohp/2.5thp, w/Seal Price Qty RecItem
Key 13 Horizon # Discontinued Description Impeller, Hayward Northstar SP4000, 3.0hp Full Price Qty RecItem View recommended items
Key 14 Horizon # 35-150-1404 Description Shaft Seal, Hayward Super II Pump/Super Pump/Max Flo Price Qty RecItem View recommended items
Key 15 Horizon # Discontinued Description O-Ring, Hayward Northstar, Seal Plate Price Qty RecItem View recommended items
Key 15 Horizon # 90-423-6142 Description O-Ring, 9-3/8" ID, 1/4" Cross Section, Generic Price Qty RecItem View recommended items
Key 16 Horizon # Discontinued Description Seal Kit, Hayward Northstar Price Qty RecItem
Key 17 Horizon # Discontinued Description Motor Mount, Hayward Northstar SP4000/SP4000X/SP4000 HP Price Qty RecItem View recommended items
Key 18 Horizon # 35-150-2039 Description Bolt, Hayward Max-Flo/Super Pump, Motor Mount, Quantity 4 Price Qty RecItem View recommended items
Key 19 Horizon # Discontinued Description Lock Ring, Hayward Northstar, Motor Mount Price Qty RecItem View recommended items

Full-Rated - 1-Speed Motors

Key Horizon # Description Qty
Key 20a Horizon # 35-126-1417 Description Motor, Century,0.75hp,115v/230v,1-Spd,56Jfr,C-Face Thd Price Qty RecItem View recommended items
Key 20a Horizon # 35-126-1419 Description Motor, Century,1.0hp,115v/230v,1-Spd,56Jfr,C-Face Thd Price Qty RecItem View recommended items
Key 20a Horizon # 35-126-1421 Description Motor, Century,1.5hp,115v/230v,1-Spd,56Jfr,C-Face Thd Price Qty RecItem View recommended items
Key 20a Horizon # 35-126-1423 Description Motor, Century,2.0hp,115v/230v,1-Spd,56Jfr,C-Face Thd Price Qty RecItem View recommended items
Key 20a Horizon # 35-126-1425 Description Motor, Century,3.0hp,230v,1-Spd,56Jfr,C-Face Thd Price Qty RecItem View recommended items
Key 20a Horizon # 35-126-3022 Description Motor, Century,0.75hp,115v/230v,1-Spd,56Jfr,C-Face Thd Price Qty RecItem View recommended items
Key 20a Horizon # 35-126-3024 Description Motor, Century,1.0hp,115v/230v,1-Spd,56Jfr,C-Face Thd Price Qty RecItem View recommended items
Key 20a Horizon # Discontinued Description Motor, Century,1.5hp,115v/208v-230v,1-Spd,56Jfr,C-FaceThd Price Qty RecItem View recommended items
Key 20a Horizon # 35-126-3028 Description Motor, Century,2.0hp,208v-230v,1-Spd,56Jfr,C-Face Thd Price Qty RecItem View recommended items

Full-Rated - 2-Speed Motors

Key Horizon # Description Qty
Key 20b Horizon # 35-126-1314 Description Motor, Century,0.75hp,115v,2-Spd,56Jfr,C-Face Thd Price Qty RecItem View recommended items
Key 20b Horizon # Discontinued Description Motor, Century,0.75hp,230v,2-Spd,56Jfr,C-Face Thd Price Qty RecItem View recommended items
Key 20b Horizon # 35-126-1318 Description Motor, Century,1.0hp,230v,2-Spd,56Jfr,C-Face Thd Price Qty RecItem View recommended items
Key 20b Horizon # 35-126-1320 Description Motor, Century,1.5hp,230v,2-Spd,56Jfr,C-Face Thd Price Qty RecItem View recommended items
Key 20b Horizon # 35-126-1322 Description Motor, Century,2.0hp,230v,2-Spd,56Jfr,C-Face Thd Price Qty RecItem View recommended items
Key 20b Horizon # 35-126-1324 Description Motor, Century,3.0hp,230v,2-Spd, 56Jfr,C-Face Thd Price Qty RecItem View recommended items

Full-Rated - Energy Efficient 1-Speed Motors

Key Horizon # Description Qty
Key 20c Horizon # 35-126-1372 Description Motor, Century,0.75hp,115v/230v,1-Spd,56Jfr,C-Face Thd,EE Price Qty RecItem View recommended items
Key 20c Horizon # 35-126-1374 Description Motor,Century,1.0hp,115v/230v,1-Spd,56Jfr,C-Face Thd,EE Price Qty RecItem View recommended items
Key 20c Horizon # 35-126-1376 Description Motor, Century,1.5hp,115v/208-230v,1Spd,56Jfr,C-Face Thd,EE Price Qty RecItem View recommended items
Key 20c Horizon # 35-126-1378 Description Motor, Century,2.0hp,208v-230v,1-Spd,56Jfr,C-Face Thd,EE Price Qty RecItem View recommended items
Key 20c Horizon # 35-126-1380 Description Motor,Century,3.0hp,208v-230v,1-Spd,56Jfr,C-Face Thd,EE Price Qty RecItem View recommended items
Key 20c Horizon # 35-126-3032 Description Motor, Century,3.0hp,208v-230v,1-Spd,56Jfr,C-Face Thd,EE Price Qty RecItem View recommended items

Full-Rated - Variable Speed Motors

Key Horizon # Description Qty
Key 20d Horizon # Discontinued Description Motor, Century,0.75-2.7hp,230v,Var-Spd,48fr,C-Face Thd,V-Grn Price Qty RecItem View recommended items
Key 20d Horizon # Discontinued Description Motor, Century, 208v-230v, Var-Spd, 48fr, C-Face Thd, V-Grn Price Qty RecItem View recommended items

Max-Rated - 1-Speed Motors

Key Horizon # Description Qty
Key 21a Horizon # 35-126-1417 Description Motor, Century,0.75hp,115v/230v,1-Spd,56Jfr,C-Face Thd Price Qty RecItem View recommended items
Key 21a Horizon # 35-126-1419 Description Motor, Century,1.0hp,115v/230v,1-Spd,56Jfr,C-Face Thd Price Qty RecItem View recommended items
Key 21a Horizon # 35-126-1421 Description Motor, Century,1.5hp,115v/230v,1-Spd,56Jfr,C-Face Thd Price Qty RecItem View recommended items
Key 21a Horizon # 35-126-1423 Description Motor, Century,2.0hp,115v/230v,1-Spd,56Jfr,C-Face Thd Price Qty RecItem View recommended items
Key 21a Horizon # 35-126-3022 Description Motor, Century,0.75hp,115v/230v,1-Spd,56Jfr,C-Face Thd Price Qty RecItem View recommended items
Key 21a Horizon # 35-126-3024 Description Motor, Century,1.0hp,115v/230v,1-Spd,56Jfr,C-Face Thd Price Qty RecItem View recommended items
Key 21a Horizon # Discontinued Description Motor, Century,1.5hp,115v/208v-230v,1-Spd,56Jfr,C-FaceThd Price Qty RecItem View recommended items
Key 21a Horizon # 35-126-3028 Description Motor, Century,2.0hp,208v-230v,1-Spd,56Jfr,C-Face Thd Price Qty RecItem View recommended items

Max-Rated - 2-Speed Motors

Key Horizon # Description Qty
Key 21b Horizon # 35-126-1314 Description Motor, Century,0.75hp,115v,2-Spd,56Jfr,C-Face Thd Price Qty RecItem View recommended items
Key 21b Horizon # Discontinued Description Motor, Century,0.75hp,230v,2-Spd,56Jfr,C-Face Thd Price Qty RecItem View recommended items
Key 21b Horizon # 35-126-1318 Description Motor, Century,1.0hp,230v,2-Spd,56Jfr,C-Face Thd Price Qty RecItem View recommended items
Key 21b Horizon # 35-126-1320 Description Motor, Century,1.5hp,230v,2-Spd,56Jfr,C-Face Thd Price Qty RecItem View recommended items
Key 21b Horizon # 35-126-1322 Description Motor, Century,2.0hp,230v,2-Spd,56Jfr,C-Face Thd Price Qty RecItem View recommended items

Max-Rated - Energy Efficient 1-Speed Motors

Key Horizon # Description Qty
Key 21c Horizon # 35-126-1372 Description Motor, Century,0.75hp,115v/230v,1-Spd,56Jfr,C-Face Thd,EE Price Qty RecItem View recommended items
Key 21c Horizon # 35-126-1374 Description Motor,Century,1.0hp,115v/230v,1-Spd,56Jfr,C-Face Thd,EE Price Qty RecItem View recommended items
Key 21c Horizon # 35-126-1376 Description Motor, Century,1.5hp,115v/208-230v,1Spd,56Jfr,C-Face Thd,EE Price Qty RecItem View recommended items
Key 21c Horizon # 35-126-1378 Description Motor, Century,2.0hp,208v-230v,1-Spd,56Jfr,C-Face Thd,EE Price Qty RecItem View recommended items

Max-Rated - Variable Speed Motors

Key Horizon # Description Qty
Key 21d Horizon # Discontinued Description Motor, Century,0.75-2.7hp,230v,Var-Spd,48fr,C-Face Thd,V-Grn Price Qty RecItem View recommended items
Key 21d Horizon # Discontinued Description Motor, Century, 208v-230v, Var-Spd, 48fr, C-Face Thd, V-Grn Price Qty RecItem View recommended items

Not Pictured

Key Horizon # Description Qty
Key Horizon # Discontinued Description Seal Kit, Hayward Northstar Price Qty RecItem
Key Horizon # Discontinued Description Pump Rebuild Kit 66, Hayward Northstar 4000 Pump Price Qty RecItem View recommended items
