Home  >  Exploded Diagrams  >  Exploded Diagrams  >  Pumps  >  34-142-W005

Acura Spa Aquaheat Pump - 1-1/2" suction / 1-1/2" Discharge

Product Description  ·  Parts  ·  2-Spd Pump and Motor Complete 1-1/2 suction/1-1/2' discharge"
Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View

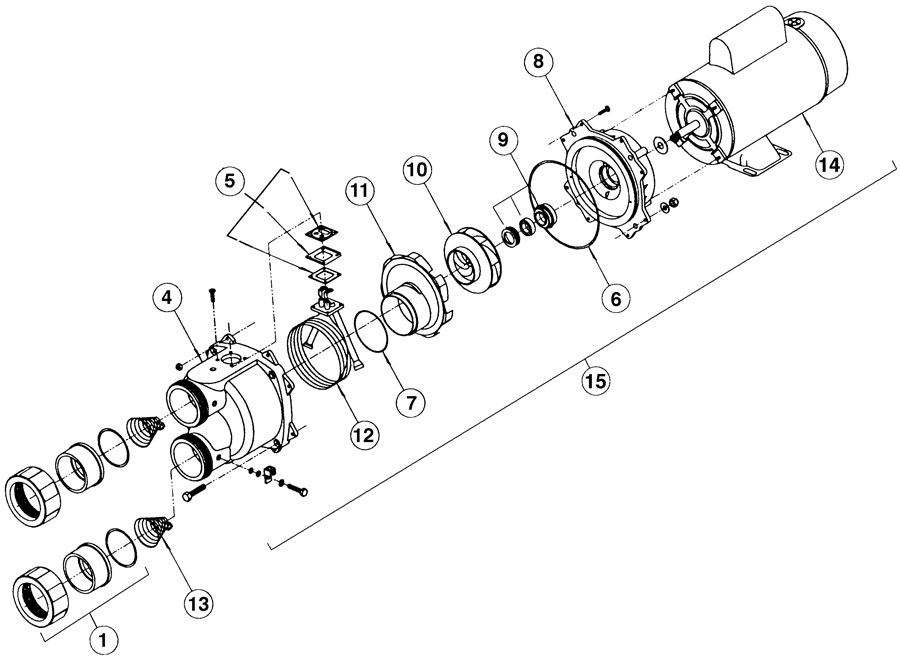

Parts

Key Horizon # Description Qty
Key 1 Horizon # 89-402-1100 Description Pump Union, AquaFlo, 1-1/2"fbt x 1-1/2"s, qty 2 Price Qty RecItem View recommended items
Key 4 Horizon # Discontinued Description Volute, Acura Spa Aquaheat Plus, 1-1/2" Price Qty RecItem View recommended items
Key 5 Horizon # 47-555-2082 Description Gasket Kit, Acura Aquaheat 1-1/2"/Aquaheat Plus 2", Element Price Qty RecItem View recommended items
Key 6 Horizon # 90-423-5256 Description O-Ring, 5-3/4" ID, 1/8" Cross Section, Generic,O-108 Price Qty RecItem View recommended items
Key 7 Horizon # 90-423-5149 Description O-Ring, Buna-N, 2-13/16" ID, 3/32" CrossSection, Generic Price Qty RecItem View recommended items
Key 8 Horizon # Discontinued Description Seal Plate, Acura Spa Aquaheat/Aquaheat Plus Price Qty RecItem View recommended items
Key 9 Horizon # 35-423-1048 Description Shaft Seal, PS-3865, 5/8" Shaft, Viton PS-1000 Price Qty RecItem View recommended items
Key 9 Horizon # 35-423-1060 Description Shaft Seal, 1000, 5/8" Shaft, Buna Price Qty RecItem View recommended items
Key 9 Horizon # 35-423-1061 Description Shaft Seal, PS-1905, 5/8" Shaft, Silicon Carbide PS-1000 Price Qty RecItem View recommended items
Key 9 Horizon # 35-423-1096 Description Shaft Seal, PS-961, 5/8" Shaft, Buna, Carbon Face Price Qty RecItem View recommended items
Key 9 Horizon # 35-426-1060US Description Shaft Seal, 1000, 5/8" Shaft, Buna, US Seal Price Qty RecItem View recommended items
Key 10 Horizon # 35-142-1004 Description Impeller, Acura Spa Aquaheat, 0.75 Horsepower Price Qty RecItem View recommended items
Key 10 Horizon # Discontinued Description Impeller, Acura Spa Aquaheat/Maverick, 1.0 Horsepower Price Qty RecItem View recommended items
Key 10 Horizon # Discontinued Description Impeller, Acura Spa Aquaheat/Maverick, 1.5 Horsepower Price Qty RecItem View recommended items
Key 10 Horizon # Discontinued Description Impeller, Acura Spa Aquaheat/Maverick, 2.0 Horsepower Price Qty RecItem View recommended items
Key 11 Horizon # Discontinued Description Diffuser, Acura Spa Aquaheat, 1-1/2", 0.75-2hp Price Qty RecItem View recommended items
Key 12 Horizon # Discontinued Description Flange Element, 1-1/2" x 1-1/2", 5.5kW,Acura Aquaheat,T-Well Price Qty RecItem View recommended items
Key 13 Horizon # Discontinued Description Current Collector, Acura Spa Aquaheat Price Qty RecItem View recommended items
Key 14 Horizon # 35-126-1120 Description Motor, Century, 2.0 Horsepower, 230v, 2 Speed, 48 Frame Price Qty RecItem View recommended items
Key 14 Horizon # Discontinued Description Motor, Century/WW, 2.0hp, 230v, 2-Speed, 48 Frame Price Qty RecItem View recommended items
Key 14 Horizon # 35-184-1072 Description Motor, US Motor, 1.5 Horsepower, ThruBolt, 2-Speed, 115v,48Y Price Qty RecItem View recommended items
Key 14 Horizon # 35-184-1074 Description Motor, US Motor,1.5 Horsepower, ThruBolt,2-Speed, 115v, 48Y Price Qty RecItem View recommended items
Key Horizon # Discontinued Description Screw Kit, Acura Aquaheat, Quantity 4 Price Qty RecItem View recommended items

2-Spd Pump and Motor Complete 1-1/2 suction/1-1/2' discharge"

Key Horizon # Description Qty
Key 15 Horizon # Discontinued Description Pump, Acura Aquaheat, 1.5hp, 115v, 2-Spd, 48fr, 1-1/2", OEM Price Qty RecItem View recommended items
Key 15 Horizon # Discontinued Description Pump, Acura Aquaheat, 2.0hp, 230v, 2-Spd, 48fr, 1-1/2", OEM Price Qty RecItem View recommended items
