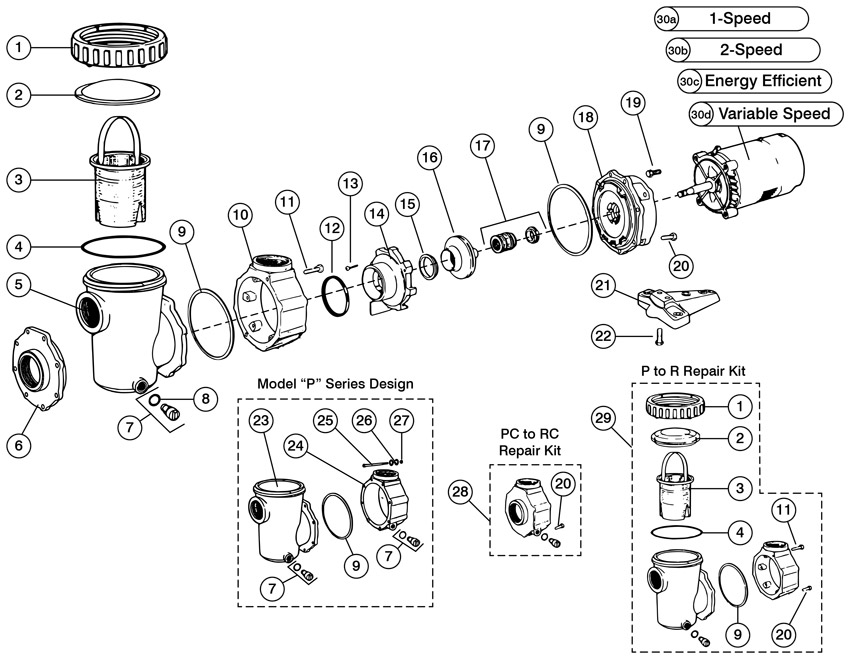

Jacuzzi Ring-Lok R, P, PC, UP Model Pumps

Product Description  ·  Parts  ·  1-Speed Motors  ·  2-Speed Motors  ·  Energy Efficient 1-Speed Motors  ·  Variable Speed Motors
Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View

Parts

Key Horizon # Description Qty
Key 1 Horizon # 17-105-1025 Description Lock Ring, Carvin CFR/C foot 25 Price Qty RecItem View recommended items
Key 2 Horizon # 35-105-1005 Description Trap Lid, Carvin Magnum, R, P Price Qty RecItem View recommended items
Key 3 Horizon # Discontinued Description Basket, Pump, OEM Jacuzzi/Carvin R P PC UP Ring-Lok Models Price Qty RecItem View recommended items
Key 4 Horizon # 90-423-5358 Description O-Ring, 5-5/8" ID, 3/16" Cross Section, Generic Price Qty RecItem View recommended items
Key 5 Horizon # 35-105-1347 Description Trap Body, Carvin R, with Plugs, 1-1/2" Price Qty RecItem View recommended items
Key 5 Horizon # 35-105-1348 Description Trap Body, Carvin R, with Plugs, 2" Price Qty RecItem View recommended items
Key 6 Horizon # Discontinued Description Flange, Jacuzzi P/PC/EP, 2" Price Qty RecItem
Key 6 Horizon # Discontinued Description Flange, Jacuzzi P/PC/EP, 1-1/2" Price Qty RecItem
Key 7 Horizon # Discontinued Description Drain Plug, Jacuzzi, with O-Ring Price Qty RecItem View recommended items
Key 7 Horizon # 17-105-1002 Description Drain Plug, Carvin, with O-Ring, Quantity 2 Price Qty RecItem View recommended items
Key 8 Horizon # 90-423-7112 Description O-Ring, 1/2" ID, 3/32" Cross Section, Generic Price Qty RecItem View recommended items
Key 9 Horizon # Discontinued Description Square Ring, Jacuzzi RC, Volute, O-264 Price Qty RecItem View recommended items
Key 9 Horizon # 90-423-6134 Description Square Ring, Buna-N, 6-9/16" Inner Diameter, 6-13/16" Outer Price Qty RecItem View recommended items
Key 10 Horizon # 35-105-1340 Description Volute, Carvin RC, 1-1/2" Price Qty RecItem View recommended items
Key 10 Horizon # Discontinued Description Volute, Jacuzzi RC, 2" Price Qty RecItem View recommended items
Key 11 Horizon # 35-105-1350 Description Bolt, Carvin RC, Volute, 1/4-20 x 1-1/4", Quantity 6 Price Qty RecItem View recommended items
Key 12 Horizon # 35-105-1355 Description Square Ring, Jacuzzi PH/UPH/P/PC/EP, Diffuser Price Qty RecItem View recommended items
Key 12 Horizon # 90-423-2316 Description Square Ring, Diffuser, Jacuzzi ERC/PH/RC, G-316, Generic Price Qty RecItem View recommended items
Key 13 Horizon # 35-105-1360 Description Bolt, Carvin, Diffuser, 8-16 x 1-1/4", Quantity 2 Price Qty RecItem View recommended items
Key 14 Horizon # 35-105-1065 Description Diffuser, Carvin Magnum, R, P, 0.75thp All Date Codes Price Qty RecItem View recommended items
Key 14 Horizon # 35-105-1175 Description Diffuser, Carvin/Calvin EP series, 1.5hp Price Qty RecItem View recommended items
Key 14 Horizon # 35-105-1180 Description Diffuser, Carvin Magnum High Flow, 3.0hp Price Qty RecItem View recommended items
Key 15 Horizon # 35-105-1080 Description Wear Ring, Carvin, Various Pumps, 0.5thp-3.0thp, All Dates Price Qty RecItem View recommended items
Key 15 Horizon # 35-105-1081 Description Wear Ring,Carvin,Ring-Lok/RC Models,High Flow,1.5hp/2.0hp Price Qty RecItem View recommended items
Key 15 Horizon # 35-105-1200 Description Wear Ring, Carvin, Various Pumps, 4.0thp-5.0thp, All Dates Price Qty RecItem View recommended items
Key 16 Horizon # 35-105-1085 Description Impeller,Carvin Magnum, 0.5ohp/0.75thp, All Date Codes Price Qty RecItem View recommended items
Key 16 Horizon # 35-105-1205 Description Impeller, Carvin Magnum HF, P, R, 0.75 Horsepower Price Qty RecItem View recommended items
Key 16 Horizon # 35-105-1210 Description Impeller Kit, Carvin Magnum HF, P, R, 1.0hp Price Qty RecItem View recommended items
Key 16 Horizon # 35-105-1212 Description Impeller, Carvin Magnum HF, P, R, 1.0hp Price Qty RecItem View recommended items
Key 16 Horizon # 35-105-1215 Description Impeller, Carvin Magnum HF, P, R, 1.5 Horsepower Price Qty RecItem View recommended items
Key 16 Horizon # 35-105-1220 Description Impeller, Carvin Magnum HF, P, R, 2.0 Horsepower, Pre 1990 Price Qty RecItem View recommended items
Key 16 Horizon # 35-105-1225 Description Impeller, Carvin Magnum High Flow, P, R, 3.0 Horsepower Price Qty RecItem View recommended items
Key 16 Horizon # 35-105-1227 Description Impeller, Carvin Magnum HF, P, R, 0.5 Horsepower Price Qty RecItem View recommended items
Key 17 Horizon # 35-105-1357 Description Shaft Seal, Carvin P/PC/EP, 3/4" Price Qty RecItem View recommended items
Key 18 Horizon # Discontinued Description Seal Plate, Jacuzzi P, PH, R, RC, 0.5-1.0hp Price Qty RecItem View recommended items
Key 18 Horizon # 35-105-1370 Description Seal Plate, Carvin P, PH, R, RC, 1.5-2.0hp Price Qty RecItem View recommended items
Key 18 Horizon # Discontinued Description Seal Plate, Jacuzzi P, R, RC, 1.5-2.0hp Price Qty RecItem View recommended items
Key 19 Horizon # Discontinued Description Bolt, Carvin, 3/8-16 x 3/4" Price Qty RecItem View recommended items
Key 19 Horizon # 35-105-1140 Description Bolt, Carvin Magnum, 3/8-16 x 7/8", Quantity 4 Price Qty RecItem View recommended items
Key 20 Horizon # Discontinued Description Bolt, Jacuzzi K, 1/4-20 x 7/8" Price Qty RecItem View recommended items
Key 21 Horizon # Discontinued Description Pump Stand, Jacuzzi RC Price Qty RecItem
Key 22 Horizon # Discontinued Description Hardware Kit, Carvin RC, Pump Stand Price Qty RecItem
Key 23 Horizon # Discontinued Description Trap/Pump Body, Jacuzzi P, 1-1/2", with Drain Plug Price Qty RecItem
Key 23 Horizon # Discontinued Description Trap/Pump Body, Jacuzzi P, 2", with Drain Plug Price Qty RecItem
Key 24 Horizon # Discontinued Description Case, Jacuzzi PH/UPH, 1-1/2", with Drain Plug Price Qty RecItem
Key 24 Horizon # Discontinued Description Case, Jacuzzi PH/UPH, 2", with Drain Plug Price Qty RecItem
Key 25 Horizon # Discontinued Description Bolt, Jacuzzi P, R, PH, Volute, 1/4-20 x 4-1/4", Quantity 8 Price Qty RecItem
Key 26 Horizon # Discontinued Description Washer, Carvin P, R, PH, Volute,1/4" x 5/8" x 3/32",qty 16 Price Qty RecItem View recommended items
Key 27 Horizon # 35-105-1353 Description Nut, Jacuzzi P, R, PH, Volute, 1/4-20 Price Qty RecItem
Key 28 Horizon # Discontinued Description Repair Kit, Carvin PC to Carvin RC, 1-1/2" Price Qty RecItem View recommended items
Key 28 Horizon # Discontinued Description Repair Kit, Jacuzzi PC to Jacuzzi RC, 2" Price Qty RecItem
Key 29 Horizon # Discontinued Description Repair Kit, Jacuzzi P to Jacuzzi R, 1-1/2" Price Qty RecItem
Key 29 Horizon # Discontinued Description Repair Kit, Jacuzzi P to Jacuzzi R, 2" Price Qty RecItem

1-Speed Motors

Key Horizon # Description Qty
Key 30a Horizon # 35-126-1415 Description Motor, Century,0.5hp,115v/230v,1-Spd,56Jfr,C-Face Thd Price Qty RecItem View recommended items
Key 30a Horizon # 35-126-1417 Description Motor, Century,0.75hp,115v/230v,1-Spd,56Jfr,C-Face Thd Price Qty RecItem View recommended items
Key 30a Horizon # 35-126-1419 Description Motor, Century,1.0hp,115v/230v,1-Spd,56Jfr,C-Face Thd Price Qty RecItem View recommended items
Key 30a Horizon # 35-126-1421 Description Motor, Century,1.5hp,115v/230v,1-Spd,56Jfr,C-Face Thd Price Qty RecItem View recommended items
Key 30a Horizon # 35-126-1423 Description Motor, Century,2.0hp,115v/230v,1-Spd,56Jfr,C-Face Thd Price Qty RecItem View recommended items
Key 30a Horizon # 35-126-1425 Description Motor, Century,3.0hp,230v,1-Spd,56Jfr,C-Face Thd Price Qty RecItem View recommended items
Key 30a Horizon # Discontinued Description Motor, Century,0.5hp,115v/230v,1-Spd,56Jfr,C-Face Thd Price Qty RecItem View recommended items
Key 30a Horizon # 35-126-3022 Description Motor, Century,0.75hp,115v/230v,1-Spd,56Jfr,C-Face Thd Price Qty RecItem View recommended items
Key 30a Horizon # 35-126-3024 Description Motor, Century,1.0hp,115v/230v,1-Spd,56Jfr,C-Face Thd Price Qty RecItem View recommended items
Key 30a Horizon # Discontinued Description Motor, Century,1.5hp,115v/208v-230v,1-Spd,56Jfr,C-FaceThd Price Qty RecItem View recommended items
Key 30a Horizon # 35-126-3028 Description Motor, Century,2.0hp,208v-230v,1-Spd,56Jfr,C-Face Thd Price Qty RecItem View recommended items

2-Speed Motors

Key Horizon # Description Qty
Key 30b Horizon # Discontinued Description Motor, Century,0.5hp,115v,2-Spd,56Jfr,C-Face Thd Price Qty RecItem View recommended items
Key 30b Horizon # 35-126-1314 Description Motor, Century,0.75hp,115v,2-Spd,56Jfr,C-Face Thd Price Qty RecItem View recommended items
Key 30b Horizon # Discontinued Description Motor, Century,0.75hp,230v,2-Spd,56Jfr,C-Face Thd Price Qty RecItem View recommended items
Key 30b Horizon # 35-126-1318 Description Motor, Century,1.0hp,230v,2-Spd,56Jfr,C-Face Thd Price Qty RecItem View recommended items
Key 30b Horizon # 35-126-1320 Description Motor, Century,1.5hp,230v,2-Spd,56Jfr,C-Face Thd Price Qty RecItem View recommended items
Key 30b Horizon # 35-126-1322 Description Motor, Century,2.0hp,230v,2-Spd,56Jfr,C-Face Thd Price Qty RecItem View recommended items
Key 30b Horizon # 35-126-1324 Description Motor, Century,3.0hp,230v,2-Spd, 56Jfr,C-Face Thd Price Qty RecItem View recommended items

Energy Efficient 1-Speed Motors

Key Horizon # Description Qty
Key 30c Horizon # Discontinued Description Motor, Century,0.5hp,115v/230v,1-Spd,56Jfr,C-Face Thd,EE Price Qty RecItem View recommended items
Key 30c Horizon # 35-126-1372 Description Motor, Century,0.75hp,115v/230v,1-Spd,56Jfr,C-Face Thd,EE Price Qty RecItem View recommended items
Key 30c Horizon # 35-126-1374 Description Motor,Century,1.0hp,115v/230v,1-Spd,56Jfr,C-Face Thd,EE Price Qty RecItem View recommended items
Key 30c Horizon # 35-126-1376 Description Motor, Century,1.5hp,115v/208-230v,1Spd,56Jfr,C-Face Thd,EE Price Qty RecItem View recommended items
Key 30c Horizon # 35-126-1378 Description Motor, Century,2.0hp,208v-230v,1-Spd,56Jfr,C-Face Thd,EE Price Qty RecItem View recommended items
Key 30c Horizon # 35-126-1380 Description Motor,Century,3.0hp,208v-230v,1-Spd,56Jfr,C-Face Thd,EE Price Qty RecItem View recommended items
Key 30c Horizon # 35-126-3032 Description Motor, Century,3.0hp,208v-230v,1-Spd,56Jfr,C-Face Thd,EE Price Qty RecItem View recommended items

Variable Speed Motors

Key Horizon # Description Qty
Key 30d Horizon # Discontinued Description Motor, Century,0.75-2.7hp,230v,Var-Spd,48fr,C-Face Thd,V-Grn Price Qty RecItem View recommended items
Key 30d Horizon # Discontinued Description Motor, Century, 208v-230v, Var-Spd, 48fr, C-Face Thd, V-Grn Price Qty RecItem View recommended items
