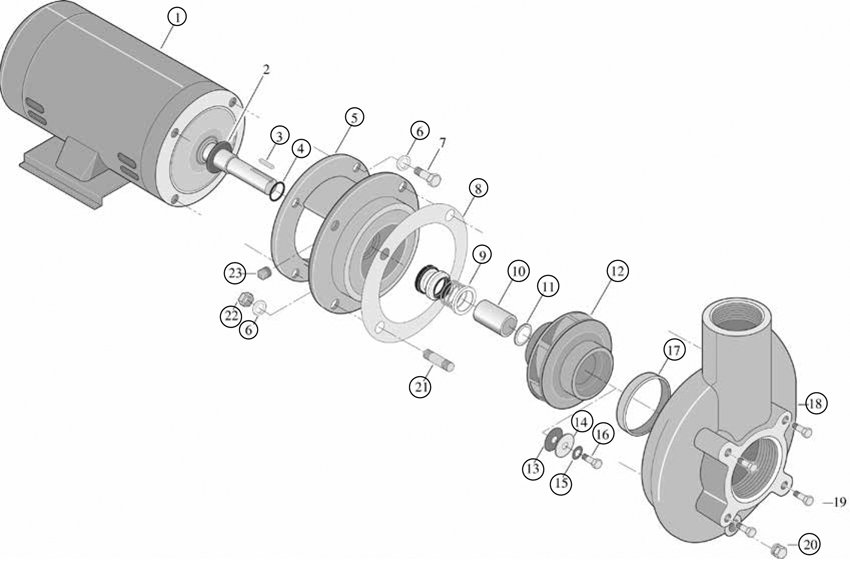

Pentair C/CC Series Centrifugal Pump Rpl Parts

Product Description  ·  Parts
Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View

Parts

Key Horizon # Description Qty
Key 1 Horizon # 35-102-2034 Description Motor, Pentair C/CC/D Series, 3.0hp, 200v, 1-Phase Price Qty RecItem View recommended items
Key 1 Horizon # 35-102-2056 Description Motor, Pentair C/CC/D Series, 5.0hp, 230v, 1-Spd,184JM Frame Price Qty RecItem View recommended items
Key 3 Horizon # _U65-42A Description Key 1-1/2" Lg Price Qty RecItem
Key 4 Horizon # 90-423-7021 Description O-Ring, Buna-N, 15/16" ID, 1/16"Cross Section,Generic Price Qty RecItem View recommended items
Key 5 Horizon # _C2-81 Description Adptr Price Qty RecItem
Key 5 Horizon # _C2-81D Description Adptr Price Qty RecItem
Key 6 Horizon # Discontinued Description 3/8" Med Wshr Use Price Qty RecItem
Key 8 Horizon # Discontinued Description Gasket Price Qty RecItem
Key 8 Horizon # Discontinued Description Gasket, Sta-Rite CC/C Series, Adapter, Generic Price Qty RecItem View recommended items
Key 9 Horizon # 35-102-2110 Description Shaft Seal, Pentair, C/CC/D Series, Buna Price Qty RecItem
Key 10 Horizon # _C23-58 Description Shaft Slv D Ser Price Qty RecItem
Key 11 Horizon # _C20-101 Description Gasket Slv 29/32Idx 1-7/32Od X 1/32 Price Qty RecItem
Key 12 Horizon # _C105-224DE Description Impeller, Pentair, Centrifugal Pump Brass, 5hp Price Qty RecItem
Key 12 Horizon # _C105-224DF Description Imp Asy Silicon Price Qty RecItem
Key 12 Horizon # Discontinued Description Imp Asy Silicon Price Qty RecItem
Key 13 Horizon # _C20-100 Description Gasket, Impeller 27/32Idx1-1/80D X3/64 Price Qty RecItem
Key 14 Horizon # _C43-45SS Description Washer, Impeller 13/32Id X1-1/8Od X 1/8 Price Qty RecItem
Key 15 Horizon # _C43-46 Description Stat-O-Seal Wshr 600-0101 3/8 Parker Price Qty RecItem
Key 16 Horizon # 35-102-1536 Description Bolt, Pentair Sta-Rite, 3/8-16 x 3/4" Price Qty RecItem View recommended items
Key 17 Horizon # Discontinued Description Wear Rng 5Hp Pool Pmp Price Qty RecItem
Key 18 Horizon # _C101-167 Description Vlt Asy Price Qty RecItem
Key 18 Horizon # _C101-167D Description Vlt Asy Price Qty RecItem
Key 20 Horizon # _U78-941ZPV Description Pipe Plg 1/4" Npt Hex Hd Price Qty RecItem
Key 21 Horizon # Discontinued Description Stud, Pentair Sta-Rite, 3/8-16 x 1-1/4" Price Qty RecItem View recommended items
Key 22 Horizon # Discontinued Description Nut, Pentair Sta-Rite DEP/HRPB, 3/8-16 Price Qty RecItem
Key 22 Horizon # 35-102-3094 Description Nut, Pentair Purex Whisperflo/IntelliFlo, 3/8-16, NP Price Qty RecItem View recommended items
Key 22 Horizon # 35-110-2064 Description Nut, Pentair Purex Whisperflo/IntelliFlo, 3/8-16 Price Qty RecItem View recommended items
Key 23 Horizon # Discontinued Description Pipe Plg 1/4" Sq Hd W/Lo Price Qty RecItem
