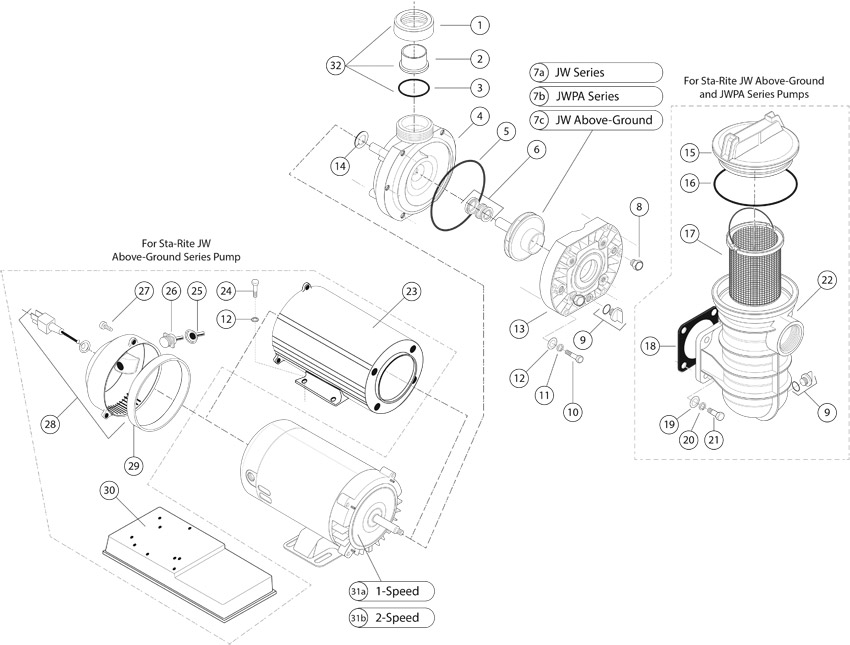

Pentair Sta-Rite JW/JW Above-Ground/JWPA Series Pump

Product Description  ·  Parts  ·  Trap Assembly: For JW Above-Ground and JWPA Series  ·  Motor Assembly: For JW Above-Ground Series  ·  1-Speed Motors  ·  2-Speed Motors  ·  Tools
Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View

Parts

Key Horizon # Description Qty
Key 1 Horizon # Discontinued Description Pump Union, Pentair Sta-Rite, Nut Price Qty RecItem View recommended items
Key 2 Horizon # 89-102-1009 Description Union Adapter, Sta-Rite, JW, JWPA Price Qty RecItem View recommended items
Key 2 Horizon # Discontinued Description Pump Union, Adapter, 1-1/2" Slip Price Qty RecItem View recommended items
Key 3 Horizon # 35-102-1367 Description O-Ring, Pentair Sta-Rite, Union/Diffuser, O-49 Price Qty RecItem View recommended items
Key 3 Horizon # 90-423-5226 Description O-Ring, 1-15/16" ID, 1/8" Cross Section, Generic Price Qty RecItem View recommended items
Key 4 Horizon # Discontinued Description Volute, Pentair Sta-Rite JW, JWPA Price Qty RecItem View recommended items
Key 5 Horizon # 35-102-1642 Description O-Ring, Pentair StaRite ABG, Seal Plate, O-336 Price Qty RecItem View recommended items
Key 5 Horizon # 90-423-5358 Description O-Ring, 5-5/8" ID, 3/16" Cross Section, Generic Price Qty RecItem View recommended items
Key 6 Horizon # 35-102-1406 Description Shaft Seal, Pentair, 3/4" Shaft, Buna Price Qty RecItem View recommended items
Key 6 Horizon # 35-423-1042 Description Shaft Seal, PS-851, 3/4" Shaft, Buna Price Qty RecItem View recommended items
Key 7a Horizon # Discontinued Description Impeller, Pentair Sta-Rite DuraJet JS, 1.5 Horsepower Price Qty RecItem View recommended items
Key 7a Horizon # 35-102-1578 Description Impeller, Pentair Sta-Rite JWPA, 0.75 Horsepower Price Qty RecItem View recommended items
Key 7a Horizon # 35-102-1591 Description Impeller, Pentair Sta-Rite JW JS Series, 1.0 Horsepower Price Qty RecItem View recommended items
Key 7b Horizon # 35-102-1576 Description Impeller, Pentair Sta-Rite JWPA, 0.5 Horsepower Price Qty RecItem View recommended items
Key 7b Horizon # 35-102-1578 Description Impeller, Pentair Sta-Rite JWPA, 0.75 Horsepower Price Qty RecItem View recommended items
Key 7b Horizon # 35-102-1580 Description Impeller, Pentair Sta-Rite JWPA, 1.0-1.5 Horsepower Price Qty RecItem View recommended items
Key 7c Horizon # Discontinued Description Impeller, Pentair Sta-Rite JW, 0.5 Horsepower Price Qty RecItem View recommended items
Key 7c Horizon # Discontinued Description Impeller, Pentair Sta-Rite JW, 0.75 Horsepower Price Qty RecItem View recommended items
Key 7c Horizon # 35-102-1624 Description Impeller, Pentair Sta-Rite JW JWP Series, 1.0 Horsepower Price Qty RecItem View recommended items
Key 7c Horizon # 35-102-1628 Description Impeller, Pentair Sta-Rite JW, 1.5 Horsepower Price Qty RecItem View recommended items
Key 8 Horizon # 35-102-1329 Description Plug, Pentair Sta-Rite, 1/4" Male Pipe Thread Price Qty RecItem View recommended items
Key 9 Horizon # Discontinued Description Drain Plug, Pentair Sta-Rite, 1/4"mpt, with O-Ring Price Qty RecItem View recommended items
Key 10 Horizon # 35-102-1586 Description Bolt, Pentair Sta-Rite, 1/4-20 x 1-3/4" Price Qty RecItem View recommended items
Key 10 Horizon # 35-102-1588 Description Bolt, Pentair Sta-Rite J with JWPA Seal Plate Price Qty RecItem View recommended items
Key 11 Horizon # Discontinued Description Lock Washer, Pentair Sta-Rite, 1/4" Price Qty RecItem
Key 12 Horizon # Discontinued Description Washer, Pentair Sta-Rite, 1/4" Price Qty RecItem
Key 13 Horizon # _C101-272PS Description Frnt Plt Asy W/Floating Eye Seal Jwp Price Qty RecItem
Key 13 Horizon # Discontinued Description Seal Plate, Pentair Sta-Rite JS, JW, JT Price Qty RecItem View recommended items
Key 13 Horizon # 35-102-1582 Description Seal Plate, Pentair Sta-Rite JW, JWPA Price Qty RecItem View recommended items
Key 14 Horizon # 35-102-1010 Description Water Slinger, Pentair Sta-Rite, Black Price Qty RecItem View recommended items
Key 14 Horizon # Discontinued Description Water Slinger, Pentair Sta-Rite JS, JW, JT Price Qty RecItem View recommended items

Trap Assembly: For JW Above-Ground and JWPA Series

Key Horizon # Description Qty
Key 15 Horizon # 35-102-1374 Description Trap Lid, Pentair Sta-Rite DuraGlas, 5" Trap Price Qty RecItem View recommended items
Key 15 Horizon # 35-102-1375 Description Trap Lid, Pentair StaRite DuraGlas, 5" Trap,Biguanide Resist Price Qty RecItem View recommended items
Key 15 Horizon # Discontinued Description Trap Lid, Wedge-It, Universal Price Qty RecItem View recommended items
Key 15 Horizon # 35-605-1204 Description Trap Lid, Sta-Rite, DuraGlas, 5" Trap, Generic Price Qty RecItem View recommended items
Key 16 Horizon # 90-423-5436 Description O-Ring, Buna-N, 5-7/8" ID, 1/4" Cross Section, Generic Price Qty RecItem View recommended items
Key 17 Horizon # 35-102-1377 Description Basket, Pump, OEM Sta-Rite CFA JW JWPA DuraGlas MaxEGlas Price Qty RecItem View recommended items
Key 17 Horizon # 35-102-3058 Description Basket, Pump, OEM Sta-Rite CFA JW JWPA DuraGlas MaxEGlas Price Qty RecItem
Key 17 Horizon # 35-605-1102 Description Basket, Pump, Generic Sta-Rite CFA DuraGlas MaxEGlas Price Qty RecItem View recommended items
Key 18 Horizon # 35-102-1380 Description Gasket, Pentair, Trap Body to Volute, 3-1/8"ID, 4-1/2"OD Price Qty RecItem View recommended items
Key 18 Horizon # 90-423-2098 Description Gasket, Pot to Volute,StaRite Dura-Glas,G-99R,Thick,Generic Price Qty RecItem View recommended items
Key 18 Horizon # 90-423-2099 Description Gasket, Pot to Volute,StaRite Dura-Glas,G-099RS,Thin,Generic Price Qty RecItem View recommended items
Key 19 Horizon # 35-102-1174 Description Washer, Pentair Sta-Rite, 5/16" Price Qty RecItem View recommended items
Key 19 Horizon # 35-102-3056 Description Washer, Pentair Sta-Rite, 5/16" Price Qty RecItem View recommended items
Key 20 Horizon # 35-102-1382 Description Lock Washer, Pentair Sta-Rite, 5/16" Price Qty RecItem View recommended items
Key 21 Horizon # 35-102-1381 Description Bolt, Pentair Sta-Rite, 5/16-18 x 1-1/4" Price Qty RecItem View recommended items
Key 22 Horizon # 35-102-1379 Description Trap Body, Pentair Sta-Rite DuraGlas, 5" Trap Price Qty RecItem View recommended items

Motor Assembly: For JW Above-Ground Series

Key Horizon # Description Qty
Key 23 Horizon # Discontinued Description Motor Cover, Pentair Sta-Rite JW, ABG Price Qty RecItem View recommended items
Key 24 Horizon # 35-102-1632 Description Bolt, Pentair Sta-Rite, 1/4-20 x 3/4" Price Qty RecItem View recommended items
Key 25 Horizon # 35-102-1610 Description Seal, Pentair Sta-Rite JW, ABG, for Toggle Switch Price Qty RecItem View recommended items
Key 26 Horizon # 35-102-1608 Description Toggle Switch, Pentair Sta-Rite J with ABG, 1 Speed Price Qty RecItem View recommended items
Key 26 Horizon # 35-102-1609 Description Toggle Switch, Pentair Sta-Rite JW, 2 Speed Price Qty RecItem View recommended items
Key 27 Horizon # Discontinued Description Screw, Pentair Sta-Rite JW, ABG, End Cap Price Qty RecItem View recommended items
Key 27 Horizon # 35-102-1601 Description Screw, Pentair Sta-Rite JW, Hex Head, Self-Tapping Price Qty RecItem View recommended items
Key 28 Horizon # 35-102-1602 Description End Cap, Pentair Sta-Rite JW, ABG, with Cord Price Qty RecItem View recommended items
Key 28 Horizon # Discontinued Description End Cap, Pentair Sta-Rite JW, with Cord Price Qty RecItem View recommended items
Key 28 Horizon # Discontinued Description End Cap, Pentair Sta-Rite JW, with Cord Price Qty RecItem View recommended items
Key 29 Horizon # Discontinued Description Baffle Ring, Pentair Sta-Rite JW, ABG Price Qty RecItem View recommended items
Key 30 Horizon # Discontinued Description Pump Stand, Pentair Sta-Rite JW Price Qty RecItem View recommended items
Key 30 Horizon # 35-102-1631 Description Pump Stand, Pentair Sta-Rite JWP/Dynamo/Optiflo Price Qty RecItem View recommended items

1-Speed Motors

Key Horizon # Description Qty
Key 31a Horizon # 35-126-1005 Description Motor, Century, 0.75 Horsepower, 115v, 1 Speed, 48 Frame Price Qty RecItem View recommended items
Key 31a Horizon # Discontinued Description Motor, Century/WW, 0.75hp, 115v, 1-Speed, 48YFr, 60Hz Price Qty RecItem View recommended items
Key 31a Horizon # 35-126-1010 Description Motor, Century, 1.0 Horsepower, 115v, 1 Speed, 48 Frame Price Qty RecItem View recommended items
Key 31a Horizon # Discontinued Description Motor, Century/WW, 1.0SPL, 115v, 1-Speed, 48 Frame Price Qty RecItem View recommended items
Key 31a Horizon # Discontinued Description Motor, Century, 1.5 Horsepower, 115v, 1 Speed, 48 Frame Price Qty RecItem View recommended items
Key 31a Horizon # 35-126-1020 Description Motor, Century, 1.5 Horsepower, 115v/230v, 1 Speed, 48 Frame Price Qty RecItem View recommended items
Key 31a Horizon # Discontinued Description Motor, Century/WW, 1.5hp, 115v/230v, 1-Speed, 48 Frame Price Qty RecItem View recommended items
Key 31a Horizon # Discontinued Description Motor, US Motor/WW, 0.75 SPL, 115v, 1-Speed, 48 Frame Price Qty RecItem View recommended items
Key 31a Horizon # Discontinued Description Motor, US Motor/WW, 1.0SPL, 115v, 1-Speed, 48 Frame Price Qty RecItem View recommended items

2-Speed Motors

Key Horizon # Description Qty
Key 31b Horizon # 35-126-1105 Description Motor, Century, 0.75 Horsepower, 115v, 2 Speed, 48 Frame Price Qty RecItem View recommended items
Key 31b Horizon # Discontinued Description Motor, Century/WW, 0.75hp, 115v, 2-Speed, 48 Frame Price Qty RecItem View recommended items
Key 31b Horizon # 35-126-1110 Description Motor, Century, 1.0 Horsepower, 115v, 2 Speed, 48 Frame Price Qty RecItem View recommended items
Key 31b Horizon # Discontinued Description Motor, Century/WW, 1.0hp, 115v, 2-Speed, 48 Frame Price Qty RecItem View recommended items
Key 31b Horizon # 35-126-1115 Description Motor, Century, 1.5 Horsepower, 115v, 2 Speed, 48 Frame Price Qty RecItem View recommended items
Key 31b Horizon # Discontinued Description Motor, Century/WW, 1.5hp, 115v, 2-Speed, 48 Frame Price Qty RecItem View recommended items
Key 31b Horizon # 35-126-1116 Description Motor, Century, 1.5 Horsepower, 230v, 2 Speed, 48 Frame Price Qty RecItem View recommended items
Key 31b Horizon # Discontinued Description Motor, Century/WW, 1.5hp, 230v, 2-Speed, 48 Frame Price Qty RecItem View recommended items
Key 31b Horizon # Discontinued Description Motor, US Motor/WW, 1.0SPL, 115v, 2-Speed, 48 Frame Price Qty RecItem View recommended items
Key 31b Horizon # Discontinued Description Motor, US Motor/WW, 1.5SPL, 115v, 2 Speed, 48 Frame Price Qty RecItem View recommended items

Tools

Key Horizon # Description Qty
Key Horizon # 99-615-1000 Description Tool, Klorkinator, Lid/Cover Removal Tool Price Qty RecItem View recommended items
