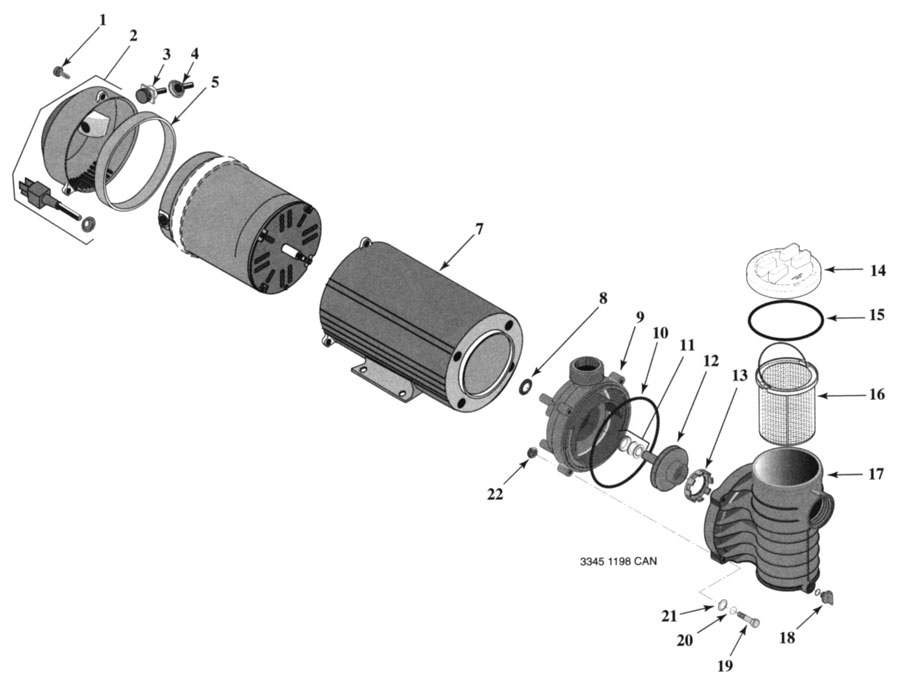

Home  >  Exploded Diagrams  >  Exploded Diagrams  >  Pumps  >  34-102-W001

StaRite ABG Series Above Ground Pump

Product Description  ·  Parts
Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View

Product Description

Note:

-Key #17 - Includes trap body, basket, lid and lid o-ring

Parts

Key Horizon # Description Qty
Key 1 Horizon # Discontinued Description Screw, Pentair Sta-Rite JW, ABG, End Cap Price Qty RecItem View recommended items
Key 2 Horizon # 35-102-1602 Description End Cap, Pentair Sta-Rite JW, ABG, with Cord Price Qty RecItem View recommended items
Key 3 Horizon # 35-102-1608 Description Toggle Switch, Pentair Sta-Rite J with ABG, 1 Speed Price Qty RecItem View recommended items
Key 4 Horizon # 35-102-1610 Description Seal, Pentair Sta-Rite JW, ABG, for Toggle Switch Price Qty RecItem View recommended items
Key 5 Horizon # Discontinued Description Baffle Ring, Pentair Sta-Rite JW, ABG Price Qty RecItem View recommended items
Key 7 Horizon # Discontinued Description Motor Cover, Pentair Sta-Rite JW, ABG Price Qty RecItem View recommended items
Key 8 Horizon # 35-102-1010 Description Water Slinger, Pentair Sta-Rite, Black Price Qty RecItem View recommended items
Key 9 Horizon # Discontinued Description Volute, Pentair Sta-Rite ABG Price Qty RecItem View recommended items
Key 10 Horizon # 90-423-5358 Description O-Ring, 5-5/8" ID, 3/16" Cross Section, Generic Price Qty RecItem View recommended items
Key 11 Horizon # 35-102-1406 Description Shaft Seal, Pentair, 3/4" Shaft, Buna Price Qty RecItem View recommended items
Key 11 Horizon # 35-423-1042 Description Shaft Seal, PS-851, 3/4" Shaft, Buna Price Qty RecItem View recommended items
Key 12 Horizon # Discontinued Description Impeller, Pentair Sta-Rite ABG, 0.5 Horsepower Price Qty RecItem View recommended items
Key 12 Horizon # 35-102-1646 Description Impeller, Pentair Sta-Rite ABG, 0.75 Horsepower Price Qty RecItem View recommended items
Key 12 Horizon # Discontinued Description Impeller, Pentair Sta-Rite ABG, 1.0 Horsepower Price Qty RecItem View recommended items
Key 12 Horizon # 35-102-1650 Description Impeller, Pentair Sta-Rite ABG, 1.5 Horsepower Price Qty RecItem View recommended items
Key 13 Horizon # 35-102-1652 Description Wear Ring, Pentair Sta-Rite ABG Price Qty RecItem View recommended items
Key 14 Horizon # 35-102-1654 Description Trap Lid, Pentair Sta-Rite ABG Price Qty RecItem View recommended items
Key 15 Horizon # 90-423-5345 Description O-Ring, Buna-N, 4' ID, 3/16" Cross Section, Generic Price Qty RecItem View recommended items
Key 16 Horizon # 35-102-1658 Description Basket, Pump, OEM Sta-Rite/Pentair ABG Series Price Qty RecItem View recommended items
Key 17 Horizon # 35-102-1660 Description Trap Body, Pentair Sta-Rite ABG, with Trap Lid Price Qty RecItem View recommended items
Key 18 Horizon # Discontinued Description Drain Plug, Pentair Sta-Rite, 1/4"mpt, with O-Ring Price Qty RecItem View recommended items
Key 19 Horizon # 35-102-1586 Description Bolt, Pentair Sta-Rite, 1/4-20 x 1-3/4" Price Qty RecItem View recommended items
Key 20 Horizon # Discontinued Description Lock Washer, Pentair Sta-Rite, 1/4" Price Qty RecItem
Key 21 Horizon # Discontinued Description Washer, Pentair Sta-Rite, 1/4" Price Qty RecItem
Key 22 Horizon # 35-102-1462 Description Nut, Pentair Sta-Rite, 1/4-20 Price Qty RecItem View recommended items
