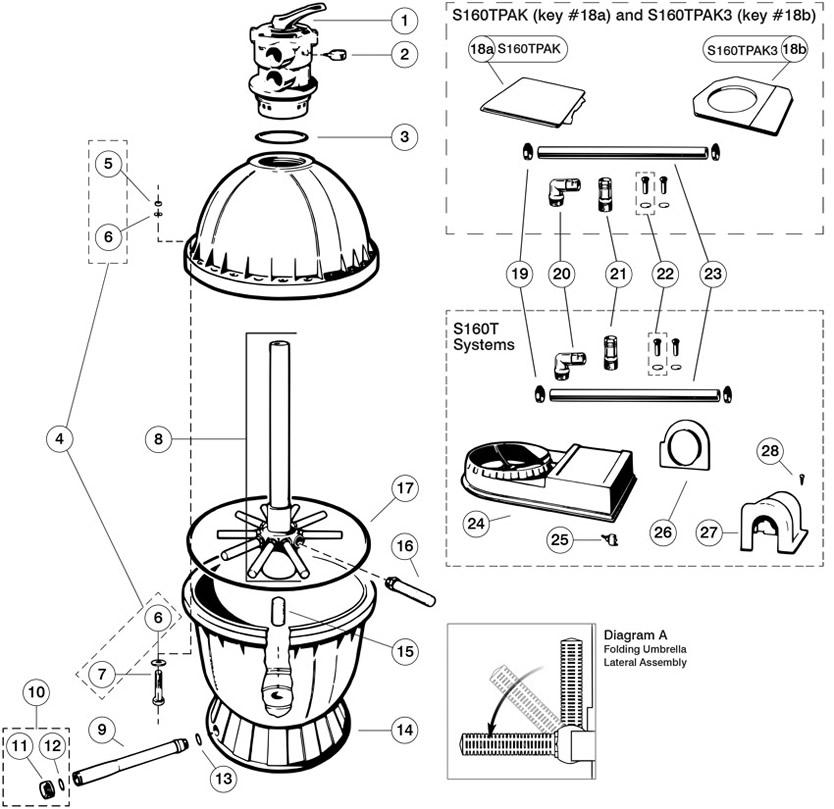

Sand Filter, Hayward, S160T

Product Description  ·  Parts  ·  S160TPAK1 and PAK 3  ·  S160T Systems  ·  Not Pictured
Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View

Parts

Key Horizon # Description Qty
Key 1 Horizon # Discontinued Description Multiport Valve, Hayward SP0721, 1-1/2"bt, 6 Position Price Qty RecItem View recommended items
Key 2 Horizon # 17-150-1380 Description Pressure Gauge, Hayward, 1/4"mpt, 0-60psi, Bottom Mount Price Qty RecItem View recommended items
Key 3 Horizon # 31-150-1200 Description O-Ring, Hayward S160T/S220, Valve to Lid, O-284 Price Qty RecItem View recommended items
Key 3 Horizon # 90-423-5363 Description O-Ring, 6-1/2" ID, 3/16" Cross Section, Generic Price Qty RecItem View recommended items
Key 4 Horizon # 31-150-1484 Description Bolt Set, Hayward S160T/S200/S240/EC65/EC75, Stainless Steel Price Qty RecItem View recommended items
Key 5 Horizon # 14-150-1064 Description Tank Lid Screw Kit, Hayward Perflex EC/S160T/S220 Price Qty RecItem View recommended items
Key 6 Horizon # 14-150-1028 Description Flat Washer, Hayward Perflex, 1/4" id x 1-1/16" od Price Qty RecItem View recommended items
Key 6 Horizon # Discontinued Description Flat Washer, Hayward Perflex EC65/S160T/S220, 1/4" Price Qty RecItem View recommended items
Key 7 Horizon # 14-150-1124 Description Bolt, Hayward Perflex EC65/75/S160T/S220, 1/4"-20 x 1-3/4" Price Qty RecItem View recommended items
Key 8 Horizon # 31-150-1202 Description Center Pipe Assembly, Hayward S245T, with Laterals Price Qty RecItem View recommended items
Key 9 Horizon # 31-150-1122 Description Drain Pipe Assembly, Hayward S160T/S220/S245T Price Qty RecItem View recommended items
Key 10 Horizon # 31-150-1508 Description Drain Cap, Hayward S220, with O-Ring Price Qty RecItem View recommended items
Key 11 Horizon # 31-150-1128 Description Gasket, Hayward, Drain Plug, 1/2"ID, 1"OD Price Qty RecItem View recommended items
Key 12 Horizon # 31-150-1208 Description Drain Cap, Hayward S160T/S220/S245T/C400 Price Qty RecItem
Key 13 Horizon # 17-150-1386 Description O-Ring, Hayward StarClear/MicroClear, Air Relief, O-27 Price Qty RecItem View recommended items
Key 13 Horizon # 31-150-1124 Description O-Ring, Hayward S160T/S220/S245T, Drain Pipe, O-363 Price Qty RecItem View recommended items
Key 13 Horizon # 90-423-7114 Description O-Ring, 5/8" ID, 3/32" Cross Section, Generic Price Qty RecItem View recommended items
Key 13 Horizon # 90-423-7117 Description O-Ring, 13/16" ID,3/32" Cross Section, Generic Price Qty RecItem View recommended items
Key 14 Horizon # 31-150-1130 Description Tank Base, Hayward S160T/S180T/S210S/S310T/S220/S245T Price Qty RecItem View recommended items
Key 15 Horizon # 31-150-1206 Description Drain Screen, Hayward S160T/S220 Price Qty RecItem View recommended items
Key 16 Horizon # 31-150-1103 Description Lateral, Hayward S180T, Threaded Price Qty RecItem View recommended items
Key 16 Horizon # 31-150-1104 Description Lat,Hayward GM152/S160T/S164T/S180T/S210S/S220/S245T,10 Pk Price Qty RecItem View recommended items
Key 16 Horizon # Discontinued Description Lateral, Hayward S180T/S210S/S220T/S230/S245T, Ball Pivot Price Qty RecItem View recommended items
Key 16 Horizon # 31-150-1140 Description Lateral, Hayward S180T/S200/S210S, Ball Pivot Style, Qty 10 Price Qty RecItem
Key 17 Horizon # 31-150-1204 Description O-Ring, Hayward S160T, Tank Body, O-339 Price Qty RecItem View recommended items
Key 17 Horizon # 90-423-1339 Description O-Ring, 17-3/16" ID, 5/16" Cross Section, Gen, O-339 Price Qty RecItem View recommended items

S160TPAK1 and PAK 3

Key Horizon # Description Qty
Key 18a Horizon # Discontinued Description Mounting Pad, Hayward S160T/S220 Price Qty RecItem View recommended items
Key 18b Horizon # 31-150-1149 Description Tank Base, Hayward S160TPAK1/S160TPAK3 Price Qty RecItem View recommended items
Key 19 Horizon # 14-150-1138 Description Tubing Clamp, Hayward EC60/S160T/S164T/S220/S245T, 1-1/2"od Price Qty RecItem View recommended items
Key 20 Horizon # 14-150-1140 Description Elbow, Hayward, 1-1/2" Male Pipe Thread x 1-1/2" Barb Price Qty RecItem View recommended items
Key 22 Horizon # 31-150-1160 Description Screw Kit, Hayward ASL/S160T/S210S/S220/S245T, Quantity 2 Price Qty RecItem View recommended items
Key 23 Horizon # 31-150-1126 Description Vinyl Hose, Hayward S160T/S245T Price Qty RecItem View recommended items
Key 23 Horizon # 31-150-1172 Description Vinyl Hose, Hayward S160T/S245T, 31" Price Qty RecItem View recommended items
Key 23 Horizon # 31-150-1212 Description Vinyl Hose, Hayward S160T, 26" Price Qty RecItem View recommended items

S160T Systems

Key Horizon # Description Qty
Key 21 Horizon # Discontinued Description Hose Adapter, Hayward S160T/S164T/S220/S245T, 1-1/2" Price Qty RecItem View recommended items
Key 21 Horizon # 31-150-1154 Description Hose Adapter, 2 Pack, Hayward S160T/S164T/S220/S245T, 1-1/2" Price Qty RecItem View recommended items
Key 24 Horizon # Discontinued Description Tank Base, Hayward S160T/S190T Price Qty RecItem
Key 25 Horizon # Discontinued Description Switch, Hayward C100/S160T Price Qty RecItem View recommended items
Key 26 Horizon # Discontinued Description Baffle, Hayward S160T Price Qty RecItem
Key 27 Horizon # Discontinued Description Rainshield, Hayward C100/S160T Price Qty RecItem
Key 28 Horizon # Discontinued Description Tank Lid Screw, Hayward Perflex EC60 Price Qty RecItem

Not Pictured

Key Horizon # Description Qty
Key Horizon # Discontinued Description Cord, Hayward C100/S160T, 16/3, 6 foot Price Qty RecItem
Key Horizon # 31-150-1224 Description Cord, Hayward C100/S160T, 14/3, 6 foot Price Qty RecItem View recommended items
