Home  >  Pumps  >  Pumps  >  Bath Pumps

Pump, Bath, Waterway Genesis, 7.5A, 115v, 1-1/2", OEM, AS

Pump, Bath, Waterway Genesis, 7.5A, 115v, 1-1/2", OEM, AS 34-270-2002

Multiple Views:

main 1-reverse 2-manlabel 3-mfulabel

Horizon # 34-270-2002

Looking for alternate/substitute items, identical information, stock status and pricing? Log in now to access to all this information and more!

Quantity:
+ Backorder Now
X Cart Updated

Ordering Options:

  Add
  Add
All dates are the manufacturer's best estimate. Dates are not guaranteed.
Cancel + Add


Detailed Product Info

Back To Top ^

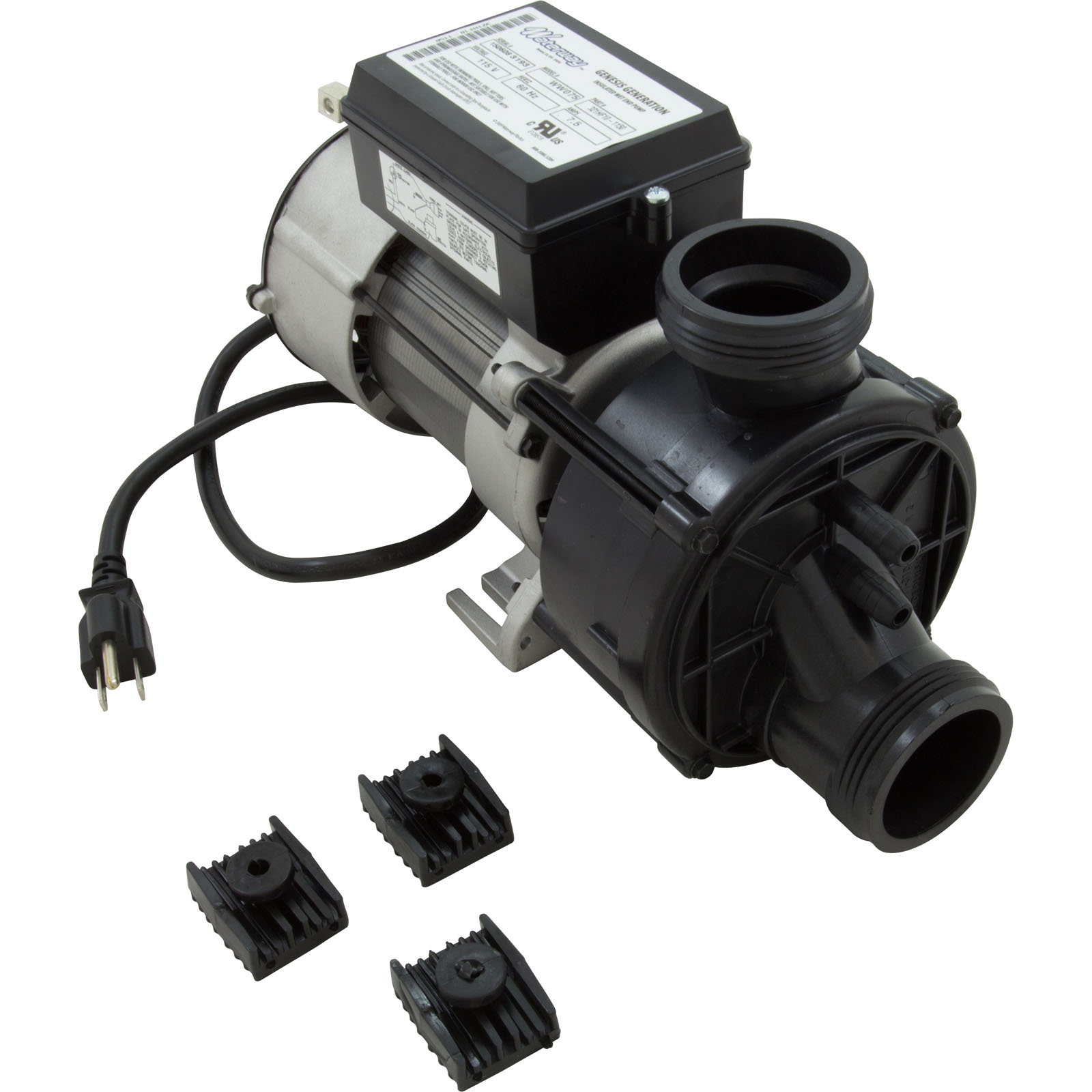

Waterway Genesis Generation Energy Efficient Bath Pump 115 Volts w/Air Switch

Spa Pump Features:
  • Center Discharge
  • 1-1/2" intake and discharge
  • 3' NEMA power cord
  • Single Speed, 3450 RPM, 60 hz
  • Dimensions: (H x W x L) 7-1/4" x 5-3/8" x 12-1/2"

    Note: This pump is equipped with an air switch. If the motor does not start upon plugging it in, the switch may be in the off position.

    California Residents WARNING: Cancer and Reproductive Harm

      www.P65Warnings.ca.gov

Search Using These Specs Partsology ©
Manufacturer Waterway
Pump Model Genesis
Speed 1 Speed (1-Spd)
Motor Voltage 115v
Drain Plug Location None
Suction Style Bottom
Suction Connection Type Male Buttress Thread (mbt)
Suction Pipe Size 1-1/2"
Discharge Style Center
Discharge Connection Type Male Buttress Thread (mbt)
Discharge Pipe Size 1-1/2"
Motor Amperage/Wattage 7.5A
There are two barbed fittings on the face of the pump for small lines, these come from the factory plugged. If needed, they can be drilled out easily.

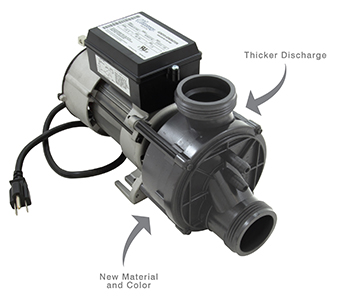

Waterway has made improvements to the Genesis Bath Pump:
  1. The discharge wall thickness of the volute has been made thicker to allow for greater consistencies in the molding process and to increase strength.
  2. Changed to a new highly engineered glass reinforced co-polymer material. This new material will be made in gray so that it is easily distinguishable from the older material. (This is the same material being used in our high-end pool pumps and filters).

34-270-2100 Wet End, Waterway Genesis, 1-1/2"mbt, 7.5A
